Description

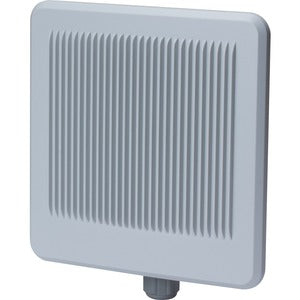

On-Q XWO-BAP1 IEEE 802.11ac 1.17 Gbit/s Wireless Bridge
The On-Q XWO-BAP1 is a rugged, outdoor wireless bridge designed to extend your network to remote locations with far-reaching reliability. Built for harsh environments and demanding deployments, this device enables you to link two or more Wireless Outdoor Bridging APs to provide seamless connectivity to outbuildings, guest houses, or distant IP cameras. With true dual-band 802.11ac performance and elevated output power, the XWO-BAP1 delivers robust throughput, stable connections, and flexible deployment options for both residential and commercial installations.
- Long-range, point-to-point and point-to-multipoint capability: Ideal for connecting distant buildings, garages, or satellite structures, the XWO-BAP1 supports outdoor bridging use cases that keep core networks centralized while extending reach where it’s needed most.
- Dual-band 802.11ac performance: Experience high-throughput wireless links with simultaneous 2.4 GHz and 5 GHz operation, allowing you to optimize for range or speed based on site conditions and interference patterns.
- Rugged IP-65 enclosure: Built to withstand rain, dust, and temperature variations, ensuring reliable operation in diverse outdoor environments without compromising performance.
- High output power for stronger links: The XWO-BAP1 is engineered to maximize signal strength, helping maintain stable connections across challenging terrain and through obstacles that would degrade lesser devices.
- Easy deployment for cameras and devices: Perfect for linking IP cameras, sensors, doorbell systems, and other campus or home-network devices in remote locations, with a design focused on quick setup and reliable operation.
Technical Details of On-Q XWO-BAP1
- Wireless standard: IEEE 802.11ac dual-band wireless bridge designed for outdoor use, delivering high-throughput connectivity between bridging APs.
- Max data rate: Theoretical peak data rate up to 1.17 Gbit/s, enabling fast uplinks and downlinks for video, sensors, and other bandwidth-intensive devices in remote sites.
- Frequency bands: Dual-band operation spanning 2.4 GHz and 5 GHz, with the ability to select the best band for a given link to balance interference avoidance and reach.
- Enclosure rating: IP-65 rated rugged housing suitable for outdoor mounting and exposure to the elements, rain, dust, and temperature swings.
- Power and mounting: Designed for outdoor installations with straightforward mounting options and compatibility with Power over Ethernet (PoE) or external power sources to simplify deployment.
- Interfaces: Ethernet bridging port for network access, enabling seamless integration with the wired LAN of the primary site and the remote site equipment.
- Deployment scenarios: Optimized for point-to-point (P2P) and multipoint (PtMP) wireless bridging scenarios, making it suitable for connecting outbuildings, guest houses, or IP camera networks.
- Environmental considerations: Weatherproof components and design features aimed at maintaining performance in outdoor environments, with cooling considerations for sustained operation in warm climates.
- Security features: Standard wireless security options typical for enterprise-grade bridges, including encryption and authentication capable of being integrated into secure network topologies.
- Operating conditions: Engineered to perform across a range of outdoor temperatures and humidity levels, providing reliable service in diverse climates.
how to install On-Q XWO-BAP1
Installing the On-Q XWO-BAP1 is designed to be straightforward for professionals and capable DIY enthusiasts. The following steps outline a typical outdoor bridging deployment that maximizes performance and reliability:
- Plan your link: Assess line-of-sight between the primary and remote locations, noting potential obstructions, reflections, and interference from nearby wireless networks.
- Choose mounting locations: Select sturdy mounting points on exterior walls, poles, or racks with clear access to the sky and minimal vibration. Ensure the enclosure is oriented to optimize antenna performance and minimize exposure to direct water intrusion.
- Provide power and connectivity: Connect the device to Power over Ethernet (PoE) or an appropriate power supply as specified by the manufacturer. Confirm Ethernet cables are weather-rated for outdoor use and routed to protect against physical damage.
- Physical installation: Secure the XWO-BAP1 with weatherproof mounting hardware. Align the unit for the best signal path, ensuring a clean line of sight when possible and maintaining proper tilt and azimuth for stable reception.
- Initial configuration: Access the device’s web-based management interface via a computer connected to the same network. Set the wireless mode to bridge, select the appropriate bands, establish security settings, and configure IP addressing to integrate with the existing network.
- Link optimization: After basic configuration, perform calibration by adjusting transmit power, channel, and antenna alignment to maximize throughput and minimize interference. Run throughput tests to verify the stability of the link under typical operating conditions.
- Testing and validation: Verify connectivity by pinging devices across the bridge, checking IP camera streams or other critical endpoints, and confirming that remote devices can communicate with the primary network without latency spikes or packet loss.
- Documentation and maintenance: Record network settings, firmware version, and a schematic of the deployed links for future maintenance. Schedule firmware updates and periodic checks to preserve performance and security.
Frequently asked questions
-
Q: What makes the On-Q XWO-BAP1 suitable for outdoor bridging?
A: Its rugged IP-65 enclosure, dual-band 802.11ac support, and high output power are designed to maintain strong, reliable connections between distant buildings and devices in challenging outdoor environments. -
Q: Can the XWO-BAP1 support multiple remote locations?
A: Yes, the device is intended for point-to-point and point-to-multipoint bridging configurations, enabling connections to outbuildings, guest houses, and IP camera networks in a campus or residential setting. -
Q: How do I power the device in an outdoor installation?
A: The XWO-BAP1 is designed for flexible power options, commonly supporting PoE for convenient outdoor installation, with alternate power sources available as needed for your site. -
Q: What kind of data rate can I expect in real-world use?
A: Real-world performance depends on distance, interference, and line-of-sight quality. The device is capable of high-throughput links up to 1.17 Gbit/s in ideal conditions, making it suitable for high-bandwidth applications like IP camera feeds and multi-device networks. -
Q: How do I optimize performance after installation?
A: Focus on solid line-of-sight, correct antenna alignment, appropriate channel selection to minimize interference, and ensuring security settings are properly configured. Regular firmware updates can also improve stability and security.
