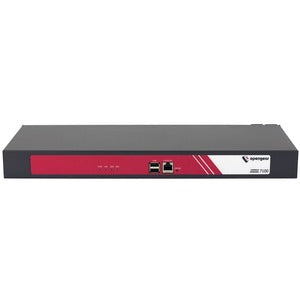

Opengear CM7100 Series - Console Server

The Opengear CM7100 Series Console Server is the ultimate solution for out-of-band management, designed to streamline network administration and enhance the reliability of your data center and remote site infrastructure. With its robust feature set, the CM7100 empowers IT professionals to monitor, diagnose, and remediate issues efficiently, ensuring maximum uptime and optimal performance across all devices.

• Comprehensive Out-of-Band Management: The CM7100 series supports 16-96 serial ports, allowing for seamless management of network and server devices through simple straight-through cabling to Cisco®-style serial consoles.
• Redundant Power and Connectivity: Equipped with dual Gigabit Ethernet ports and dual AC power supplies, the console server ensures built-in redundancy, enhancing the reliability of your infrastructure.
• Real-Time Monitoring and Alerts: The intuitive dashboard offers proactive alerting and real-time status updates, keeping network and IT administrators informed about the core infrastructure's condition.
• Advanced Environmental Monitoring: The CM7196A model features an embedded internal temperature sensor, providing critical insights into your environmental conditions for better management.
• Integration and Scalability: The Opengear CM7100 series supports integration with AAA protocols like Active Directory and TACACS+, allowing for user-specific access control, along with environmental monitoring capabilities through optional EMD5000 modules and third-party tools such as Nagios and SolarWinds.

Technical Details of the Opengear CM7100 Series

• Maximum Serial Ports: 16-96
• Power Supply: Dual AC power supplies
• Network Interfaces: Dual Gigabit Ethernet
• Storage: 4GB local storage for audit trail logging
• API Compatibility: Integrated RESTful API engine (firmware 4.0 or higher)
• Environmental Monitoring: Optional EMD5000 module
• Form Factor: 1 RU
• Protocol Support: Link Layer Discovery Protocol (LLDP)

How to Install the Opengear CM7100 Console Server

1. Unpack the Console Server: Carefully remove the Opengear CM7100 console server from its packaging and inspect for any visible damage.
2. Mount the Device: Install the console server in a standard 19-inch rack using the included rack mount ears and screws.
3. Connect Power: Connect both AC power supplies to the unit and plug into a reliable power source.
4. Link Serial Ports: Utilize straight-through cabling to connect the console server’s serial ports to the devices you wish to manage.
5. Network Connection: Connect the dual Gigabit Ethernet ports to your network infrastructure.
6. Configure Settings: Power on the device and access the web-based GUI or command line interface to configure the settings as per your network requirements.

Frequently Asked Questions

• What is out-of-band management? Out-of-band management refers to the ability to manage and monitor network devices independently of the main network, offering a secure and reliable way to access equipment during outages or failures.
• How many devices can the CM7100 manage? The Opengear CM7100 can manage between 16 to 96 serial devices depending on the specific model configuration.
• Can the CM7100 integrate with existing management tools? Yes, it supports integration with various network management tools and third-party software, enhancing its functionality within your existing infrastructure.
• Is the installation process complicated? No, the installation process is straightforward and involves standard rack mounting, power connection, and network setup.
• What type of support does Opengear provide? Opengear offers comprehensive technical support and documentation to assist in the setup and troubleshooting of their console servers.
