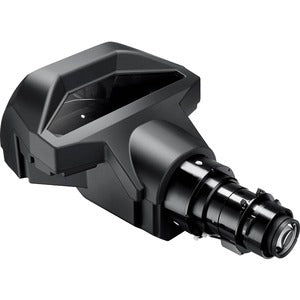

Optoma BX-A16 Ultra Short Throw Zoom Lens

The Optoma BX-A16 Ultra Short Throw Zoom Lens is engineered to maximize image brilliance and versatility for professional AV installations. Designed specifically for Optoma ProAV projectors, including the ZU650+, ZU850, ZU660, and ZU1050, this lens delivers an incredibly compact solution without compromising on brightness or image quality. With a precise 0.36 throw ratio, the BX-A16 makes it possible to achieve large, immersive displays from a fraction of the distance you’d typically need, which is essential for classrooms, meeting rooms, digital signage, control rooms, and venue spaces where space is at a premium. For installers who demand flexible placement and flawless edge-to-edge clarity, this ultra-short throw zoom lens is a dependable, high-performance choice that blends advanced optics with simple, streamlined operation.

• Ultra-short throw versatility: Achieve sizable images from tight spaces thanks to the 0.36 throw ratio, ideal for wall-to-screen installations, front-row seating clarity, and unobtrusive setups in constrained environments.
• Precise focal control: The BX-A16 covers a focal range of 9.49 mm to 9.55 mm with an f/2.4 aperture, delivering sharp edge-to-edge detail, consistent brightness, and high image fidelity across the screen.
• Seamless zoom capability: This zoom lens lets you adjust the projected image size without moving the projector, preserving sightlines and reducing the complexity of on-site wiring and mounting revisions.
• Professional-grade build for busy venues: Built to endure the demands of ProAV environments, maintaining stable image geometry and brightness even under continuous usage and challenging ambient conditions.
• Effortless integration with Optoma projectors: Specifically tuned to work with select Optoma models, enabling fast lens swaps and streamlined maintenance during installations or upgrades.

Technical Details of Optoma BX-A16

• Throw ratio: 0.36:1
• Focal length: 9.49 mm to 9.55 mm
• Aperture: f/2.4
• Lens type: Ultra Short Throw Zoom Lens
• Compatibility: Optoma ProAV projectors including ZU650+, ZU850, ZU660, ZU1050
• Focus and zoom control: Integrated lens controls for precise image tuning

How to install Optoma BX-A16

• Power down the projector and ensure the mounting area is clear of debris or obstructions before attempting any lens changes.
• Remove the existing lens according to the projector’s service manual, taking care to protect connectors and alignment guides.
• Align the BX-A16 with the projector’s lens mount, ensuring that locking pins and alignment tabs engage securely to prevent tilt or misalignment.
• Secure the lens with the mounting screws, then connect any required electrical/communication interfaces as specified by Optoma’s installation guide.
• Install the projector at the appropriate distance from the screen to achieve a 0.36 throw ratio, then use the lens’ zoom and focus controls to frame the image precisely. Make final adjustments to brightness, color balance, and keystone corrections as needed for a crisp, distortion-free image.

Frequently asked questions

• Q: What projectors is BX-A16 compatible with? A: The BX-A16 Ultra Short Throw Zoom Lens is designed for Optoma ProAV projectors such as the ZU650+, ZU850, ZU660, and ZU1050, delivering optimized performance for these models.
• Q: What is the throw ratio and why does it matter? A: The BX-A16 features a throw ratio of 0.36:1, which means a very short distance is needed between the projector and screen to produce a large image. This is ideal for small rooms, classrooms, and display environments where space is limited, enabling immersive visuals without crowding the room.
• Q: How does the focal range affect image quality? A: With a focal range of 9.49 mm to 9.55 mm and an aperture of f/2.4, the BX-A16 maintains sharp focus across the screen, delivering bright, detailed images with good contrast and minimal distortion at multiple throw distances.
• Q: Can I adjust the image without moving the projector? A: Yes. The BX-A16 is a zoom lens, allowing you to resize the projected image by adjusting the lens zoom control, which helps you adapt to screen sizes and seating layouts without relocating the projector.
• Q: Is installation complicated? A: The BX-A16 is designed for professional AV installations, with straightforward mounting and alignment procedures intended for qualified technicians. Following Optoma’s installation guide will ensure secure mounting, precise alignment, and optimal image quality.
