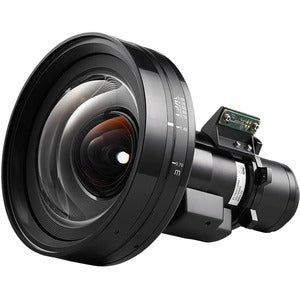

Optoma ProScene BX-CTA17f/2.1 - Short Throw Lens

OptomaSKU: 5964039

Price:
Sale price$4,279.17

Description

Meet the Optoma ProScene BX-CTA17f/2.1, the ultimate short throw lens engineered for professional Optoma ProAV projectors. Designed to maximize image size in tight spaces, this lens delivers crisp, vivid projections with reliable color fidelity across a range of environments—from high-traffic event venues to sophisticated control rooms. The BX-CTA17f/2.1 integrates seamlessly with Optoma’s ProAV projector lineup, including models like the ZU660, ZU750, ZU850, ZU860, and ZU1050, enabling installers to place projectors closer to the screen without compromising image quality. Whether you’re mounting in a ceiling cavity, a control booth, or a multi-purpose classroom, this lens helps you unlock dramatic large-screen visuals while maintaining precise alignment and brightness. With its robust build and industry-friendly specifications, the BX-CTA17f/2.1 is a dependable choice for systems that demand consistent performance, easy servicing, and minimal setup time.

  • Designed for tight spaces and large images: The BX-CTA17f/2.1 delivers exceptional short-throw capabilities, allowing you to achieve a generous screen size from shorter viewing distances. This makes it ideal for venues where wall space is at a premium or where mounting from the back of the room is impractical, ensuring a dominating visual presence without crowding the room.
  • Wide compatibility with Optoma ProAV projectors: Built to work flawlessly with Optoma ProAV projectors, including ZU660, ZU750, ZU850, ZU860, and ZU1050, the BX-CTA17f/2.1 enables streamlined integration into existing ProAV ecosystems. This compatibility helps reduce configuration time and ensures dependable overlap with your projector’s optical system.
  • Consistent image quality for professional environments: The optical design of this short throw lens is optimized for sharp edges, precise color reproduction, and stable brightness across a wide field. In corporate briefings, classrooms, and performance spaces, you’ll notice clearer text, crisper graphics, and faithful color rendering that remains reliable from edge to edge—even with varying ambient light.
  • Professional build for durable, long-term use: Engineered for frequent installation and maintenance cycles, the BX-CTA17f/2.1 features a rugged housing and precision alignment mechanisms. This makes it well suited for ceiling-mount installations, fixed staging setups, and environments where routine lens swaps or recalibrations are part of the operational routine.
  • Seamless integration with existing projection systems: The lens is designed to pair with standard Optoma ProAV lens assemblies, facilitating straightforward mounting, alignment, and calibration. Its plug-and-play potential helps technicians accelerate installations, reduce on-site adjustments, and deliver a consistent, high-quality presentation experience for end users.

Technical Details of Optoma ProScene BX-CTA17f/2.1

  • Model: BX-CTA17f/2.1
  • Product Type: Short Throw Projection Lens
  • Compatibility: Optoma ProAV projectors (ZU660, ZU750, ZU850, ZU860, ZU1050) and related ProAV lens mounts
  • Design Focus: Short-throw optical design optimized for large screen sizes in compact rooms
  • Material & Build: Durable housing engineered for professional installations and long-term use
  • Image Quality Attributes: Sharper edges, faithful color reproduction, and stable brightness across the projected image

How to install Optoma ProScene BX-CTA17f/2.1

  • Power down all equipment: Before beginning installation, turn off and unplug the projector and any related equipment. Disconnect power and ensure the workspace is safe for handling optics and mounting hardware.
  • Prepare the projector and lens mount: Access the projector’s lens mounting area per the manufacturer’s manual. Ensure you have the correct ProAV lens mount and mounting screws compatible with the BX-CTA17f/2.1.
  • Attach the lens to the projector: Carefully align the BX-CTA17f/2.1 with the projector’s lens mount. Secure the lens using the appropriate screws, taking care not to overtighten and to maintain proper alignment with the projector body.
  • Initial alignment and focus: Once mounted, power on the projector and perform a basic alignment. Use the projector’s menus or built-in alignment tools to center the image, verify keystone is within acceptable limits, and adjust focus for sharpness across the screen.
  • Fine-tuning and verification: Adjust throw distance as needed to achieve your target image size. Confirm uniform brightness and color fidelity across the screen, and re-check alignment after any environmental changes (room layout, screen position, or mounting shifts).

Frequently asked questions

  • What projectors is the BX-CTA17f/2.1 compatible with? It is designed for Optoma ProAV projectors, including the ZU660, ZU750, ZU850, ZU860, and ZU1050 series, and is intended to work with corresponding ProAV lens mounts.
  • What is a short throw lens, and why use one? A short throw lens enables a large projected image from a short distance to the screen. This is ideal for rooms with limited depth or for setups where projector placement must be close to the audience, reducing shadows, glare, and the need for long cable runs.
  • How do I install the BX-CTA17f/2.1? Installation involves mounting the lens to the projector’s lens mount, securing it with screws, powering on to perform alignment, and fine-tuning focus and image size using the projector’s built-in settings. Always follow the projector and lens manuals for precise steps and safety considerations.
  • Will this lens affect image brightness or color? Optical design aims to preserve brightness and color fidelity across the projected image. In real-world use, results depend on lamp brightness, screen material, ambient lighting, and projector calibration.
  • Do I need special tools or training to install this lens? Basic tools (such as a screwdriver appropriate to the mounting screws) and standard installation practices are usually sufficient. If you’re unfamiliar with ProAV lens mounting, consult a qualified technician or the installer’s guide for your projector model.
