Description

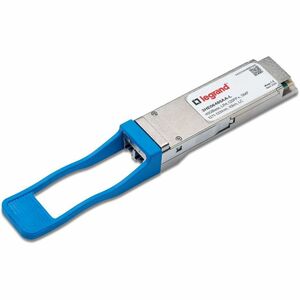

Ortronics Alcatel QSFP+ Module
The Ortronics Alcatel QSFP+ Module is a high-performance 40 Gigabit Ethernet transceiver designed to power today’s demanding optical networks. Built for data centers, campus backbones, and service-provider interconnects, this LR4-class QSFP+ transceiver delivers four parallel 10 Gb/s lanes over a single-mode fiber link, enabling scalable uplinks with impressive reach. Engineered for reliability and interoperability, it meets industry-standard QSFP+ form factors, ensuring seamless integration with a wide range of switches, routers, and servers. In-system tested across a broad ecosystem, this module offers confidence in deployment and predictable performance in multi-vendor environments. With a near-perfect reliability rate reported in field tests, it’s crafted to endure the rigors of round-the-clock operation in modern networks while maintaining pristine optical performance.
- 40GBASE-LR4 transceiver for high-density uplinks — Four 10 Gb/s lanes consolidate into a single 40 Gbps link, delivering outstanding bandwidth while preserving fiber infrastructure and rack space.
- Guaranteed compatibility and proven reliability — In-System tested in over 90 OEM switches, routers, and servers, with a 99.98% reliability rate for functional, optical, and environmental performance, reducing integration risk.
- Long-range single-mode fiber support — Ideal for data-center interconnects and campus networks with reach up to 10 km on standard SMF, enabling flexible topology designs and future-proof scalability.
- MSA-compliant QSFP+ form factor — Designed to meet industry-standard dimensions and electrical interfaces, ensuring hot-swappable installation, easy upgrading, and broad interoperability with leading hardware platforms.
- Robust, efficiency-minded design — Built to endure dense data-center conditions, with compact packaging and drive-downs in stack-and-rack deployments while delivering reliable optical performance across environmental variations.
Technical Details of Ortronics Alcatel QSFP+ Module
- Module Type: QSFP+ Optical Transceiver
- Data Rate: 40 Gbps (4 x 10 Gbps lanes)
- Optical Interface: LR4 (single-mode fiber) for long-reach applications
- Wavelength: 1310 nm (LR4 channels distributed across the band)
- Distance: Up to 10 km on standard SMF (OS1/OS2, depending on fiber and installation)
- Fiber Type: Single-Mode Optical Fiber (ITU-T G.652 compliant)
- Connector: LC duplex optical interface for fiber connections
- Standards: IEEE 802.3ba 40GBASE-LR4; QSFP+ MSA compliant
- Operating Temperature: Commercial class typically 0 to 70°C, suitable for data-center environments
- Power Consumption: Designed for enterprise efficiency, optimized for dense rack deployments
How to Install Ortronics Alcatel QSFP+ Module
Installing the Ortronics Alcatel QSFP+ Module is straightforward and designed to minimize downtime in busy deployments. Follow these best-practice steps to ensure a clean, reliable integration into your optical network.
- Step 1: Prepare equipment — Power down the host device (switch, router, or server) according to the vendor’s procedures and disconnect or protect connected cables to prevent accidental damage during service.
- Step 2: Inspect the QSFP+ port — Check the slot for debris and dust. If needed, use proper cleaning tools to remove any contamination that could interfere with contact surfaces or fiber connections.
- Step 3: Align and insert — Align the QSFP+ module with the port and slide it in gently until it seats with a firm, single-click engagement. Do not force the module, as improper seating can affect signal integrity.
- Step 4: Route fiber properly — Attach the LC duplex fiber cables with the correct single-mode fiber type. Ensure that bend radii are respected and that cables are secured to avoid tension on the module.
- Step 5: Power up and verify — Reconnect power and boot the device. Verify link status via the device’s management interface and LED indicators. Confirm the module shows as recognized and the 40G link attains a stable state.
Frequently Asked Questions
-
Q: What is the Ortronics Alcatel QSFP+ Module used for?
A: It is a 40 Gbps QSFP+ transceiver for LR4 applications, enabling high-speed interconnects over single-mode fiber in data centers and large-scale networks. -
Q: Is this module compatible with my equipment?
A: The module is designed for broad interoperability and has been in-system tested in over 90 OEM switches, routers, and servers, reflecting strong cross-vendor compatibility. It is MSA-compliant to maximize integration flexibility. -
Q: What fiber type and distance does it support?
A: It supports Single-Mode Optical Fiber (SMF) with reach up to about 10 km, depending on fiber quality and installation conditions, making it suitable for campus backbones and data-center uplinks. -
Q: How can I verify that the module is working correctly?
A: Check the device’s port status indicators, use management software to confirm link status, and run basic opacity tests if available on your platform. Compatibility lists from the vendor can help validate environmental and functional readiness. -
Q: What should I expect in terms of maintenance and warranty?
A: The module is designed for enterprise reliability and long service life in demanding environments. Warranty terms vary by vendor and region; consult the seller’s terms for specifics and any coverage related to field failures or replacements.
