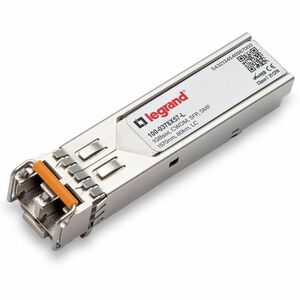

Ortronics Calix SFP Module — 1000Base-CWDM SFP for Optical Networking

The Ortronics Calix SFP Module is a high-performance transceiver designed for modern optical networks and data centers. Built around the 1000Base-CWDM standard and a single-mode fiber platform, this compact SFP module delivers reliable Gigabit Ethernet connectivity over long distances while maintaining compatibility across a wide range of original equipment manufacturers. Whether you’re upgrading an existing network or deploying new optical links, this Calix SFP module is engineered to maximize throughput, minimize downtime, and simplify integration with in-system compatibility tested across numerous OEM switches, routers, and servers.

• 1 x LC Duplex interface with 1000Base-CWDM capability, enabling high-speed Gigabit Ethernet over CWDM channels for efficient long-haul transmission.
• Single-mode fiber design for low loss and excellent signal integrity over extended distances, ideal for campus backbone, data center interconnects, and metro networks.
• Maximum reach of up to 80 kilometers, supporting long-distance links without the need for repeaters or multiple hops.
• Broad, real-world compatibility: in-system tested in over 90 OEM switches, routers, and servers, delivering confidence in deployment across diverse environments with a claimed 99.98% reliability on supported platforms.
• Designed for optical network and data networking applications with robust performance in 1 Gbps Ethernet, making it a dependable choice for upgrading legacy infrastructure or building scalable networks.

Technical Details of Ortronics Calix SFP Module

In the realm of optical networking, the Calix SFP module is a compact hot-pluggable transceiver that provides a cost-effective, flexible solution for extending reach and bandwidth. The module focuses on CWDM (Coarse Wavelength Division Multiplexing) technology combined with a single-mode fiber interface to optimize fiber utilization and network scalability. It is tailored for environments requiring reliable 1 Gbps Ethernet connectivity with long-haul capabilities, while remaining compatible with a broad ecosystem of switches, routers, and servers. Key features include support for 1000Base-CWDM, LC duplex connectors, and an 80 km reach that makes it suitable for campus backbones, core networks, and data center interconnects where fiber planning and link budgets are critical.

• Type: SFP (Small Form-factor Pluggable) transceiver module
• Standard: 1000Base-CWDM for Gigabit Ethernet over CWDM channels
• Fiber type: Single-mode optical fiber
• Connector: LC Duplex
• Data rate: 1 Gbit/s (Gigabit Ethernet)
• Maximum distance: Up to 80 kilometers
• Compatibility scope: In-system tested in over 90 OEM switches, routers, and servers

how to install Ortronics Calix SFP Module

To install the Ortronics Calix SFP Module, follow these practical steps to ensure proper operation and optimal performance in your optical network:

Step 1: Power down and prepare. Before handling the SFP module, power down the network device (switch, router, or server) and disconnect it from any active power source to prevent static discharge or equipment damage. Have your LC duplex fiber patch cables ready, ensuring the cables are clean and free of defects.

Step 2: Locate the SFP slot. Identify the appropriate SFP slot on the front or rear panel of your compatible OEM device. Confirm the slot supports 1000Base-CWDM and is designed for hot-swapping if your hardware supports this feature. If your device requires a specific micro-slot or pull-tab orientation, consult the device’s manual to confirm alignment.

Step 3: Insert the SFP module. Gently align the Calix SFP module with the slot and insert it firmly until the latch engages. Do not force the module; if it does not seat with a smooth, click-like engagement, remove it and reinsert with care. Ensure the module’s contacts are clean and free of dust or debris.

Step 4: Connect fiber and verify polarity. Attach your LC Duplex single-mode fiber pair to the LC connectors on the SFP module. Maintain correct transmit (Tx) and receive (Rx) polarity according to your network design. Use proper twist-free routing to avoid bending losses, and perform a gentle fiber bend-radius check to protect the fiber from micro-bends that could degrade performance.

Step 5: Power up and test link. Reconnect power to the device and power it on. Access the device’s management interface to verify the SFP module is recognized, and confirm the link status, negotiated speed (1 Gbps), and CWDM channel alignment. If any issue arises, consult the OEM device’s logs, verify firmware compatibility, and check fiber cleanliness and polarity. In some cases, you may need to update firmware or configuration to ensure full compatibility across 90+ tested platforms.

Step 6: Monitor performance. After establishing a link, monitor link uptime, error statistics, and latency to ensure sustained performance. In production environments, consider enabling SFP-specific monitoring via the device’s management capabilities to detect degradation before it affects traffic. Proper maintenance, including periodic cleaning of connectors and inspection of fiber links, will help preserve long-term performance for this 1000Base-CWDM module.
