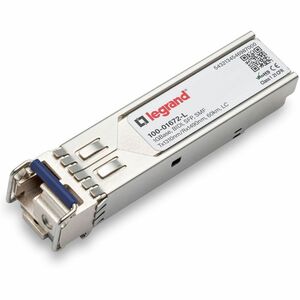

Ortronics Calix SFP Module

The Ortronics Calix SFP Module is a high-performance, compact transceiver designed for optical network and data networking environments. Built to support 1000Base-BX gigabit Ethernet over single-mode fiber, this module delivers reliable, long-reach connectivity with the compact footprint of a standard SFP form factor. Engineered for compatibility, it is tested across a wide range of OEM equipment to ensure smooth integration into diverse network architectures. Whether you’re upgrading existing infrastructure or deploying a new optical backbone, this SFP module offers the speed, reach, and reliability required for mission-critical applications.

• 1 x LC Duplex 1000Base-BX SFP module for single-mode fiber, delivering reliable Gigabit Ethernet throughput over optical links with a compact, hot-pluggable design that fits standard SFP slots across switches, routers, and servers.
• Supports distances up to 60 km, enabling extended links between data centers, campuses, and remote sites. The long-reach capability makes it ideal for metro networks, WAN connections, and backbone deployments where fiber spans exceed short-reach limits.
• Optical fiber compatibility: Single-mode fiber ensures low attenuation and high performance over long distances, while the LC duplex connector provides a secure, high-density interface suitable for dense equipment racks and modern data centers.
• Broad compatibility and reliability: In System tested in over 90 OEM switches, routers and servers, and backed by a robust reliability claim, this SFP module is designed to minimize compatibility issues and maximize uptime in mixed-vendor environments.
• Designed for Calix and Ortronics ecosystems with industry-standard specifications, ensuring straightforward integration into existing networks, predictable performance, and simplified maintenance across multi-vendor deployments.

Technical Details of Ortronics Calix SFP Module

• Interface: 1000Base-BX Gigabit Ethernet over single-mode fiber
• Fiber Type: Single-mode optical fiber
• Connector: LC duplex
• Data Rate: 1 Gbit/s
• Distance: Up to 60 km guaranteed distance
• Form Factor: SFP module (hot-swappable in compatible equipment)
• Applications: Optical network, data networking, campus and data-center interconnects
• Compatibility: In System tested in over 90 OEM switches, routers and servers
• Reliability: 99.98% reliability claim (as indicated by product notes)
• Branding: Ortronics Calix SFP Module

How to Install Ortronics Calix SFP Module

Before installation, verify that your network devices support 1000Base-BX SFP modules and single-mode fiber with LC duplex connectors. Power down the device or ensure a safe hot-swap procedure as recommended by the equipment vendor. Prepare a clean, properly terminated single-mode fiber link with LC connectors, ensuring the fiber is free of bends and contaminants. Use an appropriate SFP cradle or slot to minimize insertion force and protect sensitive components during installation.

Step 1: Power down the host device or prepare for a hot-swap according to your equipment’s service guidelines. If performing a hot-swap, ensure you follow the vendor’s safety procedures and handle the module with proper electrostatic discharge precautions.

Step 2: Align the Ortronics Calix SFP Module with the target SFP slot. Gently insert the module straight into the slot until it sits firmly in place and the locking mechanism engages. Do not force the module or apply side pressure, which can damage the connector or the port.

Step 3: Connect the optical fiber. Attach the LC duplex fiber to the module’s LC connectors, ensuring the correct transmit (Tx) and receive (Rx) alignment. Use fiber with appropriate gender and polishing to prevent insertion loss. Confirm that the fiber path has minimal bends and adequate strain relief to preserve signal integrity over the link.

Step 4: power on and configure. After seating the module and connecting fiber, power on the device. Access the device’s management interface to verify link status and configure the SFP port for 1000Base-BX operation if needed. Some platforms automatically detect SFP modules and set defaults, while others require explicit configuration for the BX wavelength and corresponding TX/RX pairs.

Step 5: Validate connectivity. Check the transceiver’s status indicators and test the link using standard network diagnostic tools. Confirm that the link rate shows as 1 Gbps and that the fiber distance aligns with your deployment’s distance requirements. If link is not established, recheck fiber connections, port configurations, and compatibility notes. If issues persist, consult the device vendor’s guidance or try an alternate fiber path to isolate the fault.

Step 6: Document installation. Record the module model, firmware or software version of the host device, fiber type, length, and port configuration for future maintenance, audits, and troubleshooting. Maintain good inventory hygiene so that replacement modules or additional SFPs from the same batch can be easily sourced if needed.

Frequently Asked Questions

Q: What is the main use case for the Ortronics Calix SFP Module?

A: This SFP module is designed for 1000Base-BX gigabit Ethernet over single-mode fiber, enabling high-speed connections with long reach (up to 60 km). It’s ideal for optical network backbones, data center interconnects, and campus networks where distance and performance requirements exceed shorter-reach copper links.

Q: Is the module compatible with multiple vendors and devices?

A: Yes. The product notes indicate it is “In System tested in over 90 OEM switches, routers and servers,” which suggests broad compatibility across a wide range of equipment. As with any transceiver, it’s best to verify specific compatibility with your device model and firmware version to ensure seamless operation.

Q: What type of fiber and connector does this module require?

A: The module uses single-mode optical fiber with LC duplex connectors. This combination is standard for long-distance fiber applications and is designed to minimize attenuation over long links while maintaining high signal integrity.

Q: What performance can I expect from this SFP module?

A: You can expect a data rate of 1 Gbit/s across a fiber link up to 60 km, depending on fiber quality, connector integrity, and network conditions. The module is built to provide reliable, consistent performance suitable for enterprise and service-provider environments.

Q: How do I ensure proper installation and maximum reliability?

A: Follow standard safety and installation procedures: verify device compatibility, power down or observe hot-swap guidelines, insert the module firmly, connect clean LC duplex fiber with proper bend radius, configure the port for 1000Base-BX if required, and validate link status through the device management interface. Regular maintenance checks and documentation help sustain long-term reliability, especially in multi-vendor deployments.
