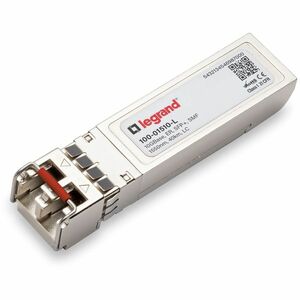

Ortronics Calix SFP+ Module

The Ortronics Calix SFP+ Module is a high-performance optical transceiver designed for demanding data center and enterprise networks. Built for reliability in long-haul optical links, this module supports 10GBase-ER over single-mode fiber, delivering robust connectivity through a compact, hot-pluggable SFP+ form factor. With a 1 x LC duplex optical interface and compatibility across a wide range of OEM devices, it enables scalable, flexible network upgrades without overhauling existing infrastructure. Whether you’re linking core switches, aggregation routers, or high-performance servers, the Calix SFP+ Module provides consistent performance, lower total cost of ownership, and straightforward integration for dependable 10 Gigabit Ethernet connectivity up to 40 kilometers.

• 10GBASE-ER over single-mode fiber: Engineered for long-haul deployments, this transceiver supports data rates up to 10 Gbps and a maximum distance of up to 40 km, enabling scalable, high-capacity links between data centers, campuses, and backbone networks.
• 1 x LC duplex optical interface: Featuring a standard LC duplex connector, the module provides a simple, widely supported fiber connection that fits cleanly into existing optical infrastructure and SFP+ slots.
• Broad interoperability: In-system tested in over 90 OEM switches, routers, and servers, ensuring broad compatibility across a wide range of vendors and platforms for seamless integration into multi-vendor environments.
• High reliability and proven performance: Built for consistent operation in dense, production networks with strong reliability figures observed during compatibility testing, helping minimize downtime and ensure steady throughput for critical applications.
• Compact, hot-pluggable SFP+ form factor: Designed to drop into standard SFP+ ports without requiring changes to your chassis or cabling, facilitating easy upgrades, scaling, and maintenance in data centers and enterprise networks.

Technical Details of Ortronics Calix SFP+ Module

• Product: Ortronics Calix SFP+ Module
• Interface: 1 x LC Duplex optical connector
• Fiber Type: Single-mode optical fiber
• Standards: 10GBase-ER
• Data Rate: 10 Gbit/s
• Maximum Distance: Up to 40 km
• Compatibility: In-system tested in over 90 OEM switches, routers, and servers
• Reliability: Reported high reliability in compatibility testing (approximate 99.98% in-system reliability noted in product communications)

How to install Ortronics Calix SFP+ Module

• Power down the host equipment: Before handling any SFP+ module, power down the switch, router, or server and disconnect the power where appropriate to prevent electrostatic discharge and ensure safe installation.
• Prepare the SFP+ port: Remove any protective caps from the SFP+ slot and verify there is no visible debris or damage in the slot or connectors. Align the SFP+ module with the slot, making sure the module’s edge connectors are parallel to the slot guides.
• Insert the module: Gently insert the Calix SFP+ module into the SFP+ port until it seats firmly with a light click. Do not force insertion; ensure the module is fully seated to establish proper electrical and optical contact.
• Attach the fiber cable: Connect a single-mode LC duplex fiber cable to the module’s LC connectors, ensuring correct polarity and that both transmitter and receiver ends are properly terminated. Use appropriate ferrule polishing and connector care to prevent loss.
• Power up and verify: Restore power to the device and check the port status indicators. Configure the port for 10GBASE-ER if required by your network device, and perform loopback or throughput tests to confirm link integrity and performance.

Frequently Asked Questions

• Q: What network standard does the Ortronics Calix SFP+ Module support? A: It supports 10GBASE-ER, enabling 10 Gigabit Ethernet over single-mode fiber for long-haul links up to 40 kilometers.
• Q: What type of fiber and connectors does this module use? A: It uses single-mode optical fiber with a 1 x LC duplex connector for standard, widely supported fiber connections.
• Q: Is this SFP+ module compatible with multiple vendors' switches and routers? A: Yes. The module is in-system tested across over 90 OEM switches, routers, and servers, offering broad interoperability in multi-vendor environments.
• Q: What is the maximum reach of this transceiver? A: The maximum distance is up to 40 km on appropriate single-mode fiber links, making it suitable for data center interconnects and long-haul connections.
• Q: How do I install and verify the module after installation? A: Power down equipment before installation, insert the module into a standard SFP+ slot, connect the LC fiber, power up, and verify link status and throughput with your network management tools. If issues arise, re-seat the module or test with a different fiber pair to rule out cabling faults.
