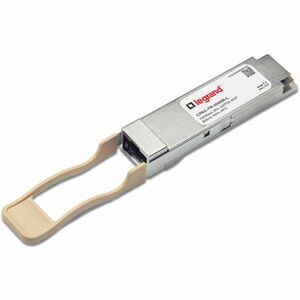

Ortronics Check QSFP28 Module - 100GBase-SR4 Optical Transceiver for Multi-Mode Fiber

The Ortronics Check QSFP28 Module is a high-performance 100GBASE-SR4 optical transceiver engineered for data centers, high-density networks, and enterprise backbones. This QSFP28 module uses a parallel MPO/MTP interface to deliver four lanes of 25 Gbps each, aggregating to a robust 100 Gbps link over short-reach multi-mode fiber. Built to withstand the rigors of demanding network environments, it is designed for plug-and-play deployment, helping engineers and technicians accelerate upgrades from 40G to 100G without overhauling existing cabling. The module has undergone extensive in-system validation across more than 90 OEM switches, routers, and servers, ensuring reliable compatibility across a broad installed base. With a guaranteed reach of up to 0.10 km (100 meters), it’s an ideal choice for intra-rack and inter-rack connections within modern data centers that demand speed, reliability, and scalable performance.

• 100GBASE-SR4 performance in a compact QSFP28 form factor, using a single MPO/MTP interface to carry four parallel 25 Gbps lanes for high-throughput networks.
• Multi-Mode fiber support (OM3/OM4) optimized for short-reach links, delivering reliable 100 Gbps connectivity over distances up to 0.10 km (100 meters).
• Broad compatibility and confidence from extensive in-system testing across 90+ OEM switches, routers, and servers, ensuring smooth plug-and-play integration in diverse environments.
• Durable, hot-swappable QSFP28 module with dependable thermal and electrical performance, designed to fit dense data-center racks and high-density deployments.
• Designed to streamline network upgrades and future-proof infrastructure, enabling scalable 100G deployments while preserving existing MMF cabling investments.

Technical Details of Ortronics Check QSFP28 Module

• Form Factor: QSFP28 transceiver
• Connector: MPO/MTP (12-fiber, parallel optic)
• Data Rate: 100 Gbps aggregated (4 x 25 Gbps lanes)
• Interface Type: 1 x MPO/MTP for parallel fiber transmission
• Fiber Type: Multi-Mode (OM3/OM4 compatible)
• Wavelength Mode: Optimized for short-reach SR4 signaling on MMF
• Distance Support: Up to 0.10 km (100 meters) with appropriate MMF cabling
• Standard Compliance: 100GBASE-SR4 per IEEE 802.3
• In-System Compatibility: Tested in over 90 OEM switches, routers, and servers for plug-and-play operation
• Power and Thermal: Engineered for data-center reliability with efficient power usage and thermal performance
• Operating Environment: Suited for standard data-center environmental conditions and rack-based deployments

How to Install Ortronics Check QSFP28 Module

Installing the Ortronics Check QSFP28 Module is designed to be straightforward and safe, minimizing downtime and ensuring proper optical performance. Follow these best-practice steps to achieve a reliable uplink quickly.

• Power down the equipment or place it in a maintenance window to prevent electrostatic discharge and to protect the optical interfaces during handling.
• Inspect the QSFP28 port and the MPO/MTP fiber assembly for any signs of damage, dust, or contamination. Clean connectors as recommended by your data-center procedures.
• Align the Ortronics Check QSFP28 Module with the corresponding QSFP28 port, and gently insert until the module seats securely and the locking mechanism engages.
• Route the MPO/MTP fiber ribbon carefully to minimize bending and ensure proper strain relief. Connect the fiber to the module according to your network design, avoiding sharp bends or excessive slack.
• Power up the device and verify link status via the switch/router management interface. Confirm that the 100G link is established, check the port speed, and run a basic throughput test to validate performance.
• If interworking issues arise, consult your OEM device documentation for any required port default settings, and ensure the transceiver is selected as the active module in the device’s port configuration.

Frequently asked questions

• Q: What is the Ortronics Check QSFP28 Module designed to support?
• A: It is designed for 100GBASE-SR4 operation over multi-mode fiber, using a parallel MPO/MTP interface to deliver 4x25 Gbps lanes for 100 Gbps Ethernet across short-reach links in data centers and enterprise networks.
• Q: What distance can you run with this transceiver?
• A: The module carries a guaranteed reach of up to 0.10 km (100 meters) on appropriate MMF cabling, making it ideal for intra-data-center deployments such as rack-to-rack connections.
• Q: Is the transceiver compatible with multiple OEM platforms?
• A: Yes. It has undergone extensive in-system testing and is compatible with more than 90 OEM switches, routers, and servers to support plug-and-play deployment across a wide range of hardware.
• Q: What fiber type should be used?
• A: Multi-Mode fiber (OM3 or OM4) is recommended for SR4 signaling, with MPO/MTP connectors that match the transceiver’s interface. Proper fiber handling is essential to maintain signal integrity.
• Q: Do I need special configuration after installation?
• A: In most scenarios, the transceiver operates as a plug-and-play module. Some devices may require minimal port configuration or auto-negotiation adjustments depending on the OEM platform and network design.
• Q: How can I verify a healthy 100G link?
• A: Check the port LED status indicators, confirm a stable 100G speed on the management interface, and run a throughput or loopback test to verify error-free data transmission across the link.
