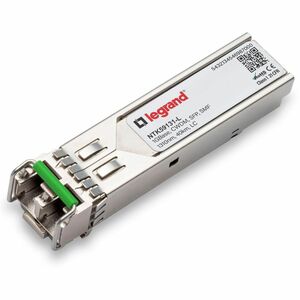

Ortronics Ciena SFP Module

This Ortronics Ciena SFP Module is engineered for high-performance optical and data networking environments. Built to support 1000Base-CWDM over single-mode fiber, it delivers reliable Gigabit Ethernet connectivity across extended distances while maintaining broad compatibility with a wide range of OEM platforms. Designed for enterprise networks, data centers, and carrier-grade infrastructures, this module blends CWDM efficiency with plug-and-play convenience to simplify deployments and minimize downtime.

• 1 x LC duplex optical interface supporting 1000Base-CWDM for reliable, high-speed Gigabit Ethernet over single-mode fiber. The LC duplex connector is designed for straightforward installations in dense equipment racks and switch/router ports.
• 1000Base-CWDM over single-mode fiber bridges long-haul connections with efficient wavelength-division multiplexing. This CWDM SFP module is built to handle network growth while preserving signal integrity across distances typical for enterprise and metro networks.
• 40 km maximum distance enables extended reach between network nodes without the need for additional mid-span amplification, making it ideal for campus backbones, data-center interconnects, and remote site connectivity.
• Broad compatibility and proven reliability with in-system testing across more than 90 OEM switches, routers, and servers ensures flexible deployment in mixed environments. The module is designed to be a drop-in, hot-swappable component for many OEM platforms, reducing integration time and risk.
• Optimized for data networking and optical networks combining CWDM technology with a compact SFP form factor to deliver scalable, low-maintenance performance for bandwidth-intensive applications including backbone aggregation, service-provider access, and enterprise data paths.

Technical Details of Ortronics Ciena SFP Module

• Module type: SFP (Small Form-factor Pluggable)
• Interface: 1 x LC duplex
• Standard/Protocol: 1000Base-CWDM
• Fiber type: Single-mode
• Data rate: 1 Gbit/s
• Wavelength: CWDM-compatible wavelengths (multiplexed across CWDM channels)
• Maximum transmission distance: Up to 40 km
• Compatibility: In-system tested in over 90 OEM switches, routers, and servers
• Application: Optical network and data networking environments requiring reliable Gigabit Ethernet connectivity over single-mode fiber

How to Install Ortronics Ciena SFP Module

• Power down the host device or prepare the SFP slot for replacement according to your equipment's hot-swappable guidelines. If your system supports hot-swapping, you may proceed without powering down, but always follow your device’s maintenance procedures.
• Carefully align the Ortronics Ciena SFP Module with the SFP slot. Ensure the connector and groove orientation match the slot alignment to avoid pin damage or misalignment.
• Gently insert the module into the SFP slot until it seats securely. A definitive click or tactile feedback is common when the module is fully engaged. Do not force the module beyond its seating point.
• Connect the optical fiber using a single-mode LC cable. Ensure the correct fiber polarity and that the LC connectors are clean to prevent insertion loss. Avoid bending the fiber beyond the recommended minimum bend radius.
• Power on the device (if required) and verify link status via the device LEDs or management interface. Monitor the port for link integrity, data throughput, and error statistics to confirm a stable connection.
• If you encounter any connectivity issues, verify compatibility with the host device, re-seat the module, and check fiber cleanliness and termination. In mixed environments, consult the OEM compatibility matrix to ensure continued interoperability.

Frequently asked questions

• What does 1000Base-CWDM mean for this module? It refers to a Gigabit Ethernet SFP module that uses coarse wavelength-division multiplexing (CWDM) to operate over single-mode fiber. This enables longer reach and flexible wavelength allocation in CWDM networks while delivering 1 Gbps data rates.
• What kind of fiber does it use? The module is designed for single-mode optical fiber, which is typical for longer-distance links and backbone networks due to lower attenuation and higher bandwidth over distance.
• How far can I connect with this SFP module? The maximum recommended distance is up to 40 kilometers, depending on fiber quality, connector integrity, and the overall network design. Real-world distances may vary based on link budget and channel conditions.
• Is this SFP module compatible with all switches and routers? The module has been tested in over 90 OEM switches, routers, and servers, indicating broad compatibility. However, always confirm device-specific compatibility with your OEM’s interop resources before deployment.
• Can I hot-swap this module? Many systems support hot-swapping SFP modules. If your device's maintenance documentation indicates hot-swapping is supported, you can replace or upgrade without powering down. Otherwise, power down before replacement as per your device guidelines.
• What applications are ideal for this module? It is well-suited for optical-network backbones, data-center interconnects, campus networks, and service-provider access links that require reliable 1 Gbps CWDM connectivity over single-mode fiber.
