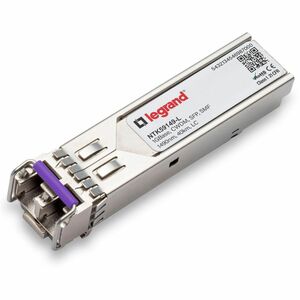

Ortronics Ciena SFP Module — 1000Base-CWDM Single-Mode LC Transceiver

The Ortronics Ciena SFP Module is a high-performance, plug-and-play optical transceiver designed for modern data networking. Built to support 1000Base-CWDM over single-mode fiber, this SFP module delivers reliable, scalable gigabit Ethernet connectivity across long distances while maintaining compatibility with a wide range of switches, routers, and servers. Engineered for optical networks and data networking environments, it combines precise CWDM technology with a compact, hot-swappable form factor that minimizes network downtime. Whether you’re upgrading an aging fiber backbone or deploying a new, high-bandwidth link, this SFP module is designed to seamlessly integrate with existing infrastructure and deliver consistent, low-latency performance.

• 1 x LC Duplex 1000Base-CWDM SFP transceiver for single-mode fiber, offering a robust, high-bandwidth link over long distances with reliable fiber performance.
• Supports 1 Gbps data rate (Gigabit Ethernet) and is optimized for 1000Base-CWDM networking, enabling scalable bandwidth for campus, data center, and long-haul links.
• Compatibility and interoperability: In-System tested in over 90 OEM switches, routers, and servers, with an excellent compatibility track record to reduce integration risk and spare parts complexity.
• Compact, hot-swappable SFP design reduces network downtime during upgrades or maintenance; supports easy replacement without powering down network equipment.
• Durable construction and proven reliability: designed for continuous operation in rack environments, with a focus on low insertion loss, stable performance, and long-term service life.

Technical Details of Ortronics Ciena SFP Module

• Data Rate: 1 Gbps (Gigabit Ethernet)
• Interface: SFP form factor with LC duplex optical connector
• Fiber Type: Single-mode fiber
• Wavelength: 1000Base-CWDM transceiver for CWDM networks
• Distance: Supports link distances up to approximately 40 km under standard CWDM configurations
• Compatibility: In-System tested in more than 90 OEM switches, routers, and servers for broad interoperability
• Connector Type: LC duplex optical connector to match standard CWDM fiber installations
• Operating Conditions: Designed for stable performance in typical data center and network environments (temperature and humidity within standard ranges for network equipment)

how to install Ortronics Ciena SFP Module

• Power down the network device or ensure it is in a safe, standby state before insertion to protect both the module and the chassis.
• Identify the correct SFP slot that matches the network device's port type and chassis guidelines. Verify the device supports 1000Base-CWDM SFP transceivers.
• Insert the Ortronics Ciena SFP Module firmly into the SFP socket until the module clicks into place. Ensure the retention tab engages and the module is seated evenly.
• Connect the single-mode fiber patch cable to the LC duplex connector on the SFP module, aligning transmit (TX) and receive (RX) paths with the corresponding ports on the fiber network.
• Power up the device and verify link status and data transmission using the device’s management interface or LED indicators. If a link is not established, check fiber polarity and connector cleanliness, and consult the network device logs for any diagnostic messages.

Frequently asked questions

• Q: Is this Ortronics Ciena SFP Module compatible with my existing switches and routers?
• A: The module is designed for broad interoperability and has been in-system tested in over 90 OEM switches, routers, and servers. However, always check your device’s compatibility matrix and firmware requirements to ensure seamless operation.
• Q: What kind of fiber and fiber optic cables should I use with this module?
• A: Use single-mode fiber compatible with CWDM transceivers and LC duplex connectors. Clean and inspect connectors before installation to avoid excessive insertion loss and signal degradation.
• Q: Can I hot-swap this SFP module without powering down the chassis?
• A: Yes. The SFP module is designed with hot-swappable features to minimize downtime. However, follow your equipment’s guidelines for hot-swapping and ensure the system is not performing critical operations during replacement.
• Q: What is the typical distance supported by this 1000Base-CWDM module?
• A: The module supports link distances up to approximately 40 km under standard CWDM configurations when paired with appropriate CWDM fiber and network equipment.
• Q: How do I verify polarization and wavelength alignment for CWDM networks?
• A: CWDM systems are wavelength-specific. Ensure the device’s wavelength support aligns with your network’s CWDM grid, and use calibrated testing gear to confirm optical power levels, bit error rate, and link integrity during deployment.
