Ortronics Clarity 48-Port, 2RU High Density Jack, Unloaded Flat Panel

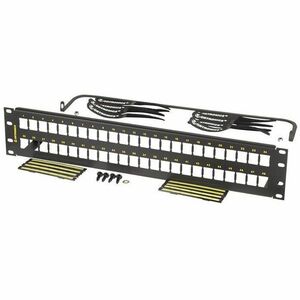

The Ortronics Clarity 48-Port, 2RU High Density Jack, Unloaded Flat Panel is engineered for serious network deployments that demand dense port count without compromising cable management or ease of service. This unloaded black flat panel is designed for rear-loading HDJ series jacks and accessories, providing a scalable foundation for neatly organized, high-performance solutions. With a compact 2U footprint (3.5 inches high by 19 inches wide), it fits securely into standard rack systems while delivering maximum port density. The panel is built to support clean, professional installations where space efficiency and reliability matter most, making it an ideal backbone for data centers, large enterprise closets, and audio/visual network rooms. The Clarity flat panel ships with essential rear cabling components, such as a rear management bar and straps, to help you route cables cleanly, reduce clutter, and accelerate maintenance tasks. In environments that require customization, this panel is designed to integrate with the HDJ series jacks and accessories, enabling modular configurations that adapt to evolving network needs. Whether you’re expanding a current rack or building a new one from the ground up, the 48-port unloaded panel delivers a robust, flexible canvas for your cabling strategy, while maintaining the precise alignment and performance characteristics that Clarity products are known for.

• High-port-density, 48-port capacity: This unloaded flat panel is purpose-built to maximize port density within a compact 2U space, enabling you to consolidate more connections in less rack space. The 48 ports are designed to work with rear-loading HDJ jacks, allowing streamlined cable routing and easy late-stage expansion as your network grows. By concentrating more ports into a single panel, you gain efficiency in both space and administration, reducing the footprint of bulky patch panels while preserving signal integrity.
• Unloaded design for modular flexibility: As an unloaded panel, it gives you full control over the specific jack families, colors, and performance categories you deploy. This means your installation can be precisely tailored to your current needs and ready for future upgrades without carrying unused jacks. The ability to mix and match HDJ components and other Ortronics elements ensures a cohesive, professional look while maintaining consistent performance benchmarks across the entire network.
• Rear loading capability with included management hardware: The panel is optimized for rear-loading HDJ series jacks, which facilitates cleaner front-facing aesthetics and simpler maintenance. Included rear management bar and straps help you secure and organize cables behind the panel, reducing stress on individual connectors and improving airflow. This thoughtful inclusion is especially valuable in dense racks where cable routing can be a challenge, delivering a tidy installation that’s easier to troubleshoot and service over time.
• 2U footprint with standard 19-inch rack compatibility: Occupying 2 rack units of space and aligning with the standard 19-inch rack width, the Clarity flat panel integrates seamlessly into most data center and telecom rack environments. The 3.5" x 19" footprint ensures compatibility with a wide range of racks while maintaining a sleek, uniform profile. The design supports precise mounting and stable support of the ports, which helps maintain connector alignment and minimizes wear on jacks during heavy usage.
• Configurable, color-aware, and performance-oriented design: The panel is aligned with Clarity’s philosophy of configurable performance categories and color options, enabling installers to create visually organized, category-driven patching environments. This feature makes it easier to map networks, segregate traffic types, or differentiate departments at a glance. Coupled with the rear management hardware, it provides a comprehensive, scalable solution that remains neat and accessible as network needs evolve.

Technical Details of Ortronics Clarity 48-Port, 2RU High Density Jack, Unloaded Flat Panel

• Port count: 48 ports (unloaded panel designed for rear-loading HDJ jacks)
• Panel type: Unloaded flat panel for rear-loading HDJ series jacks and accessories
• Rack units: 2U
• Dimensions: 3.5 inches in height, 19 inches in width (standard 19" rack mounting)
• Color: Black
• Included hardware: Rear management bar and straps for organized cabling
• Mounting compatibility: Fits standard 19" racks used in data centers and network closets
• Compatibility: Designed for use with HDJ series rear-loading jacks and related accessories
• Application: Ideal for high-density, scalable network connectivity in rack environments

how to install Ortronics Clarity 48-Port, 2RU High Density Jack, Unloaded Flat Panel

• Plan and prepare: Assess your network needs, map port assignments, and determine the optimal vertical and horizontal placement within your rack. Confirm compatibility with HDJ jacks and related accessories before installation, and label any planned cable routes to minimize confusion during deployment and future changes.
• Mount the panel chassis: Position the unloaded flat panel in the 19" rack rails at the desired height. Secure the panel following standard rack installation practices, ensuring level alignment and firm mounting hardware to prevent movement during cable management and servicing.
• Attach rear management hardware: Install the rear management bar and straps as provided to establish a clean routing path behind the panel. This step helps consolidate cables, reduces bending or stress on individual jacks, and supports improved airflow and cooling efficiency in dense rack environments.
• Configure port mapping and prepare cabling: If you plan to use color-coded or category-based organization, prepare your cables and connectors accordingly. Plan channeling and labeling that aligns with your network design, so front-facing ports can be identified quickly during installation, maintenance, or troubleshooting.
• Install jacks and route cables: Once the panel is mounted, install the HDJ rear-loading jacks into the panel as needed, following the manufacturer’s installation guidelines. Route cables through the rear management bar, securing them with ties or straps to prevent movement, ensuring sufficient slack for serviceability while avoiding excessive tension on connectors.
• Test and document: After wiring is complete, perform connectivity tests for each port, verify labeling accuracy, and document the port map for future reference. Confirm that all cables are neatly organized and that rear management hardware remains secure after any physical adjustments to the rack.

Frequently asked questions

• Q: What is included with the Ortronics Clarity 48-Port unloaded flat panel?

  A: The panel is unloaded and designed for rear-loading HDJ jacks. It includes a rear management bar and straps to help organize cables behind the panel, supporting a cleaner, more maintainable rack installation.

• Q: Is this panel compatible with all HDJ series jacks?

  A: It is designed for rear-loading HDJ jacks and accessories. Compatibility should be confirmed with the specific HDJ components you plan to deploy to ensure secure fit and optimal performance.

• Q: What rack space does the panel occupy?

  A: The panel occupies 2U in a standard 19-inch rack, with dimensions of 3.5 inches in height and 19 inches in width. This compact footprint delivers high port density without compromising space in the rack.

• Q: Can I customize colors or performance categories for this panel?

  A: Yes, the product supports configuration with color options and performance categories, allowing you to organize and map ports according to your network design. This feature aids in quick identification and scalable expansion.

• Q: What installation considerations are important for long-term reliability?

  A: Prioritize solid mounting, clean rear cable management, and careful labeling. Maintain cable slack to accommodate future changes, avoid over-tightening ties that can stress connectors, and periodically re-check management hardware to ensure continued effectiveness in routing and airflow.
