Description

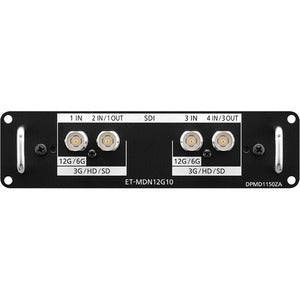

Panasonic ET-MDN12G10 3G SDI Output Card
The Panasonic ET-MDN12G10 3G SDI Output Card is a compact, high-performance interface board engineered to empower professional broadcast and AV workflows. With dual inputs and dual input/output paths, this card seamlessly integrates into Panasonic systems and multi-channel rack setups, delivering reliable, high-fidelity video signals at 12G-SDI speeds. Built for demanding environments—from live sports and studio productions to field operations—the ET‑MDN12G10 combines precise signal routing, robust connectors, and a streamlined form factor to help you capture, distribute, and monitor video with confidence. If you rely on 12G-SDI to push high-resolution content across studios, OB vans, or post-production suites, this card provides the dependable backbone you need for synchronized, glitch-free performance.
- Compact footprint for flexible installations: Measuring 1.5" in height, 5.9" in width, and 5.6" in depth, the ET-MDN12G10 is designed to fit in tight racks and compact enclosures without sacrificing performance or signal integrity. Its slim profile makes it ideal for dense production setups, mobile units, and mounted configurations where space is at a premium.
- Dual input and dual input/output channels: This interface board provides Input x 2 and Input/Output x 2, enabling versatile signal routing and multi-channel workflows. Whether you’re re‑routing feeds between cameras, cards, and recorders, or distributing signals to monitors and switchers, the dual pathways give you the flexibility to optimize latency, synchronization, and workflow efficiency.
- 12G-SDI capability with broad compatibility: The ET-MDN12G10 is designed to handle 12G-SDI signals while maintaining compatibility with 3G-SDI and HD-SDI environments. This makes it an invaluable upgrade for facilities transitioning to higher bandwidth streams, allowing you to future-proof your infrastructure while preserving existing equipment and investments.
- Panasonic‑engineered reliability for broadcast environments: Built to meet the rigors of daily broadcast and professional production, this card features durable construction, stable connectors, and predictable performance under continuous operation. It’s engineered to deliver consistent video quality, minimal latency, and dependable uptime across long shooting days and complex live events.
- Streamlined integration with Panasonic ecosystems: As a purpose-built interface board, the ET-MDN12G10 integrates smoothly with Panasonic hardware and software ecosystems. This enables easier configuration, plug‑and‑play deployment, and reduced setup time when expanding your SDI network or upgrading your production pipeline.
Technical Details of Panasonic ET-MDN12G10
- Product: Panasonic ET-MDN12G10 3G SDI Output Card
- Interface: 12G-SDI interface board (supports 12G-SDI with compatibility for 3G-SDI and HD-SDI systems)
- Inputs: 2
- Input/Output: 2
- Dimensions: 1.5" (H) x 5.9" (W) x 5.6" (D)
- Application: Interface board designed for Panasonic systems requiring high-bandwidth SDI output and flexible signal routing
- Use case: Ideal for studios, OB trucks, post suites, and other broadcast environments requiring reliable 12G-SDI performance
How to install Panasonic ET-MDN12G10
Installing the ET-MDN12G10 is straightforward when you follow these steps. Ensure you have the appropriate Panasonic chassis or workstation with available PCI/Interface slots and sufficient power for your SDI configuration. Power down all equipment before installation, and handle the card with care to avoid any damage to connectors or boards.
- 1) Power down and unplug your Panasonic system or chassis. Disconnect all external cables to prevent electrical shock or damage during installation.
- 2) Locate the available slot or interface bay in your chassis. Align the ET-MDN12G10 so that the connectors and mounting holes line up with the rack or panel guides.
- 3) Carefully insert the card into the slot, applying even pressure until it is seated securely. Secure the card with the appropriate screw or latch mechanism to prevent movement during operation.
- 4) Connect your 12G-SDI cables to the appropriate input and input/output ports. Route cables to minimize bending radius and keep power and data cables separated to reduce interference.
- 5) Reconnect power and all external devices. Power on the system and enter the software or firmware interface for configuration. Verify that the card recognizes both inputs and the two input/output channels, and test a minimal video signal to confirm correct routing and synchronization.
- 6) If applicable, update firmware through Panasonic’s management utilities and calibrate any timing settings to synchronize with other SDI devices in your chain. Perform a quick burn‑in test to ensure stability under typical production workloads.
Frequently asked questions
-
Q: What is ET-MDN12G10 best used for?
A: It’s a high‑bandwidth SDI interface board designed to deliver reliable 12G-SDI output with dual input and dual input/output channels, ideal for broadcast studios, control rooms, OB vans, and production environments that require flexible routing and robust signal integrity. -
Q: Does this card support 3G-SDI and HD-SDI?
A: Yes. The ET-MDN12G10 is designed to be compatible with 12G-SDI while maintaining compatibility with 3G-SDI and HD-SDI systems, enabling seamless integration into mixed‑generation workflows. -
Q: What are the physical dimensions?
A: The card measures 1.5 inches in height, 5.9 inches in width, and 5.6 inches in depth, offering a compact footprint suitable for tight installations without sacrificing performance. -
Q: How many inputs and outputs does the card provide?
A: The card provides Input x 2 and Input/Output x 2, giving you multiple signal paths for routing, monitoring, and distribution within your SDI pipeline. -
Q: Is installation hardware included?
A: This description covers the interface card itself. Depending on your purchase package, you may receive mounting hardware and necessary cables or adapters. Always refer to your vendor’s included accessory list for specifics.
