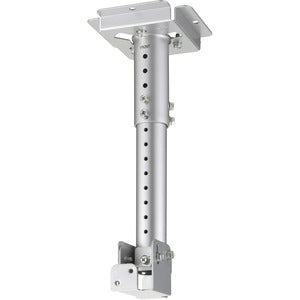

Panasonic ET-PKL100H Mounting Bracket for Projector
Designed for high-ceiling installations, the Panasonic ET-PKL100H Mounting Bracket delivers a secure, reliable, and precise solution for mounting projectors where space and sightlines matter. This ceiling mount bracket is engineered to make your installation quick, convenient, and adaptable, with a focus on straightforward adjustment and easy repositioning of connectors within a robust, secure mounting system. Its thoughtful design helps you minimize installation time while maximizing image alignment, throw distance versatility, and long-term stability—ideal for classrooms, conference rooms, home theaters, and professional venues that demand a clean, professional look and consistent performance. If you’re upgrading a projector or configuring a new space, the ET-PKL100H bracket provides the dependable support you need with configurable height and secure attachment points that keep your projection exactly where you want it.
- Versatile ceiling-mount design for high ceilings: This bracket is purpose-built to secure projectors mounted high above the floor, delivering reliable support without compromising aesthetics or access to essential cabling. Its design helps you preserve clear sightlines and maintain a clean room appearance while keeping the projector stable during use.
- Precise height adjustability up to 14.69 inches: The maximum adjustable height of 14.69 inches offers you a broad range of throw distances and screen positions, enabling precise alignment with your screen, speaker placement, and room geometry. This flexibility is especially valuable when you’re dealing with asymmetric rooms or ceiling structures that require careful positioning of the projector for optimal image geometry.
- Secure connectors with easy repositioning: The mounting system is engineered to allow quick and secure adjustment of connectors, so you can fine-tune alignment after installation or reconfigure the space with minimal downtime. This feature reduces setup time for changing classrooms, meeting spaces, or event venues without sacrificing stability or image quality.
- Durable construction with reliable finish: Built to withstand daily use in educational facilities, corporate environments, and home theaters, the bracket uses strong materials and a protective finish designed to resist wear, corrosion, and the rigors of frequent handling during installation or service calls.
- Compatibility and ease of installation for Panasonic projectors: Specifically designed for Panasonic projectors that utilize the ET-PKL100H mounting interface, the bracket simplifies installation for technicians and DIY installers alike. Standardized mounting patterns and robust hardware help ensure a secure seating of the projector with predictable, repeatable results.
Technical Details of Panasonic ET-PKL100H Mounting Bracket for Projector
- Maximum adjustable height: 14.69 inches
- Mounting type: ceiling-mounted projector bracket designed for secure overhead installation
- Compatibility: designed for Panasonic projectors using the ET-PKL100H mounting interface
- Material and finish: heavy-duty steel construction with a durable, corrosion-resistant coating
- Cable management: integrated provisions to guide cables neatly along the arm for a clean, organized install
- Durability and warranty: built for long-term use in commercial and residential spaces; refer to Panasonic warranty terms for specifics
How to Install Panasonic ET-PKL100H Mounting Bracket for Projector
- Step 1 — Plan and confirm mounting location: Assess the ceiling structure to ensure it can bear the projector’s weight. Identify a stable mounting point, confirm the presence of ceiling joists or use appropriate anchors as recommended by the manufacturer. Verify that the projector’s throw distance and lens shift capabilities align with the room’s screen position and viewing angles.
- Step 2 — Prepare mounting hardware and tools: Gather the hardware included with the ET-PKL100H bracket and any additional fasteners required for your ceiling type. Typical tools include a drill, stud finder, level, screwdriver, and a wrench set. Double-check that the hardware is compatible with your ceiling material and that you have a secure path for cable routing from the projector to the power and signal sources.
- Step 3 — Attach the ceiling plate and secure anchors: Mount the ceiling plate to the ceiling structure using the appropriate anchors and screws. Ensure the plate is level; an out-of-level mount can cause projector misalignment and added stress on the bracket. If you’re mounting into wood joists, use the recommended fasteners and spacing to maximize strength and stability.
- Step 4 — Assemble and align the projector mount: Connect the adjustable arms or bracket sections to the ceiling plate as directed by the installation manual. Align the projector mounting holes with the projector’s bottom or side-mount pattern, depending on your model. Use a level to guarantee a straight orientation, then snug the connectors to secure the arms while still allowing for final tilt and swivel adjustments.
- Step 5 — Mount the projector and configure alignment: With the projector hoisted into position, attach it to the bracket, aligning it with the screen center and desired throw relationship. Use the bracket’s adjustment features to fine-tune height, tilt, and pan. Prepare and route HDMI, power, and any control cables along the arm or through a cable management channel to keep cables secure and out of sight.
- Step 6 — Test, balance, and finalize: Power on the projector and test image alignment, keystone control, focus, and zoom. Make minor adjustments to vertical and horizontal positioning to center the image on the screen, confirm uniform brightness, and verify that the mounting remains stable during operation. Once satisfied, secure all fasteners and re-check cable routes for safety and appearance.
Frequently asked questions
- Q: What advantages does the ET-PKL100H offer for high-ceiling installations? A: It provides a robust ceiling-mount solution with a long adjustable height range, secure connectors, and clean cable management. These features reduce installation complexity and help maintain precise image positioning in rooms with tall ceilings.
- Q: Is this bracket compatible with non-Panasonic projectors? A: The ET-PKL100H is designed for Panasonic projectors that use this mounting interface. If your projector has a different mounting pattern, verify compatibility with the supplier or consider a universal ceiling mount that supports your model’s mounting hole pattern and weight rating.
- Q: How much height adjustment does the bracket offer? A: The bracket supports a maximum adjustable height of 14.69 inches, enabling flexibility to match ceiling height, throw distance, and screen placement for optimal image geometry.
- Q: Does the installation require professional help? A: Depending on your experience level and the ceiling structure, a professional installer can ensure maximum stability and safety. The bracket’s design aims to simplify installation for both professionals and confident DIY enthusiasts, but always follow local safety guidelines when mounting heavy equipment.
- Q: What maintenance is needed after installation? A: Periodically inspect mounting hardware for tightness, verify cable routing remains neat and undamaged, and ensure no loosening or sagging occurs in the bracket arms. Routine checks help maintain image alignment and safety over time.
