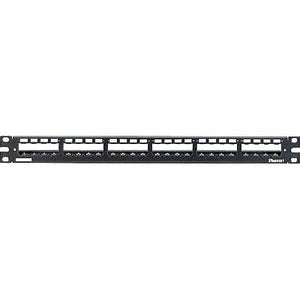

Panduit 24-Port All Metal Modular Patch Panel with Strain Relief Bar, 1U

Introducing the Panduit 24-Port All Metal Modular Patch Panel with Strain Relief Bar — a rugged, rack-ready solution built for professional IT environments. This 24-port panel delivers durable, scalable performance in a compact 1U form factor, making it ideal for data centers, server rooms, and network closets. Constructed from all-metal materials and finished in a sleek black coating, it stands up to daily use while maintaining a clean, professional appearance in any 19" rack. The integrated strain relief bar optimizes cable management, reduces port stress, and helps preserve signal integrity over time. Whether establishing a new network or expanding an existing one, this patch panel provides reliability, consistent performance, and long-term value for busy networks.

• All-metal durability for mission-critical networks: rugged steel construction and a corrosion-resistant finish deliver exceptional strength, resistance to impact, and long-lasting performance in busy data centers and telecom rooms. The sturdy chassis minimizes panel flex and ensures consistent port alignment even with dense cabling.
• 24-port modular design for scalable growth: a true 24-port solution that accommodates expanding networks without replacing the panel. Designed to work with standard RJ-45 modular jacks and copper cabling, it supports high-density deployments while keeping port mapping organized and accessible for future upgrades.
• Integrated strain relief bar for organized cabling: the built-in strain relief bar guides cables neatly, reduces cable stress at connectors, and maintains proper bend radii. This feature improves cable routing, simplifies maintenance, and helps protect port integrity during routine rework or re-termination.
• 1U height and 19" rack compatibility: purpose-built for standard 19" racks, the panel occupies only 1U of vertical space. Its compact footprint frees up rack space for additional equipment while delivering a clean, professional cabling solution that aligns with conventional rack layouts.
• Professional finish and installation-ready design: the black powder-coated housing resists wear and hides fingerprints, delivering a tidy appearance in any rack. The panel is designed for straightforward installation in standard racks and pairs well with Panduit cable management accessories for a complete, organized network infrastructure.

Technical Details of Panduit 24-Port All Metal Modular Patch Panel with Strain Relief Bar

• Ports: 24-position
• Form factor: 1U, 19" rack-mountable
• Material: All-metal construction
• Finish: Black powder-coated
• Strain relief bar: Integrated
• Mounting compatibility: 19" standard racks
• Type: Modular patch panel designed for standard RJ-45 copper cabling

How to Install Panduit 24-Port All Metal Modular Patch Panel

• Prepare your rack: identify a vacant 19" rack unit and ensure the rails are properly aligned for panel mounting. Confirm you have the necessary cage nuts and mounting screws suitable for your rack’s hardware.
• Attach mounting hardware: if your rack requires mounting ears or cage nuts, install them to align with the panel’s mounting holes. Ensure the panel sits squarely in the rack and can be secured without forcing or bending components.
• Mount the panel: slide the patch panel into the rack bay and secure it using the appropriate screws or cage nuts. Tighten screws evenly to avoid misalignment and ensure the panel remains stable under cable loads.
• Route and terminate cables: plan port labeling and route copper patch cables through the rear cable management path. Terminate cables to the panel’s ports using standard RJ-45 connectors, ensuring each cable is fully seated and clear of adjacent ports to prevent interference.
• Engage the strain relief bar: position cables through the integrated strain relief bar to maintain tidy, protected routing. This step minimizes connector stress and helps preserve signal integrity during maintenance or reconfigurations.
• Label and verify: label each port clearly and perform a verification test of connectivity to confirm correct pairing and routing. Check airflow and cable congestion to maintain optimal rack density and cooling.

Frequently asked questions

• What is the port count?

  It provides 24 RJ-45 ports for data and voice connectivity.

• What is the form factor?

  It is a 1U high, 19" wide rack-mountable patch panel designed for standard data center racks.

• Does it include a strain relief bar?

  Yes, the panel features an integrated strain relief bar to improve cable management and protect connectors from stress.

• What type of cabling is supported?

  Designed for standard copper Ethernet cabling with RJ-45 modular connectors; commonly used with Cat5e, Cat6, and similar deployments in typical network environments. Always follow manufacturer guidelines for your specific cable category.

• Where is this patch panel best used?

  Ideal for data centers, network closets, and office or enterprise environments that require durable, scalable, and organized patching solutions in a 19" rack.
