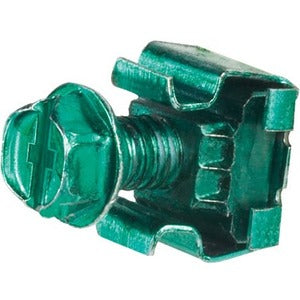

Panduit Bonding Cage Nut Kit — Green, 50 Cage Nuts and 50 Bonding Screws

Optimize enclosure bonding and grounding with the Panduit Bonding Cage Nut Kit, a comprehensive, ready-to-use solution designed for IT racks, electrical enclosures, and data center cabinets. The green bonding cage nut designation signals a bonding-grade component engineered to deliver stable electrical connectivity across multiple mounting points. Each kit includes 50 #12-24 bonding cage nuts that fit panels with a thickness range of.06 to.11 inches, paired with 50 #12-24 x 1/2" bonding screws featuring a versatile #2 Phillips/slotted combo hex head. The combination of durable hardware and standardized thread size helps installers reduce downtime, improve consistency, and ensure secure, vibration-resistant performance in demanding environments. Ideal for integrators and technicians seeking a reliable, ready-to-use bonding solution, this kit supports rapid installations with minimal tool changes. For quick and straightforward installation, a 5/16" or 8 mm socket is recommended, enabling fast engagement without sacrificing precision.

• All-in-one bonding solution: 50 bonding cage nuts and 50 bonding screws provide enough hardware for multiple mounting points, enabling fast, consistent bonding across racks and enclosures.
• Standardized hardware for broad compatibility: #12-24 fasteners are widely used in IT infrastructure, ensuring dependable thread engagement with Panduit cages and standard server cabinet hardware.
• Panel thickness versatility: designed for panels with thickness from.06 to.11 inches (approximately 1.5–2.8 mm), covering most common enclosure and door configurations.
• Green bonding-grade construction: the green color signals bonding-ready components that promote reliable grounding paths in equipment racks and IT environments.
• Tool-friendly installation: all components are optimized for quick setup with a 5/16" or 8 mm socket and a #2 Phillips/slotted combo hex head, reducing installation time and minimizing cross-threading risk.

Technical Details of Panduit Bonding Cage Nut

• Brand: Panduit
• Product: Bonding Cage Nut Kit
• Color: Green
• Includes: 50 x #12-24 bonding cage nuts for panels (.06–.11 in thick) and 50 x #12-24 x 1/2" bonding screws
• Screw head: #2 Phillips/slotted combo hex head
• Recommended drive tool: 5/16" or 8 mm socket
• Thread size: #12-24

how to install Panduit Bonding Cage Nut

Follow these simple steps to achieve secure bonding and grounding in your enclosure:

Step 1: Identify the appropriate cage nut receptor on the panel or enclosure door where bonding is required. Ensure the selected site corresponds to standard 12-24 mounting patterns for reliable alignment.

Step 2: Insert the green bonding cage nut into the receptacle, seating it flush with the panel surface. Confirm that the nut is fully seated and properly oriented to accept the screw from the front or back as dictated by your application.

Step 3: Align the #12-24 x 1/2" bonding screw with the cage nut’s threaded opening. Hand-thread the screw initially to avoid cross-threading and to verify smooth engagement.

Step 4: Use a 5/16" or 8 mm socket to tighten the screw until it is snug. Maintain a straight, axial alignment to prevent binding and ensure an even, secure clamping force across the panel.

Step 5: Repeat the process for each additional mounting point as required by your installation plan. Maintain consistent torque and spacing to preserve reliable grounding and structural integrity throughout the enclosure.

Tip: When mounting multiple points, consider performing a light initial pass on all screws, then go back for a final snug tighten to avoid panel warping or misalignment. This approach helps preserve a clean, professional finish and ensures uniform grounding performance across the entire assembly.

Frequently asked questions

• What is included in the Panduit Bonding Cage Nut Kit? The kit includes 50 #12-24 bonding cage nuts for panels (.06–.11 in thick) and 50 #12-24 x 1/2" bonding screws with a #2 Phillips/slotted combo hex head.
• What panel thickness is supported? The cage nuts are designed for panel thicknesses ranging from.06 to.11 inches (approximately 1.5–2.8 mm).
• What tool is required for installation? A 5/16" or 8 mm socket is recommended to drive the bonding screws, paired with a #2 Phillips/slotted combo head for the screw design.
• What is the purpose of bonding cage nuts? They provide a secure, conductive mounting point that facilitates grounding and bonding between components in enclosures and IT racks, helping to maintain reliable electrical performance.
• Are these compatible with Panduit enclosures and standard 12-24 hardware? Yes, the kit uses standard #12-24 threading, aligning with common Panduit and industry hardware for straightforward integration.
