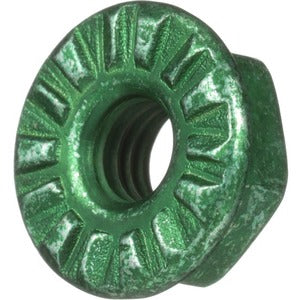

Panduit Bonding Nut for #10-32 Rail Fasteners

The Panduit Bonding Nut is a purpose-built accessory designed to deliver secure, low-resistance electrical bonds in rail-based systems. Engineered specifically for threaded #10-32 rail fasteners, this bonding nut ensures reliable conduction and dependable grounding across electrical panels, enclosures, and industrial installations. Built to Panduit’s exacting standards, it combines precision-fit, durable construction, and straightforward installability to support safe, compliant electrical work in data centers, manufacturing floors, and telecom environments. If you’re upgrading or maintaining a bonded rail network, this bonding nut provides the consistent performance you expect from a trusted brand in grounding and bonding solutions.

• Precision compatibility with #10-32 threaded rail fasteners: The Panduit bonding nut is engineered to mate perfectly with standard rail systems, delivering a secure, low-resistance connection that minimizes contact resistance and impedance across bonded paths. Its tight tolerances help reduce micro-movements during vibration or thermal cycling, preserving conductivity and performance in critical applications.
• High-conductivity construction with corrosion resistance: Crafted from a conductive metal alloy and finished with a protective coating, this bonding nut resists oxidation and wear in demanding environments. The result is stable electrical continuity over the life of the installation, even in humid, dusty, or temperature-variable facilities where bonding integrity matters most.
• Ease of installation and maintenance: Designed for straightforward, tool-assisted installation, the nut accepts standard fasteners and requires no special adapters. It remains secure under vibration and thermal cycling typical of data centers, manufacturing floors, and telecom rooms, reducing maintenance time and downtime.
• Reliability and brand assurance: Panduit is a globally recognized leader in grounding, bonding, and electrical hardware. This bonding nut benefits from Panduit’s quality control, traceability, and compatibility with Panduit rails and accessories, helping you achieve consistent performance and easier procurement.
• Versatile applications across industries: Ideal for electrical panels, grounding buses, equipment enclosures, and other installations requiring dependable bonding for safety and compliance. From industrial automation to data centers, the bonding nut supports a wide range of rail-based bonding configurations.

Technical Details of Panduit Bonding Nut

• Thread compatibility: designed for threaded #10-32 rail fasteners
• Purpose: bonding and grounding connection in electrical rail systems
• Material: conductive metal alloy selected for low-resistance bonding
• Finish: corrosion-resistant coating to extend service life
• Brand and compatibility: Panduit bonding nut engineered to work with Panduit rails and related electrical bonding accessories

How to Install Panduit Bonding Nut

• Step 1 — Prepare and inspect: Before installation, inspect the rail fastener and mating surfaces for wear, damage, or debris. Clean the contact areas with a lint-free cloth to ensure a clean, low-resistance path, and remove any corrosion or corrosion inhibitors that could interfere with conductivity.
• Step 2 — Align the nut with the fastener: Position the Panduit bonding nut over the threaded #10-32 rail fastener so threads engage cleanly. Verify that the bonding surface aligns with the conductor path and that there are no obstructions that could impede full thread engagement.
• Step 3 — Tighten to specification: Thread the nut onto the fastener by hand, then use the appropriate tool to snug it securely. Avoid over-tightening, which can damage threads or deform the contact surfaces and increase resistance. If a torque specification is provided by your facility’s standards, follow that value.
• Step 4 — Verify bond integrity: After installation, test the bond with a continuity tester or bonding meter to confirm a low-resistance path. Perform measurements across the contact surface and under normal operating conditions to ensure stability as temperatures shift and equipment vibrates.
• Step 5 — Document and monitor: Record installation details, including torque values and resistance readings if required by safety or compliance programs. Periodically re-check bonding integrity in high-vibration or high-temperature environments to maintain confidence in electrical continuity over the system’s lifespan.

Frequently asked questions

• What is the Panduit Bonding Nut used for? It provides a secure, low-resistance bonding connection for threaded #10-32 rail fasteners in electrical rail systems, panels, and enclosures, helping to ensure reliable grounding and safe operation.
• What thread size does it fit? It is designed for standard #10-32 threads used on many rail fasteners and bonding assemblies, ensuring compatibility with common Panduit rails and related hardware.
• Is the bonding nut corrosion-resistant? Yes, the nut features a corrosion-resistant coating designed to withstand industrial environments and maintain conductivity over time.
• Can I use it with other brands? The nut is designed to be compatible with Panduit rails; compatibility with non-Panduit systems depends on matching thread size and contact surfaces. When in doubt, verify with your system integrator or supplier.
• How do I ensure a secure bond? Ensure mating surfaces are clean, use the correct torque, and verify continuity with a bonding test after installation. Regular inspections are recommended in high-vibration or corrosive environments.
