Panduit Cassette

PanduitSKU: 12741144

Price:
Sale price$784.99

Description

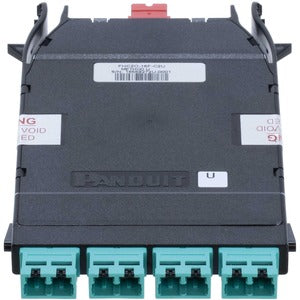

Panduit Cassette HD Flex OM4 MPO to Duplex CS – 16-Fiber High-Density Breakout Cassette

The Panduit HD Flex Cassette is engineered for high-density data center deployments, delivering a scalable, reliable solution for OM4 MPO to duplex CS connectivity. Designed to support 16 fibers in a compact, modular form factor with universal polarity, this cassette enables streamlined cross-connects, simplified routing, and future-ready bandwidth for next-generation networks. With a distinctive black cover, a red MPO 24-fiber connector, and eight CS adapters, it combines rugged construction with precise optical performance, making it ideal for environments where space, organization, and signal integrity matter. This cassette is wired to accommodate 400G to 8x50G breakouts, empowering data centers to scale from today’s demands to tomorrow’s breakthroughs while maintaining low insertion loss and high return loss, ensuring dependable, repeatable performance across the network.

  • High-density 16-fiber design with universal polarity: The HD Flex Cassette consolidates 16 fibers in a compact footprint, enabling dense patching in multi-rack deployments while preserving universal polarity for flexible cross-connections and simplified provisioning.
  • Robust hardware with clear signaling: A black protective cover houses a prominent red MPO 24-fiber connector and eight CS adapters, delivering straightforward identification and easy access for maintenance, cross-connects, and reconfigurations without compromising performance.
  • Future-ready breakout capability: Engineered to support 400G to 8x50G breakouts, this cassette provides a seamless path to higher bandwidths, enabling data centers to evolve without swapping major infrastructure components and reducing downtime during upgrades.
  • OM4 multimode efficiency for demanding links: Built on OM4 multimode fiber, the cassette offers low-loss transmission with strong bandwidth for short- to medium-reach connections, delivering consistent performance in high-traffic, latency-sensitive networks.
  • Integrated into Panduit’s modular ecosystem: Designed to harmonize with Panduit’s accessory lineup and standard MPO to duplex CS transitions, the cassette supports scalable, standardized installations and easier lifecycle management across the data center.

Technical Details of Panduit Cassette

  • Product family: HD Flex Cassette
  • Fiber type: OM4 multimode
  • Fiber count: 16 fibers total
  • Connector configuration: 1 red MPO 24-fiber connector
  • Adapters: 8 CS adapters
  • Polarity: Universal polarity
  • Cover color: Black
  • Breakout support: Wired for 400G to 8x50G breakouts
  • Application: High-density MPO to duplex CS restructuring for data centers and enterprise networks

How to install Panduit Cassette

  • Prepare the installation: Verify compatibility with the chassis or cabinet, confirm OM4 fiber availability, and ensure power is off before handling the cassette to prevent electrostatic discharge or accidental damage.
  • Open and inspect: Remove the cassette from its protective packaging, inspect the connectors and adapters for cleanliness and any signs of damage, and confirm the eight CS adapters are properly seated.
  • Mount in the chassis: Align the cassette with the designated slot in the patch panel or switch block, slide it into place until it seats firmly, and secure with the appropriate mounting hardware to prevent movement during operation.
  • Connect the MPO trunk: Take the OM4 MPO trunk cable and connect it to the red MPO 24-fiber connector on the cassette, ensuring a clean, secure seating with the correct polarity and no strain on the connector.
  • Relay to duplex CS endpoints: Attach the eight CS adapters to their corresponding duplex CS receivers or transmitters, routing fibers as required by your network design, and verify that each connection aligns with the universal polarity configuration.
  • Manage and test: Use Panduit cable management accessories to route and label fibers for traceability, then perform a basic light integrity test (continuity, loss checks) to confirm proper coupling and to identify any potential issues before full deployment.

Frequently asked questions

  • Q: What is the primary purpose of the Panduit HD Flex Cassette? A: It serves as a high-density MPO to duplex CS transition module, enabling 16-fiber connectivity with universal polarity and ready-made breakout options for 400G to 8x50G configurations in data centers and enterprise networks.
  • Q: How many fibers does the cassette support? A: The cassette supports a total of 16 fibers, arranged to maximize density while maintaining reliable signal integrity across the link.
  • Q: What does the red MPO 24-fiber connector indicate? A: The red MPO 24-fiber connector is the primary trunk interface that aggregates multiple fibers into the cassette, enabling efficient distribution to the eight CS adapters for duplex connectivity.
  • Q: What is universal polarity, and why is it important? A: Universal polarity means the cassette can be deployed without concern for a strict left-right fiber mapping, simplifying cross-connects and improving flexibility when rearranging or expanding the network.
  • Q: Can this cassette support 400G deployments? A: Yes. The HD Flex Cassette is wired for 400G to 8x50G breakouts, allowing rapid scaling as network bandwidth requirements increase.
