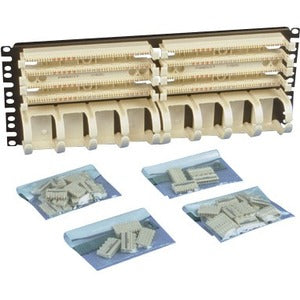

Panduit Connector Block for 19" Rack-Mount Panels

Discover a premier Panduit connector solution engineered for dense, organized, and scalable data and telecom wiring. This Panduit Connector Block combines two 100-pair bases and jumper troughs premounted to a standard 19" rack-mount panel, delivering a streamlined footprint with exceptional cable management. Designed for high-density installations, this block makes it easy to deploy, maintain, and expand cross-connect systems in data centers, network closets, and mission-critical infrastructure. The included 4-pair connector kit ensures you have the right termination options right at hand, with five 4-pair connectors and one 5-pair connector allocated per row of 25 pairs, enabling precise, repeatable configurations that minimize miswiring and downtime. Built for reliability and long service life, this block supports clean organization, easy labeling, and efficient troubleshooting, while remaining compatible with standard Panduit accessories and 19" rack architecture. Whether you’re upgrading legacy cabling, consolidating a patch panel, or deploying new fiber and copper interconnects, this Panduit solution provides a solid foundation for scalable, high-performance networks.

• Two 100-pair bases premounted to a 19" rack-mount panel, delivering high-density capacity without sacrificing ease of access or serviceability.
• Jumper troughs premounted for clean, route-stable cabling paths that reduce tangling, simplify maintenance, and improve signal integrity across the block.
• Includes a 4-pair connector kit: five 4-pair connectors and one 5-pair connector per row of 25 pairs, enabling flexible termination schemes and orderly row-by-row organization.
• Designed for rapid deployment in standard 19" racks, the assembly aligns with common IT and telecom rack standards, ensuring straightforward integration into existing infrastructure.
• Durable construction and thoughtful cable management features reduce installation time, extend service life, and support scalable growth as your network evolves.

Technical Details of Panduit Connector Block

• Configuration: Two 100-pair bases premounted on a 19" rack-mount panel, enabling dense 200-pair capacity across the assembly.
• Jumper management: Premounted jumper troughs to support clean routing and easy cable tracing.
• Connector kit included: Five 4-pair connectors and one 5-pair connector per row of 25 pairs, allowing flexible arrangement and straightforward re-termination if plans change.
• Row capacity and organization: 25 pairs per row, designed to keep high-density wiring neatly segmented and accessible for testing, labeling, and maintenance.
• Panel and form factor: Standard 19" rack-mount panel compatible with standard IT and telecom rack systems, enabling seamless integration into existing enclosures.
• Compatibility: Built to align with Panduit accessories and termination solutions, promoting cohesive system optimization and consistent performance.

How to Install Panduit Connector Block

• Prepare the installation area: Verify that your rack space is clean, stable, and rated for the weight and density of the connector block once cables are terminated and organized.
• Mount the 19" rack-mount panel: Secure the panel to the rack using appropriate mounting hardware and ensure it is level and accessible for cabling during termination and testing.
• Attach bases and troughs: Confirm that the two 100-pair bases are correctly seated on the panel and that the premounted jumper troughs align with the desired cable paths for your workspace.
• Route and terminate cables: Begin routing copper or fiber interconnects into the appropriate channels, following your labeling scheme and the row-per-25-pairs configuration. Use the five 4-pair connectors and one 5-pair connector per row of 25 pairs as designated to achieve the intended terminations.
• Label, test, and document: After termination, apply clear labels to each row and pair, perform continuity or diagnostic tests as required, and document the wiring scheme for future maintenance and upgrades.
• Final inspection: Inspect cable slack, ensure neat organization, verify connector seating, and confirm that all paths are free of sharp bends or compression that could affect performance.

Frequently asked questions

• What is included with the Panduit Connector Block? — The assembly includes two 100-pair bases premounted on a 19" rack-mount panel, premounted jumper troughs, and a 4-pair connector kit consisting of five 4-pair connectors plus one 5-pair connector per row of 25 pairs.
• What rack size does this product fit? — It is designed for standard 19" rack-mount installations, aligning with common data center and telecom rack configurations for straightforward integration.
• How many pairs can be organized per row? — Each row supports 25 pairs, with the kit arranged to provide five 4-pair connectors and one 5-pair connector per row, enabling scalable, orderly termination patterns.
• Is this Panduit connector block compatible with other Panduit accessories? — Yes, the design is intended to work with Panduit termination solutions and accessories, promoting cohesive system design and reliable performance across components.
• What are the advantages of premounted bases and troughs? — Premounted components reduce installation time, minimize cabling confusion, support better cable management, and provide a stable foundation for reliable, repeatable terminations in dense environments.
