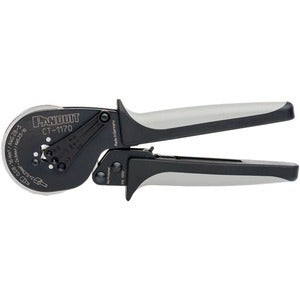

Panduit CT-1170 Controlled Cycle Crimp Tool
The Panduit CT-1170 Contour Crimp Ferrule Crimp Tool is engineered for precision, efficiency, and long-term reliability in high-volume electrical terminations. With a square-profile head and a controlled-cycle mechanism, this tool delivers high-quality ferrule crimps that are consistently uniform across large production runs. Designed for professional installers, panel builders, and manufacturing environments, the CT-1170 minimizes operator variability while maximizing crimp accuracy, ultimately improving overall wiring integrity and reducing rework. The ergonomic grip and multi-position locator enhance operator comfort and convenience, enabling precise work in a variety of positions and spaces. Built to withstand daily use in industrial settings, the CT-1170 pairs with Panduit Contour Ferrule Crimp Ferrules to deliver a flush, dependable termination that stands up to vibration, thermal cycling, and environmental exposure. Whether you’re wiring control panels, power distribution blocks, or automotive-grade assemblies, this tool provides the repeatability and quality that professionals demand. Its square-profile design aligns perfectly with ferrule barrels, helping ensure seating is square and consistent every time. In addition to performance benefits, the CT-1170 supports streamlined training and onboarding, as technicians quickly learn the controlled-cycle workflow and achieve repeatable results from the first job to the last. For teams seeking to maintain high workmanship standards with speed and confidence, the CT-1170 is a dependable choice that integrates well into established Panduit ferrule systems and manufacturing processes. The combination of durable construction, user-focused ergonomics, and precise control makes the CT-1170 an essential partner for reliable electrical terminations in industrial, commercial, and field service environments.
- Controlled-cycle precision: A built-in mechanism limits stroke and delivers uniform crimps, ensuring every ferrule is seated and compressed correctly for dependable electrical connections. This reduces variations between operators and shifts, supporting consistent quality on every termination. The result is fewer reworks, faster throughput, and a professional, repeatable crimp profile across your panel assemblies.
- Contour ferrule compatibility: Specifically optimized for Panduit Contour Ferrule Crimp Ferrules, providing clean, square crimps with a neat, professional finish. The tool’s geometry aligns with the ferrule’s contour, promoting a precise seat and minimizing misalignment that can compromise conductivity or mechanical security.
- Square-profile head: The unique square profile aligns with ferrule barrels, promoting exact positioning and reducing the chance of mis-crimps or slippage during operation. This design supports rapid, accurate placement even in tight spaces, helping technicians achieve a high-quality finish with minimal effort.
- Ergonomic grip with multi-position locator: The handle design reduces hand fatigue on long jobs and the locator offers flexible positioning to suit operator preference and access in tight spaces. The ergonomic balance improves control during repetitive cycles, contributing to consistent crimps and a more comfortable user experience over the course of a full workday.
- Durable build for high-volume use: Built to withstand repetitive cycles in industrial settings, with robust construction and a corrosion-resistant finish to extend tool life. The CT-1170 is designed for reliability in production lines, field service, and installation projects where durability and performance are essential.
Technical Details of Panduit CT-1170
- Model: CT-1170
- Type: Contour Crimp Ferrule Crimp Tool
- Crimping mechanism: Controlled-cycle
- Profile: Square
- Grip: Ergonomic with multi-position locator
- Material: Steel construction with protective finish
- Compatibility: Panduit Contour Ferrule Crimp Ferrules
How to install Panduit CT-1170
- Inspect the tool before use to ensure there are no visible damages and that the controlled-cycle mechanism moves freely. If any issue is detected, do not operate the tool until it has been serviced.
- Load the Panduit Contour Ferrule Crimp Ferrule into the tool according to the ferrule manufacturer’s instructions, aligning the ferrule squarely with the crimp head for proper seating.
- Grip the handle with a comfortable, neutral wrist position and engage the multi-position locator to reach the desired orientation for the task, maximizing access in constrained spaces.
- Depress the handles smoothly to initiate the crimp. The CT-1170’s controlled-cycle action completes the crimp with consistent pressure and then resets automatically for the next cycle, reducing operator fatigue and variability.
- Release and inspect the crimped ferrule. Verify that the ferrule is fully seated and the crimp profile is square and uniform. If adjustments are needed, reposition and repeat to maintain quality across terminations.
Frequently asked questions
-
Q: What makes the CT-1170 a preferred choice for professional installers?
A: The controlled-cycle mechanism ensures consistent, repeatable crimps with minimal operator variation, while the ergonomic grip reduces fatigue during long-term use. The square-profile head also helps ensure alignment from the first cycle onward. -
Q: Is the CT-1170 compatible with other ferrules?
A: The CT-1170 is designed for Panduit Contour Ferrule Crimp Ferrules. For best results, use Panduit ferrules specified for this tool, and follow Panduit installation guidelines to ensure optimal performance. -
Q: How many cycles can the CT-1170 perform before maintenance is required?
A: The tool is built for high-volume use and requires routine inspection, cleaning, and occasional lubrication of pivot points; consult the user manual for maintenance intervals and service recommendations. -
Q: Can the CT-1170 be used in tight spaces?
A: Yes, the multi-position locator and compact square-profile head facilitate access in constrained areas, though workspace clearance should always be considered to ensure safe and effective operation. -
Q: Where can I buy genuine Panduit CT-1170 replacement parts?
A: Replacement parts and accessories are typically available from authorized Panduit distributors and the retailer from which you purchased the tool. Check Panduit’s official channels or your authorized supplier for the most current parts list and compatibility.
