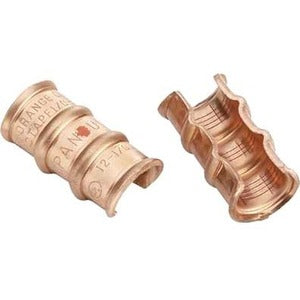

Panduit CTAPF2-12-C Copper Compression Tap (100 pcs)
Engineered for reliability in professional electrical installations, the Panduit CTAPF2-12-C Copper Compression Tap delivers secure tapping into unbroken main lines with premium conductivity. This 100-piece pack is designed for installers, maintenance teams, and service operations that demand consistent performance, dependable joints, and fast, repeatable results. The CTAPF2-12-C employs high-grade copper compression technology to minimize contact resistance and maximize electrical efficiency across demanding environments, from panel boards and distribution enclosures to service entrances and industrial wiring closets. Its robust design supports solid and stranded copper Code conductors, enabling tapping into main runs as a wire joint or two-way splice with confidence. In addition to electrical performance, the taps are built for durability, providing stable connections that resist loosening due to vibration, thermal cycling, or mechanical stress. This makes the CTAPF2-12-C an ideal choice for both new installations and field maintenance where reliability and long-term integrity are critical.
- Premium copper compression tap design: Delivers low contact resistance and superior conductivity, ensuring efficient power transfer and dependable performance under load. The copper construction also offers excellent corrosion resistance, contributing to long service life in challenging environments and in conditions where moisture or humidity is a consideration. The result is a reliable, low-impedance connection that helps electrical systems run cooler and more efficiently, reducing energy loss over time.
- Solid and stranded copper Code conductor compatibility: The CTAPF2-12-C is optimized for use with both solid and stranded copper Code conductors, enabling tapping into unbroken main lines as a wire joint or two-way splice. This versatility simplifies material planning and reduces the need for multiple different tap sizes on site. By accommodating a wide range of conductor configurations, it supports quick, flexible installations without compromising joint integrity or electrical performance.
- Wide wire range-taking capability for streamlined inventories: The design accommodates an expansive conductor range, enabling installers to manage fewer part numbers without sacrificing connection quality. This broad compatibility helps contractors and facilities teams optimize inventory, reduce stocking costs, and speed up project timelines. With a reliable compression mechanism and consistent seating, you can count on uniform performance across different conductor sizes and applications.
- Secure crimp-based connection for reliability in the field: The CTAPF2-12-C uses a proven crimp-based compression process that yields uniform, vibration-resistant joints. Crimping provides consistent compression force, minimizes the risk of loosening from mechanical shocks or thermal cycling, and supports repeatable results across multiple installations. This reliability is especially valuable in environments with ongoing vibration, equipment movement, or frequent temperature changes.
- Value-packed pack size for bulk projects: Each order contains 100 pieces, offering a cost-effective solution for large-scale deployments, maintenance programs, or manufacturing environments where high-volume taps are routine. The 100-piece pack ensures you have ample taps on hand for ongoing work, reducing downtime and enabling fast, efficient installations without frequent reorders. Panduit’s quality assurance accompanies every pack to help you meet project timelines with confidence.
Technical Details of Panduit CTAPF2-12-C Copper Compression Tap
- Model: CTAPF2-12-C
- Product Type: Copper compression tap
- Material: Copper (annealed for improved ductility and ease of seating)
- Conductor Type: Solid and stranded copper Code conductors
- Pack Content: 100 pieces
- Applications:Tapping into unbroken main, wire joints, and two-way splices
- Finish: Natural copper/annealed copper for consistent crimping and reliable seating
- Compatibility: Designed for use with standard compression tooling recommended by Panduit
How to install Panduit CTAPF2-12-C Copper Compression Tap
- Power down the circuit and verify it is de-energized before beginning installation. Safety first ensures accurate crimping and protects personnel and equipment.
- Select the CTAPF2-12-C tap appropriate for the conductor and project requirements. Confirm that the conductor type (solid or stranded copper Code conductors) and size fall within the tap’s compatibility range.
- Prepare the conductors by cutting to the required length and, if needed, deburring the ends. Remove any insulation according to Panduit guidelines to expose a clean conductor finish ready for compression.
- Insert the conductor fully into the compression tap seat, ensuring proper alignment with the crimping interface. Use a Panduit-recommended crimping tool and the correct die to achieve full seating and uniform compression.
- Apply the crimp with consistent pressure until the joint fully seats and seats with a uniform, smooth appearance. Inspect the joint for proper compression and signs of misalignment, then perform a continuity check and insulation verification to confirm a secure, high-integrity connection.
Frequently asked questions
-
Q: What conductors does CTAPF2-12-C support?
A: The CTAPF2-12-C is designed for solid and stranded copper Code conductors, enabling reliable tapping into main lines as a wire joint or two-way splice. It provides versatility across common copper wiring configurations used in electrical distribution and panel work.
-
Q: How many pieces are in the package?
A: Each package contains 100 copper compression taps, making it suitable for bulk installations, maintenance programs, and jobs that require repeated tapping and splicing with consistent quality.
-
Q: Is there a specific crimping tool recommended for installation?
A: Yes, Panduit recommends using the appropriate crimping tooling designed for compression taps of this type to ensure fully seated, uniform joints and to preserve the integrity of the connection under electrical load and mechanical vibration.
-
Q: Can CTAPF2-12-C be used for both new installations and field maintenance?
A: Absolutely. The robust copper construction, reliable compression mechanism, and wide conductor compatibility make CTAPF2-12-C well-suited for both new builds and ongoing maintenance scenarios where dependable taps are critical for system integrity.
