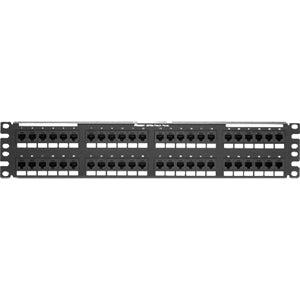

Panduit DP48688TG 48-Port Network Patch Panel

Designed for high-density networks that demand reliability and clarity, the Panduit DP48688TG 48-Port Network Patch Panel delivers uncompromising performance in a robust, easy-to-install package. This panel is engineered to withstand the rigors of data-center environments and evolving Ethernet standards, offering meticulous port-level traceability, durable termination, and straightforward labeling. Each port is 100% tested to ensure NEXT and RL performance, with individual serialization to support precise asset management and fault isolation. The back panel utilizes 110 punchdown termination for quick, secure connections, while retention caps are included for every port to preserve cable integrity and protect against dust ingress. The universal labeling on each port is color-coded for both T568A and T568B wiring schemes, ensuring rapid, error-free cross-connection in mixed environments and simplifying moves, adds, and changes. With these features, the DP48688TG is an ideal solution for network closets, server rooms, and enterprise wiring installations that require scalable, organized, and audit-ready patching solutions.

• 100% NEXT and return loss (RL) tested on every port, delivering dependable signal integrity for high-speed links. This rigorous testing helps minimize link failures, reduces downtime, and supports scalable network upgrades as your data center grows. The serialization of each port adds traceability, enabling precise asset tracking, warranty verification, and rapid fault diagnosis across large installations.
• 110 punchdown termination on the back panel provides a proven, durable method for copper cabling termination. The design aligns with industry standards for reliable terminations, making field work straightforward and repeatable. This back-panel termination helps maintain consistent impedance and reduces installation variances that could affect performance in high-density environments.
• Individually serialized ports for comprehensive traceability. Asset managers can easily map each port to its corresponding device, port description, and patch cable, supporting efficient audits, serviceability, and change management. Serialization also enhances warranty tracking and helps maintain accurate inventory control across multiple cabinets and racks.
• Universal port labels color-coded for T568A and T568B wiring schemes. This feature simplifies cross-wiring and moves across mixed environments, allowing technicians to configure patches quickly without double-checking documentation. The color-coding minimizes miswiring risk, improves first-pass wiring accuracy, and accelerates deployment in multi-vendor networks.
• Retention caps included for each port to protect terminated conductors and maintain clean, dust-free terminations. The caps help preserve performance over time by reducing environmental exposure and maintaining orderly cable management. This small accessory contributes to long-term reliability in dense rack environments and simplifies ongoing maintenance tasks.

Technical Details of Panduit DP48688TG

• Product: Panduit DP48688TG 48-Port Network Patch Panel
• Port Count: 48 ports
• Termination: Back-panel 110 punchdown termination
• Labeling: Universal labels, color-coded for T568A and T568B
• Testing: 100% NEXT and RL performance testing on all ports
• Serialization: Each port individually serialized for traceability
• Retention Caps: Included for every port
• Rack Compatibility: Designed for standard 19-inch racks (1U height is typical for this density)
• Construction: Steel chassis with durable build for demanding environments
• Industry Use: Suitable for data centers, wiring closets, and enterprise networks requiring high-density patching

How to Install Panduit DP48688TG

Installing the DP48688TG is straightforward and designed to integrate with standard network racks and cabling practices. Follow these steps to ensure a clean, reliable deployment that maximizes performance and longevity:

• Prepare the rack: Confirm that you have a standard 19-inch rack or cabinet that can accommodate a 1U, 48-port patch panel. Ensure there is adequate space for cable management accessories and sufficient airflow around the panel.
• Position and mount: Align the DP48688TG with the rack rails and secure it using the appropriate screws through the mounting holes. Tighten securely to prevent any panel movement that could stress terminations during cable pulls or rearrangements.
• Organize backbone and distribution: Plan the backbone cabling and distribution scheme, labeling cables for end devices or switch ports before termination. This proactive planning supports efficient moves, adds, and changes (MACs) and minimizes cross-connection errors during commissioning.
• Terminate with 110 punchdown: Using a compatible 110 punches tool, terminate the back-panel conductors into the patch panel according to the chosen wiring scheme (T568A or T568B). Maintain consistent sequence and verify each termination for solid contact. The DP48688TG’s back panel is designed to facilitate repeatable, high-quality terminations with minimal force and maximum stability.
• Label and secure: Apply the universal color-coded labels on each port, matching the cabling scheme in use. Place retention caps on each port to protect terminations from dust and physical contact. Route cables with adequate slack and neat management using cable ties and organizers to prevent bending or stress on terminations.
• Test and document: Perform a post-termination test to confirm NEXT and RL performance per port. Document port mappings and port labels for future maintenance. This step ensures traceability and supports effective troubleshooting should issues arise later in the lifecycle.
• Finalize management: Install any required cable management accessories, such as horizontal or vertical organizers, to maintain airflow and accessibility. Confirm that all cables are clearly labeled and that the panel remains accessible for future MAC operations while maintaining a tidy, professional appearance.

Frequently Asked Questions

• Q: How many ports does the Panduit DP48688TG support? A: It supports 48 ports, providing high-density capacity in a 1U form factor suitable for standard 19-inch racks.
• Q: What termination method is used on the back panel? A: The back panel uses 110 punchdown termination, a widely adopted and reliable method for copper cabling, ensuring stable and repeatable connections.
• Q: Are the ports labeled for multiple wiring schemes? A: Yes. Each port carries a universal label color-coded for both T568A and T568B wiring schemes to simplify installation and changes in mixed environments.
• Q: Is port-level traceability available? A: Absolutely. Each port is individually serialized to support traceability, asset management, and efficient fault isolation across large installations.
• Q: Do retention caps come with the panel? A: Yes. Retention caps are included for every port to protect terminations, reduce dust ingress, and maintain organized cable management.
