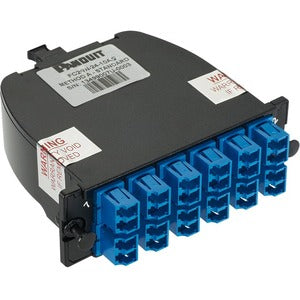

Panduit FC29N-24-10AS Network Patch Panel

PanduitSKU: 12729128

Price:
Sale price$1,068.89

Description

Panduit FC29N-24-10AS Network Patch Panel

The Panduit FC29N-24-10AS Network Patch Panel is a high-density, fiber-ready solution designed for data centers and enterprise networks that demand reliable, scalable terminations. Engineered to support OS1/OS2 fiber with a total of 24 fibers, this patch panel delivers a streamlined, organized path from backbone cabling to distribution, enabling easier maintenance, faster upgrades, and consistent performance across fiber runs. With a LC duplex adapter cassette tailored to your fiber type, it optimizes signal integrity while reducing complexity in cable management and patching workflows. Built around Panduit’s renowned quality and compatibility with standard 19-inch racks, the FC29N-24-10AS is ideal for deploying fiber infrastructure that can grow with your network needs while maintaining tight loss budgets and durable construction.

  • 24-fiber total capacity aligned with OS1/OS2 fiber, enabling high-density, future-ready fiber terminations in a single panel.
  • LC duplex adapter cassette configuration, with color and split sleeve determined by fiber type to ensure correct identification and optimal light transmission.
  • Standard Method A termination approach enhances consistency and predictability of connector loss across all terminations.
  • 19-inch rack-mountable chassis designed for data centers and telecom rooms, delivering secure mounting and organized cable management.
  • Robust Panduit build quality with thoughtful cable routing, ideal for busy deployment environments where reliability and serviceability matter most.

Technical Details of Panduit FC29N-24-10AS

  • Fiber count: 24 fibers (OS1/OS2 total)
  • Adapter cassette: LC duplex; color and split sleeve dictated by fiber type
  • Loss characteristics: Standard loss as specified for OS1/OS2 24-fiber terminations
  • Termination method: Standard Method A
  • Mounting: 19-inch rack-mountable panel for industry-standard deployments
  • Recommended use: Data centers, enterprise networks, and other fiber-optic patching environments requiring high density and reliable performance

how to install Panduit FC29N-24-10AS

  • Prepare your 19-inch rack space and ensure proper clearance for cable routing and future expansion.
  • Mount the FC29N-24-10AS into the rack, securing it with appropriate screws to ensure stability and minimize vibration.
  • Plan fiber routes from OSS/OSP dem arc to the panel, labeling each fiber path to maintain a clear and repeatable patching scheme.
  • Install the LC duplex adapter cassette corresponding to your OS1/OS2 fiber type, ensuring the color and split sleeve align with your fiber inventory.
  • Terminate each fiber according to Standard Method A, maintaining proper cleanliness and alignment to minimize insertion loss.
  • Route cables using Panduit cable management accessories, secure slack management, and label patches for simple future upgrades.
  • Test each channel with appropriate optical testing equipment (OTDR or power meter), validate loss budgets, and document results for future reference.

Frequently asked questions

  • Q: What fiber types does the FC29N-24-10AS support? A: It is designed for OS1/OS2 fiber with a total capacity of 24 fibers, enabling mixed or single-mode deployments as required by the network design.
  • Q: How many fibers can be terminated in this patch panel? A: The FC29N-24-10AS supports 24 fibers in a single panel, offering high-density termination for efficient data center cabling.
  • Q: What kind of adapters are included? A: The panel uses a LC duplex adapter cassette; the color and split sleeve are dictated by the specific fiber type used in the installation, helping with easy identification and correct assembly.
  • Q: What mounting options does this patch panel offer? A: It is designed for standard 19-inch racks, providing a secure, industry-standard mounting platform suitable for data centers and telecom rooms.
  • Q: What is the expected performance and loss characteristics? A: The FC29N-24-10AS follows Panduit’s standard loss metrics for OS1/OS2 24-fiber terminations, with loss budgets determined by the chosen cassette and fiber type; proper cleaning and installation will help ensure optimal performance.
