Panduit FiberRunner® Inside Vertical 45 Degree

PanduitSKU: 12732351

Price:
Sale price$490.32

Description

Panduit FiberRunner Inside Vertical 45 Degree

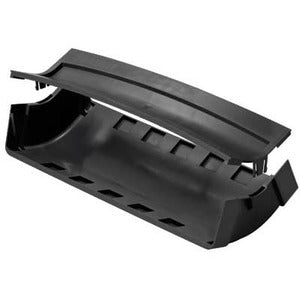

The Panduit FiberRunner Inside Vertical 45 Degree elbow is a precision-crafted component engineered to seamlessly shift a straight fiber pathway up at a 45-degree angle within the FiberRunner system. Designed for high-density cabling environments, it ensures orderly, scalable cable management without compromising bend radii or system integrity. When paired with the outside vertical 45-degree fitting, FROV4524X4LBL, this inside elbow provides a clean, reliable method to change the level of a horizontal run while maintaining a continuous, protected conduit for fiber lines. Whether you’re populating data centers, enterprise server rooms, telecom closets, or industrial facilities, this elbow helps you navigate tight spaces, align with rack configurations, and preserve cable performance through thoughtful, modular design. The result is a neater install, easier maintenance, and improved airflow dynamics around dense cabling layouts.

  • Efficient level change: Creates a precise 45° uplift from a straight horizontal FiberRunner run, enabling smooth transitions between tiers or rack levels without bending or kinking cables. This setup supports orderly vertical progression within straight channel runs, simplifying routing in constrained spaces.
  • Compatibility with FiberRunner 24x4: Specifically designed for the FiberRunner 24x4 channel system, ensuring a secure fit and consistent pathway geometry. Its integration with other FiberRunner components helps maintain a uniform look and predictable performance across the entire cabling installation.
  • Durable construction: Built from robust steel with a durable, corrosion-resistant finish to withstand the rigors of data centers, server rooms, and telecom environments. The rugged build helps maintain performance and appearance over time in environments with temperature and humidity variations.
  • Seamless compatibility with FROV4524X4LBL: Works in concert with the outside vertical 45° angle fitting to provide a complete level-change solution for straight horizontal runs. This pairing enables installers to achieve precise elevation changes without disrupting existing cable pathways.
  • Modular, easy-to-spec build: Part of the Panduit FiberRunner family, designed for quick incorporation into existing or new installations. The inside vertical 45-degree elbow supports modular assembly, scalable layouts, and straightforward field replacement or upgrades as network needs evolve.

Technical Details of Panduit FiberRunner Inside Vertical 45 Degree

  • Product type: Inside Vertical 45 Degree elbow for FiberRunner
  • System compatibility: FiberRunner 24x4 channel
  • Angle: 45-degree uplift to change level of a horizontal run
  • Material: Steel with corrosion-resistant coating
  • Finish: Powder-coated for durability (color may vary by batch)
  • Color: Typically gray/black depending on production run
  • Packaging: Sold as an individual elbow; intended to be paired with the corresponding outside vertical 45° fitting
  • Application: Indoor use in data center, data/telecom room, and rack environments to maintain channel grounding, routing clarity, and bend control

How to install Panduit FiberRunner Inside Vertical 45 Degree

Installing the FiberRunner Inside Vertical 45 Degree elbow is a straightforward process designed to integrate with the 24x4 FiberRunner channel. Follow these general steps to achieve a reliable, code-compliant level change in your cabling pathways:

  1. Prepare the installation area by verifying the existing FiberRunner layout and confirming the intended elevation change. Ensure surfaces are clean and free of debris that could impede mounting or alignment.
  2. Identify the straight horizontal FiberRunner segment where a level transition is required. Confirm that the inside vertical 45-degree elbow matches the channel dimensions (24x4) and is the correct orientation for the intended run.
  3. Align the inside vertical elbow with the top edge of the 24x4 channel, ensuring that the elbow seats flush within the channel grooves. The design is intended for a secure snap-fit alignment with the channel.
  4. Insert the elbow into the channel, applying even pressure along the joint to engage any internal locking features. Verify that the elbow is firmly seated and that there is no gap between the elbow and the channel to prevent cable movement or exposure to edge strain.
  5. Join the outside vertical 45° fitting (FROV4524X4LBL) at the corresponding termination point to complete the level-change assembly. Route cables following the new 45° ascent, then secure and organize cables within the FiberRunner system using appropriate clips or ties, maintaining proper bend radius and separation from adjacent components.
  6. Inspect the completed run for clearance, alignment, and cable routing accuracy. Confirm that the overall pathway maintains performance standards for fiber transmission and does not introduce excess tension or compression on any fiber or module in the design.

Frequently asked questions

  • What is the purpose of the FiberRunner Inside Vertical 45 Degree? It enables a controlled 45° upward transition from a horizontal FiberRunner channel, allowing level changes in cable pathways while preserving a clean, organized routing system.
  • What components work with this elbow? It is designed for use with the FiberRunner 24x4 channel and pairs with the outside vertical 45° angle fitting, FROV4524X4LBL, to achieve a complete level-change assembly.
  • What material is the elbow made from? The elbow is constructed from steel with a durable, corrosion-resistant powder-coated finish appropriate for data center and telecom environments.
  • Can I use this elbow in existing installations? Yes, as long as the installation uses the FiberRunner 24x4 channel system and the corresponding outside 45° fitting, you can add this inside elbow to change the level of a horizontal run.
  • How many elbows are included per package? The elbow is typically sold as a single piece per unit, with packaging variations depending on the supplier or SKU in use.
  • Does this elbow affect bend radius or cable performance? No. The design maintains the proper bend radius and supports reliable fiber routing when installed per the system guidelines.
