Panduit HD Flex 4-to-1 Breakout Cassettes

PanduitSKU: 12741496

Price:
Sale price$377.82

Description

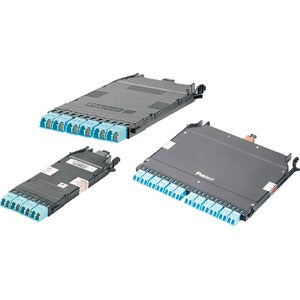

Panduit HD Flex 4-to-1 Breakout Cassettes

HD Flex™ Fiber Optic Cassettes by Panduit deliver a scalable, high-density solution designed to simplify data center fiber management while supporting both Ethernet and Fibre Channel networks. These cassettes are engineered to maximize port density in modern HD Flex frames, pairing flexibility with reliability. Available in 4-port, 6-port, and 12-port configurations, they offer a range of connector options on both the front and back to accommodate diverse topologies. Whether you’re building a new data center or upgrading an existing one, HD Flex cassettes enable streamlined termination, easier maintenance, and efficient cable routing, all within a compact footprint.

  • High-density fiber deployment: 4-to-1 breakout design optimizes port density in Panduit HD Flex frames, reducing rack space while expanding capacity for growth in Ethernet and Fibre Channel networks.
  • Versatile configurations: Choose from 4-port, 6-port, or 12-port cassettes to match your network topology, bandwidth requirements, and light-path planning with compatible splice cassettes and adapter/coupling modules.
  • Rich connector options: Front and back connectors are available in multiple types to align with your fiber plant, enabling flexible terminations and simplified field repairs without sacrificing performance.
  • Integrated cable management: Designed to work with Panduit’s HD Flex ecosystem, the cassettes support clean routing, organized splicing, and easy label integration for efficient data center operations.
  • Reliable performance and maintenance: Engineered for consistent insertion loss and repeatability, these cassettes are built to withstand demanding data center environments and facilitate straightforward maintenance and upgrades.

Technical Details of Panduit HD Flex 4-to-1 Breakout Cassettes

  • Configuration: 4-port breakout architecture within the HD Flex framework, optimized for high-density fiber terminations.
  • Port options: Available in 4-port, 6-port, and 12-port configurations to support scalable deployments and flexible network designs.
  • Connector variety: Front and back connector options tailored to common fiber standards (LC, SC, FC, and other variants depending on model) to suit different networks and patching strategies.
  • Integration: Fully compatible with Panduit HD Flex splice cassettes and adapter/coupling modules for flexible termination, testing, and future upgrades.
  • Materials and durability: Built for data center reliability with robust construction that maintains low insertion loss and high repeatability under routine maintenance and cable movement.
  • Environmental suitability: Designed for standard data center environments with considerations for heat, dust, and wear, while complying with applicable industry standards and best practices for fiber management.

How to Install Panduit HD Flex 4-to-1 Breakout Cassettes

  • Prepare the frame: Confirm the HD Flex frame or enclosure is compatible with 4-to-1 breakout cassettes and verify the mounting locations align with your planned topology. Confirm power, cooling, and cable management provisions before installation.
  • Mount the cassette: Secure the 4-to-1 breakout cassette into the designated slot within the HD Flex frame using the manufacturer’s mounting hardware. Ensure the cassette sits firmly and aligns with the frame rails for proper connector alignment.
  • Route and terminate fibers: Bring fiber pigtails, jumper cables, or backbone cables to the cassette. Attach the front and back connectors as required (depending on model), then proceed with termination using splice cassettes or adapter/coupling modules as per your network design.
  • Label and organize: Apply clear labeling to each port and fiber path to enable quick diagnostics and routine maintenance. Use Panduit labeling solutions to maintain consistency across the data center.
  • Test and validate: After termination, test each link for continuity, loss, and return loss. Verify data paths for Ethernet and Fibre Channel traffic, and confirm the correct routing path for each breakout to ensure optimal performance.

Frequently asked questions

  • What is an HD Flex 4-to-1 Breakout Cassette? It is a high-density fiber optic module within the Panduit HD Flex family that consolidates multiple fiber paths into a single breakout configuration, enabling efficient terminations and scalable network layouts.
  • What networks does it support? The cassettes are designed to support both Ethernet and Fibre Channel networks, making them suitable for data center topologies requiring flexible fiber terminations and reliable performance.
  • What port configurations are available? Panduit HD Flex cassettes come in 4-port, 6-port, and 12-port configurations, allowing you to tailor port density to your specific deployment goals and frame capacity.
  • What connector options exist? Front and back connectors are available in various types (such as LC, SC, FC variants) depending on the model, enabling compatibility with a wide range of fiber cables and devices.
  • Are these cassettes compatible with other HD Flex components? Yes, they are designed to integrate with Panduit HD Flex splice cassettes and adapter/coupling modules to provide flexible termination solutions and easy upgrade paths.
  • How do I maintain optimum performance? Regular inspection of connectors, re-terminating if needed, keeping cables organized to reduce bending and stress, and testing links after any maintenance will help sustain low insertion loss and reliable operation.
