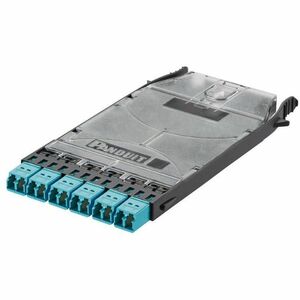

Panduit HD Flex LC Splice Cassette, 6-Port

The Panduit HD Flex LC Splice Cassette, 6-Port, is engineered for clean, high-density fiber terminations in data centers and network closets. This 6-port splice/FAP cassette uses duplex LC multimode adapters in a distinctive aqua color, each with zirconia sleeves for precise alignment, low insertion loss, and enhanced durability in demanding environments. Note that LC pigtails are not included, so you can pair the cassette with your preferred LC pigtails to complete your splice or FAP deployment. Designed to fit Panduit’s HD-Flex systems, this cassette delivers a scalable, modular solution that supports rapid deployment, simplified maintenance, and outstanding organization in high-density enclosures. Its compact footprint enables dense channelization, reduces cable bulk, and promotes efficient routing, making it ideal for data centers adopting modular, scalable fiber architectures. Whether you’re building a new fiber topology or upgrading an existing system, the 6-Port HD Flex LC Splice Cassette provides a dependable foundation for future growth while preserving performance and accessibility across the full lifecycle of your network.

• High-density 6-port design: A compact splice/FAP cassette that maximizes port density within Panduit HD-Flex enclosures, enabling scalable fiber terminations without compromising rack space or accessibility.
• Duplex LC multimode adapters in aqua with zirconia sleeves: Precisely engineered connectors that deliver consistent mating performance, low insertion loss, and robust durability in high‑traffic data-center environments.
• FAP compatibility for organized fiber distribution: Optimized for fast access and controlled distribution at the fiber aggregation point, making splicing, testing, and management straightforward and repeatable.
• LC pigtails not included: Flexible integration with your existing inventory—purchase the exact LC pigtails you prefer to tailor the setup to your network requirements and standards.
• Rugged housing for secure installation: Engineered to tolerate the rigors of rack mounting, with reliable retention and compatibility across Panduit’s HD-Flex ecosystem for future expansions and streamlined maintenance.

Technical Details of Panduit HD Flex LC Splice Cassette, 6-Port

• Port count: 6 (six duplex LC adapters)
• Adapter type: Duplex LC multimode
• Adapter color: Aqua with zirconia sleeves
• Sleeve material: Zirconia
• Pigtails included: No
• Application: Splice/FAP cassette for Panduit HD-Flex systems
• Compatibility: Panduit HD-Flex enclosures and fiber-management systems

How to install Panduit HD Flex LC Splice Cassette, 6-Port

Installing the 6-Port HD Flex LC Splice Cassette is designed to be straightforward within Panduit’s high-density fiber-infrastructure ecosystem. Follow these general steps to ensure a secure, organized, and reliable deployment:

• Power down and prepare the workspace, verifying that the enclosure is accessible and that you have the appropriate HD-Flex mounting hardware and mounting rails ready for cassette insertion.
• Open the enclosure and inspect the cassette slot to confirm it aligns with the 6-port HD-Flex format; verify that the adapter bays are clean and free of debris before installation.
• Mount the 6-Port cassette into the designated slot, ensuring a snug, locked fit that maintains proper alignment with the adapter frames and cable management guides.
• Route your non-pigtailed fiber cables as required by your plan, keeping paths tidy and avoiding sharp bends; LC pigtails must be sourced separately, as they are not included with the cassette.
• Connect the fiber pigtails or pre-terminated assemblies to the duplex LC adapters in the cassette, following your labeling and documentation standards to preserve traceability and ease future maintenance.
• Secure the cassette, close the enclosure cover, and perform a basic continuity and integrity check to verify proper connectivity; label ports and document the new topology for asset management.
• Conduct a final inspection and test under normal operating conditions to confirm stable signal levels, then finalize any cabling organization to minimize strain and maximize airflow and accessibility inside the enclosure.

Frequently asked questions

• Q: What is the Panduit HD Flex LC Splice Cassette, 6-Port used for?

  A: It is a high-density splice/FAP cassette designed to terminate and organize six duplex LC multimode connections within Panduit’s HD-Flex systems, enabling scalable, modular fiber architectures in data centers and network closets.

• Q: Are LC pigtails included with the cassette?

  A: No. LC pigtails are not included; you should source the appropriate LC pigtails separately to complete your splice or FAP configuration.

• Q: What color are the adapters, and what is special about the sleeves?

  A: The adapters are aqua duplex LC multimode, featuring zirconia sleeves which help maintain precise alignment and low insertion loss for reliable, repeatable connections.

• Q: Is this cassette compatible with other brands or only Panduit HD-Flex systems?

  A: This cassette is designed for Panduit HD-Flex enclosures and fiber-management ecosystems; compatibility with other brands may require adapters or mounting hardware that align with Panduit’s form factor.

• Q: How does this cassette help with network scalability?

  A: With six ports in a compact footprint, the cassette supports modular expansion within HD-Flex enclosures, enabling you to progressively add more termination points as your data-center needs grow while keeping cables organized and accessible.
