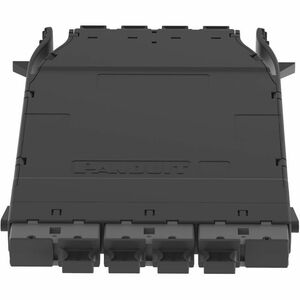

Panduit HD Flex Mesh Cassette OS2, 4x8F MPO to 4x8F MPO, Std IL

HD Flex Mesh Cassette solutions deliver scalable, high-density fiber optic connectivity designed for modern data centers. The Panduit HD Flex Mesh Cassette OS2, featuring 4x8F MPO to 4x8F MPO connectors and standard IL, is engineered to support both Ethernet and Fibre Channel networks with reliable performance and easy deployment. This cassette is built to fit the HD Flex ecosystem, enabling streamlined fiber routing, simplified maintenance, and enhanced cable management in dense environments. Designed for single-mode OS2 fibers, it enables long-distance transmissions with precision and consistency across multi-port configurations.

With the OS2 single-mode configuration, these cassettes are optimized for long-haul links and high-bandwidth applications while maximizing port density in a compact footprint. The 4x8F MPO to 4x8F MPO arrangement provides robust fiber paths for high-speed data transport, and the standard IL specification ensures predictable, repeatable performance across deployments. Whether you’re upgrading an existing infrastructure or building a new data center, this cassette offers the flexibility to scale as your network grows. Panduit’s HD Flex family prioritizes clean cable management, reduced footprint, and simplified field upgrades, making it an ideal choice for demanding environments where reliability and scalability matter.

• Flexible deployment options: Supports multiple configurations within the HD Flex system, including 4-port, 6-port, and 12-port cassette options with diverse connector choices on the front and back, enabling tailored solutions for any data center footprint.
• High-density OS2 connectivity: OS2 single-mode fiber paired with 4x8F MPO to 4x8F MPO connectivity delivers compact, high-bandwidth paths ideal for long-distance Ethernet and Fibre Channel links while preserving quality of service.
• Robust, modular design: The HD Flex Mesh Cassette construction is engineered for durable operation in crowded racks, with streamlined cable routing and compatibility with splice cassettes and adapter/couples to simplify modernization projects.
• Front and back connector versatility: Front- and rear-facing MPO interfaces support flexible deployment strategies, enabling clean separation of trunk cables from peripheral connections and easier troubleshooting in busy data centers.
• Optimized performance and management: Standard IL ensures predictable loss characteristics, while the cassette design helps maintain clean splice points, reduce insertion loss variability, and improve overall network reliability for Ethernet and Fibre Channel applications.

Technical Details of Panduit HD Flex Mesh Cassette OS2, 4x8F MPO to 4x8F MPO, Std IL

• Configuration: OS2 single-mode fiber cassette with 4x8F MPO to 4x8F MPO connectivity, designed specifically for HD Flex deployments and offering front/back connector versatility to fit diverse rack layouts.
• Port options: Available in 4-port, 6-port, and 12-port configurations to match varying density requirements and space constraints within data center environments.
• Fiber type: OS2 single-mode fiber optimized for long-distance transmission, delivering low attenuation and high bandwidth for core networks and data center interconnects.
• Insertion loss: Standard IL specification aligned with industry norms to provide reliable, repeatable performance across all installed paths and connectors.
• Compatibility: Designed to work with splice cassettes and Panduit adapter/couples within the HD Flex ecosystem, enabling modular, scalable fiber pathways and straightforward upgrades.

How to install Panduit HD Flex Mesh Cassette OS2, 4x8F MPO to 4x8F MPO, Std IL

• Plan your fiber routing carefully and identify the OS2 4x8F MPO to 4x8F MPO cassette to ensure proper polarity, path continuity, and minimal bending radius along each trunk run.
• Mount the cassette into the HD Flex enclosure or rack-mount system following the manufacturer’s instructions, ensuring a stable fit and proper clearance for airflow and future maintenance.
• Connect MPO trunk cables to the cassette’s front and back interfaces as required by your topology, taking care to maintain connector cleanliness and correct ferrule orientation to preserve signal integrity.
• Label each fiber path, verify tool-free engagement where possible, and perform a basic continuity test to confirm clean connections before powering the network.
• Document the installation, perform a comprehensive network test (including pass/fail checks for Ethernet or Fibre Channel traffic), and schedule routine maintenance to preserve performance and simplify future upgrades.

Frequently asked questions

• Q: What is Panduit HD Flex Mesh Cassette OS2, 4x8F MPO to 4x8F MPO?

  A: It is a high-density fiber optic cassette designed for OS2 single-mode fiber with 4x8F MPO to 4x8F MPO connectivity. It is part of the Panduit HD Flex family and supports Ethernet and Fibre Channel networks with scalable deployment options.

• Q: What networks is it suitable for?

  A: It supports both Ethernet and Fibre Channel networks, making it suitable for data center uplinks, storage networks, and high-performance computing environments requiring reliable, scalable fiber connectivity.

• Q: Can the cassette be configured in different port counts?

  A: Yes. Panduit offers 4-port, 6-port, and 12-port configurations in HD Flex cassettes, enabling flexible density and routing options for various installations.

• Q: Is it compatible with splice cassettes and adapter/couples?

  A: Yes. The HD Flex mesh cassette line is designed to integrate with splice cassettes and Panduit adapter/couples to build modular fiber pathways with clean, organized cable management.

• Q: What is OS2 fiber?

  A: OS2 is a single-mode optical fiber standard optimized for long-distance transmission and high capacity, delivering low attenuation and high bandwidth for core networks and data center interconnects.
