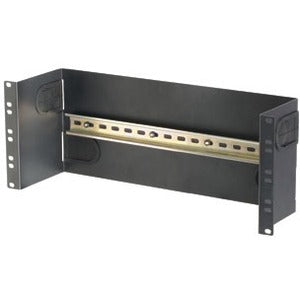

Panduit IABDIN4 Mounting Bracket for Rack - Black

PanduitSKU: 12749738

Price:
Sale price$231.15

Description

The Panduit IABDIN4 is a rugged, DIN-mounting bracket designed to bring DIN-mountable equipment into a standard EIA 19" (483mm) rack or cabinet with ease and reliability. Crafted from steel and finished in a durable black coating, this 4 RU bracket provides a sturdy, vibration-resistant home for automation and control devices in industrial environments. It’s engineered to streamline rack installations, simplify service, and maintain clean cable management while preserving optimal airflow for cooling. Whether you’re upgrading an existing system or designing a new control cabinet, the IABDIN4 offers a secure, space-efficient solution that helps you maximize rack density without compromising accessibility or reliability.

  • Optimized for DIN-mountable equipment in standard EIA 19" racks or cabinets, enabling clean, secure installations with easy access for maintenance and upgrades.
  • Robust steel construction delivers reliable rigidity and long-term durability in demanding industrial environments subject to vibration and temperature fluctuations.
  • Compact 4 RU height fits neatly into tight spaces, maximizing rack density while preserving clear pathways for cables and serviceability.
  • Black powder-coated finish provides corrosion resistance and a professional, low-profile appearance that blends with most rack interiors and ecosystem hardware.
  • Single-piece design supports straightforward retrofits and new installations, with alignment suited to common DIN mounting patterns for reliable module integration.

Technical Details of Panduit IABDIN4 Mounting Bracket for Rack - Black

  • Material: Steel
  • Finish: Black powder coat
  • Rack units: 4 RU
  • Mounting: DIN-mountable equipment into standard 19" (483mm) EIA racks or cabinets
  • Package quantity: 1 piece

How to install Panduit IABDIN4 Mounting Bracket for Rack

  • Power down equipment and disconnect all cables before beginning installation to ensure safety and prevent damage to equipment.
  • Place the IABDIN4 bracket into the desired 4U slot within a standard 19" rack or cabinet and align it with the rack rails for secure mounting.
  • Secure the bracket to the rack using appropriate screws compatible with your rails and enclosure; verify manufacturer recommendations and ensure the fasteners are suitable for your environment and load requirements.
  • Mount the DIN-mountable equipment onto the bracket according to the device’s mounting pattern and instructions, ensuring proper alignment with DIN rails and front/back access for cables.
  • Route cables neatly to maintain good airflow, reduce strain on connectors, and allow easy access for maintenance or future expansions; perform a final check to confirm all hardware is tight and the system sits squarely in the rack.

Frequently asked questions

  • Q: What equipment is compatible with the Panduit IABDIN4? A: It is designed for DIN-mountable equipment intended for standard 19" racks; ensure your device supports DIN mounting patterns and fits within a 4U height.
  • Q: Are installation screws or mounting accessories included? A: The bracket is provided as a single piece; mounting screws and any DIN rail adapters or rails are typically not included and should be sourced separately based on your rack and device requirements.
  • Q: How durable is the finish, and is it suitable for harsh environments? A: The bracket uses a steel construction with a black powder-coated finish, offering good corrosion resistance and durability for industrial environments and factory floors.
  • Q: Can I use this bracket in non-typical enclosures or non-19" cabinets? A: The bracket is designed for standard EIA 19" racks and cabinets; verify enclosure compatibility before installation to ensure proper fit and airflow.
