Panduit ID Label – Self-Laminating Polyester Wire Marker for 18-14 AWG

When you’re wiring, paneling, or organizing electrical systems, every connection deserves clear, durable identification. The Panduit ID Label delivers professional-grade wire marking with a polyester, self-laminating design that resists the rigors of industrial environments. This label combines print-ready white areas with a protective clear overlaminate to maintain legibility even in moisture, oils, or typical occupational wear. Compatible with laser and inkjet printing, it’s engineered to streamline labeling workflows while delivering clean, crisp results that won’t fade or smear over time. If you’re outfitting a control panel, electrical cabinet, or a complex network rack, these labels are built to stay legible where it matters most: on the wire, cable bundle, and enclosure where identification is essential.

• Self-laminating polyester construction: Built to withstand abrasion, oils, and humidity, the durable polyester substrate stands up to demanding electrical environments while keeping printed information readable for the life of the installation.
• Laser and inkjet printable with a white print area: The label features a white print-on area designed to deliver high-contrast text and symbols when printed with common office and industrial printers, ensuring legibility in challenging lighting and settings.
• Clear overlaminate for long-lasting clarity: A transparent overlaminated layer protects the printed data from abrasion and environmental exposure, so your identifiers stay readable even after years of service or frequent handling.
• Efficient sheet format for bulk labeling: Supplied on 8.5 x 11 inch sheets with 117 labels per sheet (9 labels per row, 13 rows per sheet), enabling batch printing and fast preparation of large labeling tasks.
• Optimized size for 18-14 AWG wires: Each label provides a 0.75" width with a 0.25" high white print area, a compact footprint designed to sit neatly on smaller conductors while remaining easy to read at a glance.

Technical Details of Panduit ID Label

• Material: Polyester label stock with self-laminating adhesive and clear overlaminate.
• Printer compatibility: Suitable for both laser and inkjet printers.
• Print area: White print-on region measuring 0.25" (6.4 mm) in height for text and graphics.
• Label width: 0.75" (approximately 19 mm).
• Sheet format: 8.5 x 11 inches (letter size).
• Labels per sheet: 117 labels per sheet (arranged in 9 labels per row and 13 rows).
• Overlaminate: Clear protective layer to guard printed information.
• Intended use: Ideal for marking wires, cables, panels, and electrical components, especially with 18-14 AWG wire sizes.

How to Install Panduit ID Label

Installing Panduit ID Label is straightforward and designed to get you readable, durable markings with minimal effort. Follow these general steps to maximize readability and longevity of the identification on wire and cable assemblies:

• 1) Prepare your print: Use a laser or inkjet printer to print your intended text or symbols within the white print area. Ensure the output is sharp and aligned with the label boundaries for clean, legible results.

• 2) Cut or separate as needed: If your workflow requires, separate the printed label from the sheet along the designated edges. Handle gently to avoid scuffing the print area.

• 3) Align with the conductor: Position the label so that the printed area faces outward and remains clearly visible once applied to the wire, cable, or component. For small-diameter wires, ensure there is enough space to wrap the laminate around the conductor as designed.

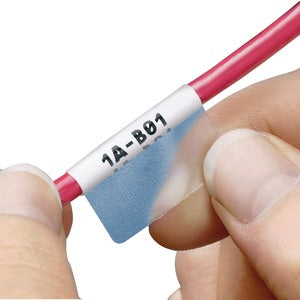

• 4) Apply the self-laminate: Wrap the label around the wire or bundle, using the self-laminating tail to secure the label. The clear overlaminate provides a protective seal around the printed portion, helping to prevent moisture and oils from compromising legibility.

• 5) Press and finalize: Smooth the laminate to remove air pockets and ensure a tight seal. If needed, trim any excess material while keeping the printed area intact for maximum readability.

• 6) Inspect for clarity: After installation, verify that the text is legible from a practical viewing angle and that the overlaminate edge is secure to prevent peeling in demanding environments.

Frequently asked questions

• Q: Can I print this label with both laser and inkjet printers?

  A: Yes. The Panduit ID Label is designed for compatibility with both laser and inkjet printers, delivering clear, durable print in the white print area.

• Q: What is the physical size of the label and the print area?

  A: The label is 0.75" wide, with a 0.25" high white print area. This compact size is optimized for 18-14 AWG wires while maintaining legibility.

• Q: How many labels come on a sheet, and how are they arranged?

  A: Each 8.5 x 11" sheet contains 117 labels, arranged in 9 labels per row and 13 rows per sheet, enabling efficient batching for larger labeling projects.

• Q: What benefits does the clear overlaminate provide?

  A: The clear overlaminate protects printed information from abrasion, moisture, and oils, helping to ensure long-term legibility in challenging environments.

• Q: Are these labels suitable for outdoor or harsh indoor conditions?

  A: The polyester substrate with self-laminating adhesive and overlaminate offers improved durability in many industrial settings, though for extreme outdoor exposure you should assess UV and temperature requirements specific to your application.
