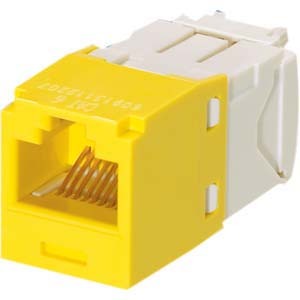

PANDUIT Mini-Com Cat.6 UTP Jack Module - RJ-45

Discover dependable, scalable networking with the PANDUIT Mini-Com Cat.6 UTP Jack Module. Engineered to integrate seamlessly with Panduit’s acclaimed Mini-Com system, this RJ-45 jack module delivers reliable performance for modern networks in data centers, offices, and retrofitted spaces. Built to support Cat6 UTP standards, it enables high-bandwidth, low-latency connectivity while maintaining a clean, organized footprint. The Mini-Com modular approach means you can grow your infrastructure with ease—add ports, reconfigure layouts, and swap modules without disrupting established cabling. This jack module is a practical choice for technicians and installers who demand professional results, efficient maintenance, and long-term adaptability in a compact, field-friendly package.

• Cat6 UTP performance: Delivers high-bandwidth capability up to 250 MHz, supporting fast Ethernet and Gigabit Ethernet with reduced crosstalk and improved signal integrity for reliable, scalable network access.
• RJ-45 modular jack compatibility: Standard RJ-45 interface accepts common Ethernet patch cords, ensuring broad compatibility with Cat5e, Cat6, and Cat6a cables while preserving easy, familiar cabling practices.
• Panduit Mini-Com system integration: Specifically designed to snap into Panduit Mini-Com faceplates, backplanes, and distribution modules for a tidy, modular wiring solution that simplifies inventory and upgrades.
• Durable, field-ready design: Built for years of use in busy network environments, featuring robust materials and dependable contact performance to maintain consistency under frequent patching and rearrangement.
• Installation efficiency and maintenance flexibility: Engineered for quick, tool-friendly installation within the Mini-Com ecosystem, with straightforward maintenance and the ability to reconfigure ports as network needs evolve.

Technical Details of PANDUIT Mini-Com Cat.6 UTP Jack Module

• Category: Cat6 UTP
• Interface: RJ-45 modular jack
• System compatibility: Panduit Mini-Com faceplates and backplanes
• Application: Data networks requiring high-speed, reliable RJ-45 connectivity
• Construction: High-quality materials designed for durable performance in commercial and residential installations

How to install PANDUIT Mini-Com Cat.6 UTP Jack Module

• Plan your layout: Determine the number of Cat6 UTP connections you need and map them to the appropriate Panduit Mini-Com faceplates or panels. Ensure pathways and cable management comply with local codes and industry best practices for low-voltage installations.
• Prepare the mounting area: Select the compatible Panduit Mini-Com backplane or faceplate chassis. Ensure the mounting surface is clean, unobstructed, and aligned to receive the jack module with a smooth, flush finish.
• Insert the module: Align the Mini-Com Cat6 UTP Jack Module with the designated slot in the faceplate or distribution module. Push the module firmly until it snaps securely into place, producing a reliable mechanical and electrical connection.
• Route and terminate cabling: Route the UTP cabling to the module with proper bend radii and strain relief. Terminate the individual conductors according to your installation standards within the associated backbone or patch panel, using appropriate tools for the faceplate system if required.
• Label, test, and verify: Label each port for easy identification and run a connectivity test using a certified cable tester. Verify continuity, pair integrity, and correct pairing to ensure optimal Cat6 performance and reliable link quality.

Frequently asked questions

• Q: Is this a shielded or unshielded solution? A: The PANDUIT Mini-Com Cat.6 UTP Jack Module is designed for unshielded twisted pair (UTP) installations, suitable for typical commercial and residential wiring where UTP is standard.
• Q: What systems is this module compatible with? A: It is designed to work within Panduit’s Mini-Com modular system, including compatible faceplates, backplanes, and distribution modules, while supporting standard RJ-45 patch cords.
• Q: Can I use this for 10G networking? A: Cat6 UTP can support 10GBASE-T over shorter distances; performance depends on cable quality and installation. For extended 10G runs, consider Cat6a or higher where required by your network design.
• Q: Do I need specialized tools to install? A: In most cases, no specialized tools are required beyond standard low-voltage installation practices and a proper cable tester. The jack module itself snaps into the Mini-Com system, while termination and testing follow standard practices for Cat6 installations.
• Q: Where can I source replacement modules or accessories? A: Replacement modules and accessories are available through Panduit authorized distributors and official retailers. Always match the module to your Mini-Com faceplate or backplane for optimal fit and performance.
