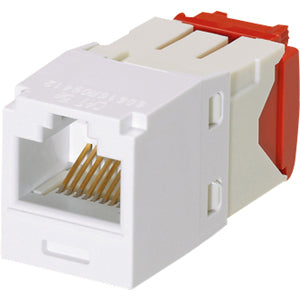

Panduit Mini-Com CJ5E88TGWH-24 UTP Cat5e Network Connector

Elevate your network infrastructure with the Panduit Mini-Com CJ5E88TGWH-24 UTP Cat5e Network Connector. This high-quality, single-port RJ-45 module is purpose-built for clean, reliable Ethernet terminations in Panduit’s trusted Mini-Com system. The white, unobtrusive housing blends seamlessly with most decor and panels, making it ideal for offices, data centers, classrooms, and home networks where performance and aesthetics matter. With Cat5e UTP compliance, this connector delivers solid gigabit-capable performance for everyday networking needs while maintaining signal integrity in dense deployments. The CJ5E88TGWH-24 is conveniently packaged as a 24-pack, ensuring you have plenty on hand for project work and future expansions.

• Cat5e UTP RJ-45 single-port module: Delivers reliable Ethernet connectivity compatible with modern Gigabit networks, supporting up to 1000 Mbps data rates on standard Cat5e cabling.
• Panduit Mini-Com compatibility: Designed for seamless insertion into Panduit Mini-Com modular faceplates and keystone frames for a clean, professional installation.
• White, unobtrusive housing: The white finish blends with most wall plates and environments, delivering a discreet yet dependable network interface.
• 24-pack Packaging – CJ5E88TGWH-24: Provides a convenient bulk solution for large installations or ongoing maintenance, reducing downtime and reordering hassles.
• Reliable termination and ease of use: Engineered for simple field installation with a secure snap-in connection that stays put, while maintaining consistent contact performance over time.

Technical Details of Panduit Mini-Com CJ5E88TGWH-24

• Product type: Cat5e UTP RJ-45 network connector (Mini-Com module)
• Port configuration: 1 x RJ-45 network female
• Category / standard: Cat5e, UTP, 8P8C modular jack
• Color: White
• Packaging: 24 pieces per bag (CJ5E88TGWH-24)
• System compatibility: Designed for use with Panduit Mini-Com faceplates, frames, and keystone modules
• Material: High-quality thermoplastic housing built for durability in wall-plate installations
• Compliance: RoHS compliant; UL-listed/recognized features commonly associated with Panduit faceplate inserts
• Performance: Supports Ethernet up to gigabit speeds (1 Gbps) over Cat5e UTP cabling
• Mounting / installation environment: Indoor use in standard low-voltage or data-communications installations

How to Install Panduit Mini-Com CJ5E88TGWH-24

Installing the Panduit Mini-Com CJ5E88TGWH-24 is straightforward when you follow a few simple steps. This guide assumes you are integrating the module into a Panduit Mini-Com faceplate or a compatible panel. Always follow local electrical and building codes for low-voltage installations and ensure the network is powered down during work.

1) Plan and prepare: Identify the location for the port and route the Cat5e cable behind the wall or in the mounting box. Decide whether you'll terminate the cable with a standard T568A or T568B wiring scheme and ensure you have the correct length of cable and a cable tester on hand for verification after installation.

2) Prepare the cable technique: Strip the outer jacket of the Cat5e cable to expose the four twisted pairs. Carefully untwist a minimal amount of each pair and straighten the conductors. Maintain the recommended conductor length inside the connector to preserve signal integrity. Use proper cable management to avoid excessive slack, which can cause interference or damage during handling.

3) Terminate the wires to the CJ5E88TGWH-24 module: Align the 8 conductors with the appropriate termination slots on the RJ-45 module, following your chosen TIA/EIA standard (568A or 568B). Insert each conductor completely into its designated slot and ensure there are no stray strands. Use the appropriate termination tool or crimping tool designed for Mini-Com modules to secure the wires. Verify that each conductor is firmly seated and that there are no loose strands that could cause cross-talk or short circuits.

4) Check alignment and seating: Once all conductors are terminated, visually inspect the module for proper alignment. The conductors should be parallel and fully seated without any excess exposed conductor beyond the termination face. A light tug should not dislodge the wires, indicating a secure termination.

5) Mount into the Mini-Com faceplate or panel: Slide or snap the CJ5E88TGWH-24 module into the corresponding opening on the Panduit Mini-Com faceplate or frame. Apply steady pressure until you hear or feel a firm click, confirming that the module is securely seated within the panel.

6) Secure and finalize: Attach the faceplate to the low-voltage mounting bracket or wall box as per standard installation practices. Ensure all components align flush against the wall and that mounting screws are tightened to the appropriate torque ratings. Use labeling on the front faceplate to clearly identify the port for future reference or troubleshooting.

7) Test the connection: Power up the connected devices and run a network test with a reliable tester to confirm continuity, correct pairing, and data transmission across the link. Confirm that the port negotiates at the expected speed (ideally 1 Gbps for Cat5e in proper conditions) and that there are no crosstalk or signal integrity issues.

8) Document and maintain: Record port location, cable pathway, and testing results. Maintain documentation for future upgrades or expansions to ensure consistent performance across your network.
