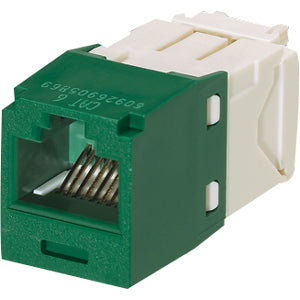

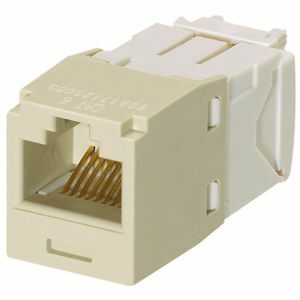

PANDUIT Mini-Com TX6 Plus Modular Insert

The PANDUIT Mini-Com TX6 Plus Modular Insert is a high-density Cat6 UTP solution designed for professional network installations. Built to deliver reliable performance in data centers, server rooms, and office environments, this 24-pack of 8-position, 8-wire modules helps you achieve clean, scalable terminations within Panduit’s trusted Mini-Com system. With its compact footprint and easy-to-use design, it’s the ideal choice for technicians seeking organization, speed, and consistency in structured cabling projects.

• 24-pack of Cat6 UTP modular inserts: Each purchase includes 24 Mini-Com TX6 Plus inserts, optimized for bulk deployments and rapid panel fill while preserving performance and reliability across all terminations.
• 8-position, 8-wire design: Specifically engineered for full 8P8C Cat6 terminations, allowing precise conductor routing and dependable connectivity within a dense panel or faceplate configuration.
• Compact, high-density footprint: The TX6 Plus modular insert is designed to maximize port density, enabling more terminations per panel and easier cable management in tight spaces.
• Durable, user-friendly construction: The modular insert features a robust housing and alignment features that simplify installation, reduce mis-termination risk, and promote consistent results on every site.
• Excellent compatibility with Panduit Mini-Com ecosystem: Seamlessly integrates with Panduit Mini-Com panels, faceplates, and labeling practices for scalable, future-proof network builds.

Technical Details of PANDUIT Mini-Com TX6 Plus Modular Insert

• Product name: PANDUIT Mini-Com TX6 Plus Modular Insert
• Category: Cat6 UTP
• Positions: 8
• Conductor count: 8 wires
• Pack size: 24 inserts per package
• Compatibility: Fits Panduit Mini-Com system panels and faceplates
• Material: Durable thermoplastic housing designed for repeated terminations and long service life
• Application: Suitable for data centers, network closets, and office network installations requiring Cat6 UTP performance

How to Install PANDUIT Mini-Com TX6 Plus Modular Insert

• Confirm compatibility: Ensure you are using a Panduit Mini-Com panel or faceplate that supports TX6 Plus modular inserts and that Cat6 UTP cabling is being used for the installation.
• Prepare cables and conductors: Strip the outer jacket and separate the individual 8 conductors according to your chosen termination standard (T568A or T568B). Maintain tight twists up to the termination point to preserve performance.
• Align and insert: Align the TX6 Plus modular insert with the panel slot and insert it firmly into place until you hear or feel a click, indicating the module seats correctly.
• Terminate conductors: Following your panel’s guidance, terminate the 8 conductors into the modular insert using the appropriate tooling and contacts. Ensure each conductor is fully seated and order is maintained to avoid crosstalk.
• Test and label: After installation, use a qualified cable tester to verify continuity, pair integrity, and overall performance. Label the channel for easy identification and future maintenance.

Frequently Asked Questions

• Q: What is the PANDUIT Mini-Com TX6 Plus Modular Insert used for?

  A: It is a Cat6 UTP modular insert designed to terminate eight conductors in an 8-position module within the Panduit Mini-Com system, enabling compact, reliable network connectivity in patches, panels, and faceplates.

• Q: How many inserts are included per pack?

  A: Each pack contains 24 Mini-Com TX6 Plus modular inserts, making it ideal for bulk deployments and large-scale installations.

• Q: Is this insert compatible with Cat6 UTP cabling?

  A: Yes. The TX6 Plus modular insert is designed for Cat6 UTP terminations and is intended to work within Panduit’s Mini-Com ecosystem for consistent performance.

• Q: Can I mix TX6 Plus inserts with other Mini-Com modules?

  A: The TX6 Plus is designed to be compatible with other Panduit Mini-Com components, but it’s recommended to follow Panduit compatibility guidelines to ensure optimal performance and labeling consistency across the system.

• Q: How do I verify that my installation is correct?

  A: After installation, perform a full continuity and performance test with a quality cable tester, confirm that all channels meet Cat6 UTP standards, and document with proper labeling for future maintenance and troubleshooting.
