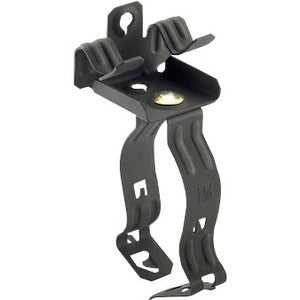

Panduit Mounting Clip – Beam Clamp for 9/16"–3/4" Flange with 1/2"–3/4" Snap Closed Conduit Clip, Bottom Mount

Designed for robust electrical and mechanical installations, the Panduit Mounting Clip delivers a dependable, space-efficient mounting solution for securing conduit and equipment where reliability is critical. This beam clamp-style mounting clip is engineered to fit 9/16" to 3/4" flange beams, making it compatible with a wide range of support structures used in commercial, industrial, and data-center environments. The integrated 1/2" to 3/4" snap-closed conduit clip provides a secure channel for power and communication cables, helping to keep runs organized and accessible for maintenance. With a vertical static load capacity of 75 lbs, the Panduit Mounting Clip offers a solid, vibration-resistant anchor that can withstand the rigors of daily operation in dynamic settings.

Whether outfitting data centers, manufacturing floors, or service cabinets, this mounting clip is engineered to maximize productivity. The bottom-mount design simplifies installation on beams, studs, or rails, reducing the number of fasteners and mounting components required. Its rugged construction resists loosening from vibrations and thermal cycling, helping to prevent downtime or rework caused by movement. The compact profile meets tight tolerances, enabling multiple clips to be installed in dense layouts without compromising service access or cable routing. By combining a dependable clamp with a flexible conduit clip, Panduit delivers a single, streamlined solution that enhances reliability and speeds up installation workflows.

• Beams clamp compatibility: 9/16" to 3/4" flange, enabling use with common support beams and rails found in many installations.
• Conduit clip size range: 1/2" to 3/4" conduit with snap-closed closure for secure grip and easy release when needed.
• Bottom mount design: space-saving mounting method that simplifies alignment and reduces hardware requirements.
• Vertical load capacity: supports up to 75 lbs, providing strong, dependable support for conduit and attached devices.
• Durability and reliability: engineered to resist vibration and thermal cycling for long service life and reduced maintenance.

Technical Details of Panduit Mounting Clip

• Flange compatibility: 9/16" – 3/4"
• Conduit clip range: 1/2" – 3/4" snap closed
• Mounting style: bottom mount
• Vertical static load capacity: 75 lbs
• Brand: Panduit

How to install Panduit Mounting Clip

• 1. Verify flange size on the supporting beam or rail is within 9/16" to 3/4".
• 2. Position the beam clamp over the flange and secure it with the appropriate fasteners per your installation standards, ensuring a snug, level fit.
• 3. Insert conduit into the 1/2"–3/4" snap-closed clip, aligning it with the clip opening until it locks securely in place.
• 4. Confirm the bottom-mount clip is oriented correctly and tighten mounting screws to the recommended torque, avoiding over-tightening that could damage components.
• 5. Perform a final inspection by gently tugging on the conduit to confirm a secure hold and verify that the assembly sits neatly with adjacent runs for easy maintenance access.

Frequently asked questions

• Q: What flange sizes does the Panduit Mounting Clip accommodate? A: It is designed for flanges ranging from 9/16" to 3/4".
• Q: What conduit sizes can the clip hold? A: The conduit clip accommodates 1/2" to 3/4" conduit with a snap-closed closure for secure retention.
• Q: What is the load rating of the Mounting Clip? A: The clip supports up to 75 lbs of vertical static load.
• Q: What mounting method does this clip use? A: It uses a bottom-mount design for straightforward installation on beams or rails.
• Q: Is outdoor use specified for this Panduit Mounting Clip? A: The provided product description does not specify outdoor-rated or weather-resistant capabilities; consult the official Panduit specifications for outdoor suitability if needed.
