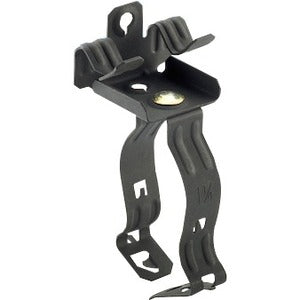

Panduit Mounting Clip - Beam Clamp for 1/8"–1/4" Flange | 1" Snap-Closed Conduit Clip | Bottom Mount

The Panduit Mounting Clip is a purpose-built solution for reliable conduit management in electrical installations, designed to streamline mounting projects and improve overall efficiency on the job. This beam clamp fits flange sizes from 1/8" to 1/4", making it a versatile choice for a wide range of electrical and data-center applications. With a sturdy bottom-mount configuration and a secure 1" snap-closed conduit clip, this mounting clip provides a clean, secure pathway for conduits while protecting wires from wear and unwanted movement. Its vertical static load capacity of up to 75 lbs ensures dependable performance under demanding conditions, helping installers maintain neat, safe cable runs without sacrificing strength or stability. Whether you're outfitting new construction, performing a retrofit, or organizing large-scale conduit runs, the Panduit Mounting Clip is engineered to maximize mounting efficiency and simplify conduit routing with added usability.

• Precise fit and beam clamp design: This mounting clip is engineered as a beam clamp for 1/8"–1/4" flanges, delivering a secure, dependable grip on standard flange sizes without the need for additional adapters or tools. The 1" conduit clip is snap-closed for quick, confident installation, helping you keep runs tidy from the outset.
• Strong vertical load capacity: With a static load rating of up to 75 lbs, the Panduit Mounting Clip provides reliable support for medium to heavier conduit runs and cable bundles, reducing the risk of sagging or movement over time. This makes it suitable for installations where stability is critical to performance and safety.
• Maximized mounting efficiency: The clip’s streamlined design offers added usability, enabling faster placement and inspection. Its bottom-mount configuration simplifies installation in tight spaces and along beams, helping technicians complete projects more quickly without sacrificing accuracy or security.
• Durable, dependable conduit management: Built to withstand the rigors of daily electrical use, this mounting clip delivers consistent performance in a variety of environments. Its robust construction supports long service life and reduces maintenance needs by keeping conduits securely aligned and protected.
• Versatile, practical application: Ideal for a wide range of electrical installations, from data centers to industrial facilities, the Panduit Mounting Clip helps organize conduit routes efficiently while maintaining a clean, professional look across a project.

Technical Details of Panduit Mounting Clip

• Beam clamp compatible with 1/8"–1/4" flanges
• Conduit clip offers a 1" snap-closed mechanism
• Bottom mount design for stable, flush mounting
• Vertical static load capacity: up to 75 lbs
• Supports organized conduit routing with enhanced usability

How to Install Panduit Mounting Clip

• Identify the flange size you plan to use (1/8"–1/4") and locate a sturdy beam where the clip will be mounted.
• Position the beam clamp around the flange with the bottom-mount side oriented toward the underside of the beam to optimize conduit routing.
• Insert the conduit into the 1" snap-closed conduit clip and push until the clip locks in place, ensuring the conduit is secured firmly.
• Check that the clip sits flush against the beam and that the conduit is aligned along the intended path with no sharp bends or kinks.
• Gently apply vertical pressure to the mounted conduit to confirm the 75 lb rating is not exceeded and that the clip remains stable under load.

Frequently Asked Questions

• What flange sizes does the Panduit Mounting Clip fit? It fits flanges from 1/8" to 1/4" in thickness, providing a secure beam clamp for common flange applications.
• What is the load capacity of this mounting clip? The clip has a vertical static load capacity of up to 75 lbs, ensuring reliable support for conduit runs under typical operating conditions.
• Does it include a conduit clip? Yes. It features a 1" snap-closed conduit clip to securely hold conduits in place.
• Is this mounting clip bottom mount? Yes, the design is bottom mount for stable, flush installation on beams.
• Where is this clip commonly used? It is well-suited for electrical installations requiring organized conduit management, including data centers, commercial buildings, and industrial facilities, where quick, efficient mounting and reliable support are essential.
