Description

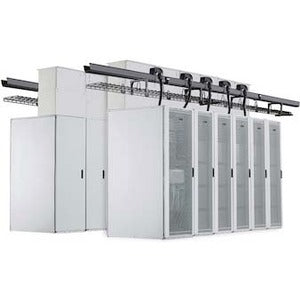

Panduit Net-Access Rack Frame
The Panduit Net-Access Rack Frame is engineered for reliability, scalability, and streamlined IT cabinet management. Designed for data centers, server rooms, and growing network environments, this Net-Access N-Type cabinet frame with a top panel delivers a sturdy foundation for your most critical equipment. It blends rugged construction with flexible access options to support a range of configurations—from compact patch panels to multi-server deployments. The frame comes equipped with two sets of cage nut rails and a robust 48 RU cable management system, ensuring your cables stay organized, accessible, and ready for future expansion. With its dual-hinge perforated front door that can open to the left or right and split perforated rear doors that open in the middle, this cabinet is optimized for efficient servicing in tight spaces, minimizing door swing while maximizing equipment accessibility. Solid side panels provide security and structural integrity, while the overall design emphasizes versatility, quick installation, and long-term serviceability. Whether you’re consolidating a handful of devices or building a full rack of servers, the Net-Access Rack Frame helps you manage heat, airflow, and cable routing with confidence, so your IT equipment runs cooler, quieter, and more reliably.
- High-capacity 48U height: Provides ample space for servers, switches, patch panels, and storage devices, enabling scalable growth without frequent relocations or cabinet upgrades.
- Dual hinge perforated front door: Front door opens to the left or right, offering flexible access in crowded data centers and multi-rack deployments while promoting unobstructed maintenance paths.
- Split perforated rear doors: Open in the middle to minimize door swing footprint, allowing easier access in narrow aisles and tight corners without compromising cooling airflow or security.
- Solid side panels (two): Enhance security, rigidity, and protection for sensitive equipment, while contributing to a clean, professional cabinet appearance.
- Cage nut rails and cable management: Includes two sets of cage nut mounting rails and a 48 RU cable management system to keep power and data cables neatly organized, labeled, and easy to navigate during maintenance.
Technical Details of Panduit Net-Access Rack Frame
- Cabinet type: Net-Access N-Type cabinet frame with top panel.
- Front door: Dual hinge perforated door, reversible to open left or right depending on installation layout.
- Rear doors: Split perforated doors that open in the middle to minimize overall door swing footprint and improve accessibility in tight spaces.
- Side panels: Solid panels, two units, providing security and structural rigidity.
- Mounting rails: Two sets of cage nut equipment mounting rails for versatile device placement.
- Cable management: 48 RU cable management channel to organize, route, and protect cables with ease.
- Height (RU): 48U, which corresponds to a tall, full-height rack suitable for diverse IT components.
- Height (approx.): 84 inches (213 cm) from floor to top panel, enabling substantial equipment density within a single cabinet.
how to install Panduit Net-Access Rack Frame
Installing the Panduit Net-Access Rack Frame begins with careful planning of the space, airflow, and power distribution. Start by selecting a level, well-ventilated location with a solid floor that can support the cabinet’s weight when fully loaded. Ensure there is adequate clearance for front and rear door openings, cable inlet access, and serviceability around the cabinet. Unpack the components and inspect all panels, doors, and rails for any transit damage before beginning assembly. If your layout requires a particular door swing direction, decide whether the front door will hinge on the left or right side and install the hinges accordingly. Attach the top panel to provide a finished appearance and to help with cable routing behind the rack. Next, install the solid side panels as needed. The Net-Access frame is designed for straightforward assembly, with pre-punched holes and mounting points for cage nut rails. Place and level the two sets of cage nut mounting rails at the most practical heights for your equipment mix, ranging from patch panels near the top to servers and storage devices lower in the rack. Take care to align rails precisely so that racks slide in and out smoothly and the weight is evenly distributed. With the rails secured, you can begin mounting equipment, starting with heavier components first to maintain center-of-gravity balance and minimize rack sway. When configuring cable management, route power and data cables through the 48 RU channel, taking advantage of bayed cable troughs and vertical managers as needed. Use appropriate strain relief, Velcro straps, and cable ties to keep bundles organized and to prevent cables from impeding airflow or becoming snag points during maintenance. The front door is perforated for airflow and must be oriented correctly to maintain security and accessibility. If you anticipate frequent servicing or equipment swaps, keep a practical door swing plan and ensure easy access to rear cabling without obstruction. Finally, verify that all doors open and close without interference, confirm that all mounting rails are securely fastened, and perform a short test by loading a representative mix of devices to confirm stability and airflow. The Net-Access rack frame is designed for modular expansion, so you can add or rearrange equipment as your IT footprint grows, while maintaining tidy cabling and steady performance across the entire system.
Frequently asked questions
- What is the height of the Panduit Net-Access Rack Frame? The cabinet is 48U tall, which translates to approximately 84 inches (about 213 cm) in height, providing ample space for a wide range of IT equipment and future expansion.
- Can the front door swing direction be changed? Yes. The front door features a dual hinge perforated design that can be configured to open from the left or right, depending on your room layout and access needs during installation.
- How do the rear doors operate? The rear doors are split perforated doors that open in the middle. This design minimizes door swing footprint, making it easier to access equipment in tight aisles while maintaining security and ventilation.
- Does the cabinet include mounting rails? Yes. The Net-Access Rack Frame comes with two sets of cage nut equipment mounting rails, enabling flexible placement of devices and patch panels across the 48U of available space.
- Is there integrated cable management? Absolutely. The cabinet includes a 48 RU cable management system to help organize and protect cables, simplify routing, and improve airflow and cooling efficiency within the enclosure.
