Description

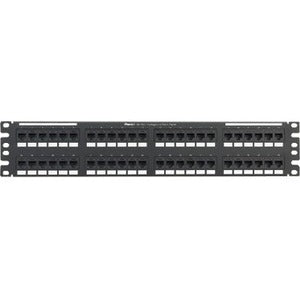

Panduit NetKey NK6XPPG48Y Network Patch Panel
Discover a high-density networking solution engineered for reliability, scalability, and streamlined cable management: the Panduit NetKey NK6XPPG48Y 48-port Cat6A punchdown patch panel. This 2U black patch panel is designed to maximize space in racks while delivering robust performance for demanding data centers, server rooms, and large office networks. Built around industry-standard termination styles and featuring NetKey technology, it simplifies terminations, enhances organization, and supports future-proof Ethernet deployments up to 10GBASE-T. The NK6XPPG48Y integrates a thoughtful wire retention cap to protect against accidental pulls and ensure a neat, lasting installation. Whether you’re wiring a new build, performing a retrofit, or upgrading legacy infrastructure, this patch panel provides the density, durability, and professional finish you need to keep networks running smoothly and efficiently.
- High-density 48-port Cat6A NetKey punchdown patch panel designed to fit in 2U of rack space, delivering maximum port density in a compact footprint suitable for data centers and enterprise wiring closets.
- NetKey punchdown flat configuration with an industry-standard termination style and a built-in wire retention cap, enabling fast, reliable terminations and enhanced cable strain relief to reduce downtime after installation.
- Premium black finish for a sleek, professional look that blends with standard IT equipment and reduces glare in high-visibility rack environments, while maintaining clear labeling and organization for cables and patch cords.
- Efficient 2U (2 rack spaces) form factor paired with 19" rack compatibility supports scalable growth and clean, centralized cable management across multiple network tiers.
- Designed to support Cat6A performance for current and emerging networks, enabling reliable 10G Ethernet applications and future-ready connectivity with industry-standard termination practices for easy upgrades and maintenance.
Technical Details of Panduit NetKey NK6XPPG48Y Network Patch Panel
- Ports: 48
- Category: Cat6A
- Configuration: 2U (2 rack spaces)
- Finish: Black
- Termination: Punchdown (NetKey) with industry-standard methods
- Wire retention cap: Included
- Mounting: 19" rack compatible
- NetKey: Yes
How to install Panduit NetKey NK6XPPG48Y Network Patch Panel
- Plan your cabling layout before installation. Map out standard pathways for horizontal runs, backbone connections, and labeling schemes to ensure efficient future changes and minimal cable crossovers.
- Mount the NK6XPPG48Y in a 19" rack chassis, aligning it with adjacent equipment to maintain a clean, accessible work area. Secure the unit using the appropriate rack screws and ensure the panel is level for proper punchdown termination alignment.
- Route Cat6A conductors to the patch panel, keeping power and data cables separated to minimize interference. Label each run at both ends to support straightforward troubleshooting and future changes.
- Terminate conductors using standard punchdown tools to the correct NetKey/IDC positions on the patch panel. Follow the Cat6A termination guidelines to ensure solid contacts and optimal performance, matching wire color codes to the corresponding ports.
- Install the wire retention cap to protect terminated connections and provide strain relief for all cables entering and leaving the patch panel. Verify that cables are securely seated and that there is no excessive bending near the terminations.
Frequently asked questions
- Q: What is the Panduit NK6XPPG48Y? A 48-port Cat6A NetKey punchdown patch panel designed for 2U rack space, offering high-density connectivity with a NetKey termination approach and an included wire retention cap.
- Q: Is the NK6XPPG48Y compatible with standard 19" racks? A Yes. It is designed to mount in standard 19" racks and occupies 2U of vertical space.
- Q: Does it support 10G Ethernet? A Cat6A panels are designed to support 10G Ethernet applications, depending on the overall network design and cabling quality.
- Q: What comes with the patch panel? A The patch panel includes the 48-port NetKey patch panel with a wire retention cap. Mounting hardware and cables are not specified, so consult installation resources for any additional components needed.
- Q: How does NetKey benefit installation? A NetKey is Panduit's terminology for a structured termination approach that simplifies terminations, helps maintain neat cable management, and improves reliability by reducing movement and strain on terminations.
