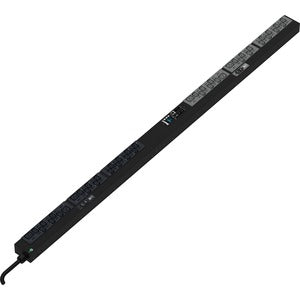

Panduit P48F12M Monitored Per Outlet PDU
The Panduit P48F12M Monitored Per Outlet PDU is a sophisticated, intelligent power distribution solution designed for modern data centers, server rooms, and IT closets. It delivers outlet-level power metering, continuous overload protection, and real-time environmental monitoring, all from a single, compact hardware footprint. By transforming ordinary power distribution into a proactive power management system, this iPDU helps IT teams optimize energy usage, minimize risk of downtime, and simplify capacity planning. With per-outlet visibility, automated alerting, and seamless integration into existing DCIM ecosystems, the P48F12M is a cornerstone for reliable, scalable data center infrastructure.
- Outlet-level energy monitoring: Each outlet is individually monitored for voltage, current, power, and energy, delivering granular insights that help you pinpoint energy inefficiencies, balance workloads, and reduce operating costs. Real-time data supports informed capacity planning and more accurate budgeting for power usage.
- Advanced environmental sensing: The unit continuously tracks environmental conditions at the rack, including ambient temperature and humidity. This enables proactive protection for critical IT equipment, supports thermal management strategies, and helps prevent overheating that can impair performance or shorten component life.
- Robust remote management and alerts: Built-in network connectivity and management interfaces enable you to monitor and control the PDU remotely. Notifications and alarms can be configured through SNMP, web UI, or other standard protocols, ensuring you receive timely alerts for overloads, sensor deviations, or power events—even when you’re off-site.
- Per-outlet fault protection and reliability features: The P48F12M includes overload detection, short-circuit protection, and configurable thresholds to prevent equipment damage. Automated alerts, event logging, and clear outlet mapping help technicians quickly identify and resolve issues before they impact uptime.
- Rack-ready design with flexible deployment: Designed for 19-inch rack integration, the P48F12M offers easy installation, cable management, and a clean, scalable footprint for growing data center environments. It supports straightforward outlet mapping and supports expansion or integration with other smart PDUs and DCIM tools.
Technical Details of Panduit P48F12M Monitored Per Outlet PDU
- Model: Panduit P48F12M Monitored Per Outlet PDU
- Outlet count: 12 monitored outlets
- Electrical characteristics: 100-240 VAC, 50/60 Hz (universal input) with per-outlet metering
- Power measurement: Real-time voltage, current, active power (W), apparent power (VA), and energy (kWh) per outlet
- Communication and management: Ethernet connectivity with support for standard management protocols; web-based interface for configuration and monitoring
- Protection and alerts: Overload detection and alarms with configurable thresholds; event logs for historical analysis
- Physical form factor: 19-inch rack-mountable PDUs designed for professional data center deployments; front-access outlets and clear labeling for easy outlet identification
How to install Panduit P48F12M Monitored Per Outlet PDU
Step 1 — Prepare the rack and mounting area: Clear the rack space where the PDU will be installed. Verify that there is adequate clearance for cables and airflow. Inspect the mounting rails or brackets to ensure compatibility with your 19-inch rack system.
Step 2 — Mount the PDU in the rack: Attach the PDU securely to the rack using the provided mounting hardware. Confirm that the unit is level and firmly fastened to prevent vibration or movement during operation. Route power and data cables cleanly to minimize tangling and ensure efficient cooling paths.
Step 3 — Connect power and network: Plug the PDU into a dedicated electrical circuit appropriate for your environment. Connect the PDU’s network interface to your IT management network using a stable Ethernet connection to enable remote monitoring and data collection.
Step 4 — Initial configuration: Access the PDU’s web-based management interface and configure the IP address (static or DHCP as preferred). Set up SNMP communities or credentials if you plan to integrate with existing DCIM or monitoring systems. Map each outlet to its corresponding device or rack position to ensure accurate attribution of energy data.
Step 5 — Configure thresholds and alerts: Define per-outlet alarm thresholds for voltage, current, and temperature. Enable email, syslog, or SNMP trap alerts as needed, so operations staff receive immediate notices if an outlet or environment deviates from safe parameters.
Step 6 — Validate data collection: Verify that the management interface reflects real-time measurements from every outlet. Check that environmental sensors report accurate ambient temperature and humidity readings, and test a generated alert to confirm proper notification routing.
Step 7 — Documentation and ongoing maintenance: Document outlet mappings, configured alerts, and network settings for future reference. Schedule periodic checks of firmware updates and monitor data trends to identify potential capacity or cooling concerns before they become issues.
Frequently asked questions
- What is a Monitored Per Outlet PDU? A Monitored Per Outlet PDU provides power distribution to individual outlets with dedicated energy measurement per outlet. This enables granular visibility into power usage, supports precise load balancing, and helps prevent overloads at the device level.
- What monitoring capabilities does the P48F12M offer? It offers outlet-level electrical metering (voltage, current, power, energy), along with environmental sensing (temperature and humidity) at the rack level, plus configurable alarms and event logging for proactive management.
- How can I access and use the monitoring data? Data is available via a web-based management interface and can be integrated with network management systems using standard protocols (such as SNMP). You can also export data for DCIM workflows and reporting.
- Can the PDU integrate with existing DCIM tools? Yes. The P48F12M is designed for compatibility with common DCIM ecosystems through SNMP and standard data interfaces, enabling seamless correlation of power metrics with asset and environmental data.
- Is this PDU suitable for 19-inch racks? Absolutely. It is built to fit standard 19-inch racks and supports organized cable management and easy deployment in data center environments.
