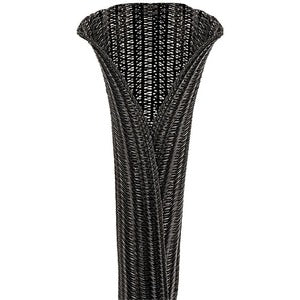

Pan-Wrap SE150PSFR-LQR0 Pan-Wrap Braided Sleeving

Discover Pan-Wrap Braided Expandable Sleeving, a high-performance solution engineered to protect and organize large cable and wire bundles. This Pan-Wrap SE150PSFR-LQR0 model features a 1.50" diameter, a black exterior with white tracer, and a flame-retardant design built on durable polyethylene terephthalate (PET). With 75 feet per reel, it’s ideal for data centers, industrial automation, automotive harnesses, and other demanding environments where reliability and clean cable management matter. The sleeving’s open weave and exceptional flexibility make it easy to route through tight spaces, while preventing heat buildup and keeping bundles neat and accessible for maintenance or future upgrades.

• Expandable braided sleeving that grows with the bundle, accommodating growth and changes without sacrificing protection or organization
• 1.50" diameter in a sleek black with white tracer, designed to stand out for easier identification and routing
• Flame-retardant PET construction delivers reliable fire resistance while maintaining light weight and durability
• Open weave fabrication provides excellent flexibility and airflow, reducing heat buildup and facilitating routing through complex paths
• Patented installation tool enables fast loading of maximum bundle diameters, speeding installation and reducing handling time

Technical Details of Panduit Pan-Wrap SE150PSFR-LQR0 Pan-Wrap Braided Sleeving

• Diameter: 1.50 inches (38.1 mm)
• Color: Black with white tracer
• Material: Polyethylene terephthalate (PET)
• Flame retardant: Yes
• Length per reel: 75 feet
• Open weave: Yes, enabling airflow and easy flexing
• Flexibility: Highly flexible to accommodate tight bends and complex routing
• Installation tool: Patented installation tool designed to load sleeving over maximum bundle diameters quickly

How to install Panduit Pan-Wrap Braided Sleeving

To achieve a clean, protected bundle with Pan-Wrap, begin by planning the length you need. Measure the full span of the cable assembly and allow a little extra for future expansion. Cut the sleeving to the required length with a sharp cutting tool, taking care to avoid fraying. If your application uses the patented installation tool, load the sleeving onto the tool’s loader, then position the tool at the end of the bundle and gently advance the sleeving over the cables. As the sleeving begins to encase the bundle, guide it along bends and corners to maintain an even, smooth wrap. For tight radii or complex routes, slightly stretch the sleeving to accommodate the diameter without kinking, then continue feeding until the entire bundle is encased. Once in place, ensure the sleeving sits comfortably around connectors and terminations and trim any excess material. Secure the ends with approved fasteners or heat-shrink techniques if required by your environment. The result is a durable, flame-retardant shield that improves cable management, reduces wear, and enhances overall system reliability.

Tips for optimal results:

– Plan for expansion: expandable sleeving is designed to accommodate future changes, so leave a little extra length where additional cables may be added later.

– Maintain airflow: the open weave promotes air movement, helping dissipate heat in high-density installations.

– Protect critical connections: route cables away from sharp edges and ensure connectors remain accessible for maintenance without compressing the sleeving.

– Verify compatibility: confirm that the PET sleeving’s flame-retardant rating meets your local safety standards and electrical codes.

Frequently asked questions

• Q: What is the Pan-Wrap SE150PSFR-LQR0 used for? A: It is a braided, expandable sleeving solution designed to protect and organize large bundles of cables and wires, offering flame retardant protection, durability, and easy installation in demanding environments.
• Q: Is it flame retardant? A: Yes. The PET-based Pan-Wrap sleeving is flame retardant, suitable for electrical and industrial applications requiring enhanced safety.
• Q: How long is each reel? A: Each reel provides 75 feet of sleeving, offering ample material for sizable installations and multiple runs.
• Q: What is the diameter and color? A: The sleeving has a 1.50-inch diameter and comes in black with a white tracer for easy visibility and identification.
• Q: Does it come with a patented installation tool? A: The product line includes a patented installation tool designed to facilitate loading and speed up installation when dealing with maximum bundle diameters.
• Q: How does the open weave benefit my installation? A: The open weave provides excellent flexibility while allowing airflow, which helps prevent heat buildup and makes routing around tight pathways easier.
