Description

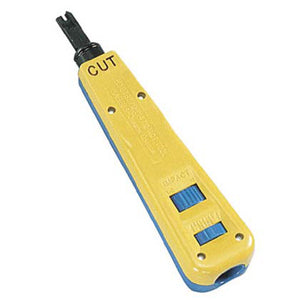

The Panduit PDT110 Pan-Punch Punchdown Tool is engineered for professional installers who demand reliable, high-performance terminations on 110 connecting blocks and patch panels. This versatile tool excels at terminating wires on both the cable and cross-connect sides, making it ideal for data centers, network closets, and field installs where speed and precision matter. With compatibility for single-pair terminations on the back of Panduit DP6, 10Gig, DP6 PLUS, and DP5e Patch Panels, you can streamline workflows and reduce rework. The reversible blade lets you terminate with or without cutting wire, giving you flexibility to preserve conductors when needed. The PDT110 also supports 5-pair terminations, seating 3-, 4-, or 5-pair connectors, enabling efficient processing across a range of configurations. Built to withstand daily use and designed for comfort, this tool helps installers achieve consistent, high-quality terminations, time after time.
- Terminations on both cable and cross-connect sides of 110 connecting blocks for versatile, rapid wiring across 110 systems.
- Single-pair termination capability on the back of DP6, 10Gig, DP6 PLUS, and DP5e Patch Panels to accelerate panel work and reduce waste.
- Reversible blade option to terminate without cutting wire, delivering cleaner terminations and less conductor waste when needed.
- 5-pair punchdown functionality that seats 3-, 4-, or 5-pair connectors, enabling flexible configurations across Panduit installations.
- Ergonomic, durable design built for daily field use, providing precise control and reduced operator fatigue during long projects.
Technical Details of Panduit PDT110 Pan-Punch Punchdown Tool
- Compatibility: Terminates wires on 110 connecting blocks and is suitable for use with Panduit DP6, 10Gig, DP6 PLUS, and DP5e Patch Panels (including back-side single-pair terminations).
- Punchdown capacity: Supports 3-, 4-, and 5-pair connectors for diverse wiring requirements.
- Blade: Reversible blade enables termination with or without cutting the conductor, offering flexibility for different installation needs.
- Construction and use: Designed for rugged field environments with a focus on precision and repeatability in terminations.
- Typical applications: Ideal for network housing and data-center terminations where 110-block and patch-panel terminations are common.
How to Install Panduit PDT110 Pan-Punch Punchdown Tool
Preparing for use starts with confirming compatibility. Ensure you are working with 110 connecting blocks and the appropriate Panduit patch panel model—DP6, 10Gig, DP6 PLUS, or DP5e—where single-pair terminations are supported on the back. With the PDT110 in hand, follow a straightforward process to achieve clean, reliable terminations:
1) Inspect and prepare: Check the tool for any signs of damage and ensure the blade is clean and properly seated. Cut or strip conductors as required by your project standards, keeping conductors neatly organized and ready for insertion.
2) Align the conductor: Position the wire into the correct slot of the 110 block or onto the back-side connector of the supported patch panel. Ensure the conductor is straight and fully seated to avoid mis-termination or bounce.
3) Use the reversible blade: If you are terminating without cutting wire, engage the reversible blade in the position that preserves the conductor length. When a cut is desired, use the opposite blade orientation to complete the termination cleanly.
4) Deliver the punch: Apply steady, controlled pressure to seat the wire into the terminal. For multi-pair terminations, align each pair and ensure all conductors are seated in their respective positions for uniform terminations across the connector.
5) Verify termination: Inspect each terminated conductor for proper seating and alignment. If needed, rework any conductor that shows signs of improper seating. Use a test tool or continuity tester to confirm connectivity and performance before final cabling assembly.
6) Document and manage: Label the terminated cables and record the termination details as part of the project documentation to maintain traceability and simplify future maintenance or rework.
Frequently asked questions
-
Q: What is the Panduit PDT110 Pan-Punch Punchdown Tool used for?
A: It is a punchdown tool designed to terminate wires on 110 connecting blocks and cross-connects, with compatibility for back-side single-pair terminations on related Panduit patch panels. -
Q: Does the PDT110 have a reversible blade?
A: Yes. The reversible blade allows termination with or without cutting the wire, offering flexibility to preserve conductors when needed. -
Q: Which patch panels support single-pair termination with this tool?
A: The tool supports single-pair terminations on the back of DP6, 10Gig, DP6 PLUS, and DP5e Patch Panels. -
Q: Can the PDT110 terminate 3-, 4-, and 5-pair connectors?
A: Yes. The tool is designed to seat 3-, 4-, or 5-pair connectors for a range of 110-system configurations. -
Q: Is the PDT110 suitable for heavy daily use in the field?
A: The PDT110 is built for rugged field use and aims to provide accurate, repeatable terminations even under demanding installation schedules.
