Panduit Power Connector

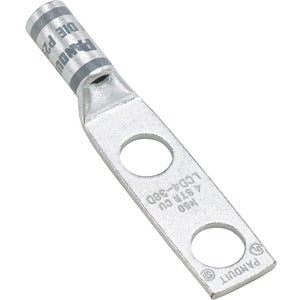

Built for reliability in industrial electrical systems, the Panduit Power Connector is a two-hole, standard barrel lug with a window designed to securely terminate heavy gauge conductors while providing easy visual inspection of the wiring. This tin-plated connector delivers corrosion resistance and durable performance in harsh environments, making it an ideal choice for power distribution, equipment hookups, and control panels where dependable connections matter. The lug’s window feature lets technicians verify proper seating and termination during installation and maintenance, reducing the risk of loose connections and related faults. With its precise dimensions and robust construction, this Panduit lug is engineered to maintain low electrical resistance and stable performance across a wide range of operating conditions, from manufacturing floors to outdoor enclosures and data center racks. Whether you’re upgrading an existing installation or assembling a new power distribution network, this connector provides a trustworthy solution that aligns with Panduit’s reputation for quality and consistency.

• Two-hole, standard barrel lug with window for straightforward mating and easy visual inspection of wire termination, ensuring a secure and reliable connection every time.
• Wire compatibility designed for heavy-duty applications: accepts #4 - #3 AWG stranded (STR) and #2 AWG solid (SOL) conductors, enabling high-current terminations without compromising footprint or accessibility.
• Precise mounting and layout features: #10 stud hole and 0.63" hole spacing provide flexible installation options on a variety of panels, distribution blocks, and electrical enclosures while maintaining consistent alignment.
• Corrosion resistance built in: tin-plated finish inhibits corrosion and oxidation, extending service life in humid, salty, or harsh environments and reducing maintenance needs over time.
• Trusted Panduit quality for dependable power connections: engineered to meet stringent industry standards, enabling seamless integration with Panduit accessories and compatible components for durable, long-lasting performance.

Technical Details of Panduit Power Connector

• Wire Range: #4 - #3 AWG stranded (STR); #2 AWG solid (SOL)
• Stud Hole: #10
• Hole Spacing: 0.63 inches
• Finish: Tin-plated to inhibit corrosion
• Type: Two-hole, standard barrel lug with window
• Brand: Panduit

How to install Panduit Power Connector

• Verify compatibility: Confirm the wire sizes (/#4–#3 AWG STR and #2 AWG SOL) and the stud hole size match your equipment requirements before installation.
• Prepare conductors: Strip insulation to expose clean copper conductors and twist stranded wires to a neat, uniform profile suitable for insertion into the lug barrel.
• Position the lug: Align the lug’s window and barrel holes with the mounting surface and the corresponding studs or terminals on the power source or panel.
• Insert conductors: Place the stripped ends into the lug’s barrel holes, ensuring full seating and proper alignment with the terminal interface.
• Secure and inspect: Tighten any necessary fasteners or terminals according to your equipment’s torque requirements and electrical codes, then visually inspect through the window to confirm a solid, clean termination.

Frequently asked questions

• Q: What wires can this Panduit Power Connector accept? A: It accepts #4 - #3 AWG stranded (STR) and #2 AWG solid (SOL) conductors.
• Q: What is the stud hole size and hole spacing? A: The lug features a #10 stud hole and 0.63" hole spacing for flexible mounting.
• Q: Is the connector corrosion resistant? A: Yes, it is tin-plated to inhibit corrosion and extend service life in challenging environments.
• Q: What is the purpose of the window on the lug? A: The window allows visual inspection of the wire termination to verify proper seating and secure connection during installation and maintenance.
• Q: Can I use this lug with Panduit accessories? A: Yes. The connector is designed to integrate with Panduit products and accessories to ensure a cohesive, reliable power distribution solution.
