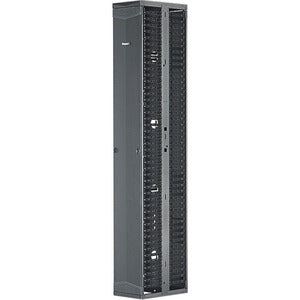

Panduit PR2VD1296 Dual Sided Manager — Patchrunner 2 Vertical Cable Manager
The Panduit Patchrunner 2 Vertical Cable Manager, model PR2VD1296, is engineered to deliver maximum cabling density without sacrificing accessibility or airflow. Dual-sided, built from steel, and finished in a durable black coating, this 52RU vertical manager is designed to streamline cable routing in data centers, network closets, and industrial environments. A fully pre-assembled solution, it lowers installation time and total cost of ownership while providing robust, long-lasting performance. With its dual-sided design, technicians can manage cables on both faces, enabling clean organization, simplified maintenance, and improved cooling efficiency in high-density racks. Whether you’re expanding a legacy closet or deploying a new data center footprint, this Patchrunner 2 unit offers the reliability, versatility, and space optimization needed to support modern IT infrastructure.
- The dual-sided design maximizes cable density while keeping pathways open for airflow, enabling tidy routing on both sides of the manager and allowing for easier termination and troubleshooting in busy environments.
- Constructed from steel with a rugged black powder-coated finish, this vertical cable manager is built to withstand frequent access, heavy cables, and daily wear in data centers and server rooms, ensuring consistent performance over time.
- Fully pre-assembled to accelerate deployment, the PR2VD1296 reduces on-site labor, minimizes installation complexities, and lowers total cost of ownership by eliminating the need for extensive field assembly.
- Designed to integrate seamlessly with the Panduit Patchrunner 2 family, providing a scalable framework for future growth. Its compatibility supports streamlined cabling strategies across racks and rows in densely populated facilities.
- Ideal for applications requiring high-density cable management, improved organization, and better airflow. The 52RU capacity accommodates large volumes of cables, panels, and leads, helping you maintain orderly racks and efficient maintenance workflows.
Technical Details of Panduit PR2VD1296 Dual Sided Manager
- Product type: Vertical Cable Manager
- Series: Patchrunner 2
- Configuration: Dual-sided
- Material: Steel
- Finish: Black powder-coated
- RU capacity: 52RU
- Mounting: 19-inch rack compatible
- Quantity: 1 piece (1pc)
- Application: Data centers, network closets, and industrial environments requiring high-density cable management
how to install Panduit PR2VD1296 Dual Sided Manager
- Prepare the rack and workspace. Ensure the rack rails are accessible, clean, and properly grounded. Confirm that the surrounding area can accommodate dual-sided access for side panels and cabling routes.
- Unpack and inspect the unit. Check for any shipping damage and verify that the PR2VD1296 is complete and ready for mounting as a single, pre-assembled frame. Keep hardware organized to simplify installation.
- Position and align. Place the dual-sided vertical manager into the rack bay, aligning mounting holes with the 19-inch rack rails. Ensure there is ample clearance for cable routing on both sides and that the frame sits plumb and secure.
- Secure the frame. Use the appropriate rack screws or hardware compatible with your rack system to fasten the unit firmly to the rails. Confirm all fasteners are tight and that the frame cannot shift or tilt during cable management tasks.
- Route and organize cables. Begin by routing primary power and data cables on each side, keeping pathways neat and separated by function (e.g., different sides for different network segments). Use Velcro straps or cable ties to maintain orderly bundles and leave sufficient slack for maintenance and future changes.
- Label and test. Apply clear cable labels for quick identification and perform a quick run-through of the connected equipment to verify proper connectivity. Check airflow around the manager to ensure there are no obstructions and that cooling paths remain clear.
Frequently asked questions
- Q: What is the capacity of the Panduit PR2VD1296? A: It is a dual-sided vertical cable manager with a 52RU capacity, designed to maximize cable density while maintaining accessible management paths on both sides.
- Q: Is this unit compatible with other Panduit Patchrunner components? A: Yes. The PR2VD1296 is part of the Patchrunner 2 family and is designed to integrate with compatible Patchrunner panels and accessories for a cohesive cable management system.
- Q: What mounting size does it require? A: The unit uses a standard 19-inch rack mounting configuration, suitable for most data center and network closet racks.
- Q: Is the product pre-assembled? A: Yes. The Patchrunner 2 vertical cable manager is fully pre-assembled to reduce on-site labor and expedite deployment.
- Q: Can I expand this system in the future? A: The Patchrunner 2 family is designed for scalable installations, allowing you to add compatible components to extend your cable management solution as your infrastructure grows.
