Panduit SFQ Cassette — QuickNet OM4 MTP to LC, 8-Fiber High-Density Fiber Solution

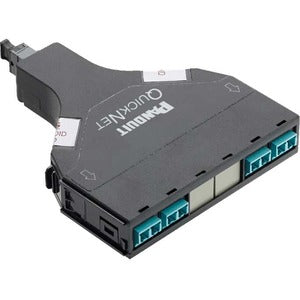

The Panduit QuickNet SFQ Cassette is a compact, high-density fiber management module designed for fast, reliable deployments in data centers and enterprise networks. It converts an OM4 MTP connection to eight individual LC channels, enabling streamlined patching with superb scalability. With standard IL and Method B polarity, this cassette is engineered to deliver consistent insertion loss performance and predictable signal integrity across multi-fiber links. The black cover conceals a black male MTP connector and four aqua LC adapters, each equipped with integral shutters to prevent contamination during installation and operation. Built for durability, ease of installation, and maintenance, the SFQ Cassette fits seamlessly into modern patch panels and modular enclosures, delivering flexible routing options without compromising fiber integrity or network performance.

• Eight-fiber capacity in a compact footprint: The SFQ cassette combines eight fibers in a single, standardized IL configuration using MTP to LC interfaces. This design supports dense, scalable fiber architectures, simplifying cable routing in racks and enclosures while preserving signal quality across short and long-haul runs.
• Reliable contamination protection with integral shutters: Four aqua LC adapters feature integral shutters that close when not in use, dramatically reducing dust, debris, and environmental contaminants from entering the connector ferrules. This proactive shield helps maintain optimal contact cleanliness and consistent performance over time.
• OM4 compatibility for future-proof performance: Built around OM4 multimode fiber, the SFQ Cassette is optimized for high-bandwidth applications such as 10 GbE, 40 GbE, and beyond. This ensures extended reach and capacity in modern data-center fabrics while preserving cost-efficient, multi-purpose cabling.
• Polarity and standard compliance for plug-and-play reliability: The cassette adheres to standard IL and uses Method B polarity to ensure proper signal orientation across interconnected components, reducing the risk of miswiring and simplifying installation and troubleshooting for technicians.
• Easy integration with QuickNet ecosystems and patch panels: Designed to fit into Panduit QuickNet systems, the SFQ Cassette provides a plug-and-play solution that accelerates deployment, minimizes downtime, and offers consistent performance in high-density environments with simple cable management and labeling options.

Technical Details of Panduit SFQ Cassette

• Fiber type: OM4 multimode fiber
• Interface: MTP (male) to LC adapters (4x LC)
• Total fiber count: 8 fibers
• Polarity: Method B
• Insertion Loss (IL) standard: Standard IL-compliant
• Cover color: Black
• Adapter color and features: Four aqua LC adapters with integral shutters
• Contamination protection: Integral shutters on LC adapters
• Application: High-density fiber distribution in data centers and enterprise networks
• Construction: Robust enclosure with secure mounting for patch panels and modular enclosures

how to install Panduit SFQ Cassette

• Prepare the workspace: Ensure the patch panel or enclosure is clean, free of dust, and compatible with SFQ cassettes. Power down any equipment as needed and organize cables to minimize tension during installation.
• Inspect and orient: Confirm the SFQ cassette is the correct polarity (Method B) and verify the eight LC endpoints align with the intended fiber runs. Check that the black MTP connector is securely seated in the MTP port on the cassette.
• Install into the rack or panel: Slide the SFQ cassette into the designated slot or backplane per the enclosure’s instructions. Ensure it is firmly seated and engaged with any mounting rails or guides to prevent movement during operation.
• Connect OM4 fibers: Attach the OM4 MTP backbone or trunk to the cassette’s MTP connector. Route eight LC fibers to their corresponding destinations, guiding cables through management channels to avoid bending or stress.
• Close shutters and label: Ensure all LC adapters’ integral shutters are closed when not in use. Label each LC port clearly for future maintenance and troubleshooting, and verify that all connections are secure.
• Test and document: Perform continuity and loss testing with an appropriate OTDR or power meter setup. Validate that each LC channel meets expected insertion loss targets and polarity alignment. Document results for future reference and inventory management.

Frequently asked questions

• What is the Panduit SFQ Cassette used for? The SFQ Cassette is a high-density fiber distribution module that converts OM4 MTP connections to eight LC channels, enabling scalable, flexible patching in data centers and enterprise network environments.
• How many fibers does it support? It supports a total of eight fibers, arranged as an OM4 MTP input with four LC adapters on the output side, providing eight individual LC connections.
• What polarity does it use? It uses Method B polarity, which ensures proper signal directionality across interconnected components in standard patching configurations.
• Do the LC adapters have shutters? Yes. The four aqua LC adapters include integral shutters that protect the ferrules when ports are unused, helping maintain cleanliness and performance over time.
• Is this cassette compatible with OM4 networks? Yes. The SFQ Cassette is designed around OM4 multimode fiber, delivering high bandwidth capability suitable for 10 GbE and beyond, with good reach and performance in dense data-center cabling.
