Panduit SFQ SFQ Cassette

PanduitSKU: 12750945

Price:
Sale price$663.98

Description

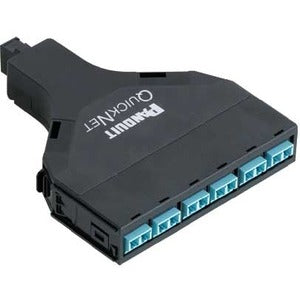

Panduit SFQ SFQ Cassette

The Panduit QuickNet SFQ Cassette delivers a compact, high-density fiber solution designed for modern data centers and enterprise networks. This OM4 MPO to LC cassette supports 12 fibers in a single module, enabling scalable uplinks and downlinks while preserving superior signal integrity. With a sleek black cover, a robust black MPO connector, and six aqua LC adapters equipped with integral shutters, the SFQ Cassette protects precious ferrules from dust, maintains clean connections, and simplifies hot-swapping in dense rack environments. engineered for reliability and ease of integration, it is an essential component for building resilient, future-ready fiber fabrics that meet today’s high-bandwidth demands.

  • 12-fiber OM4 MPO to LC configuration: This cassette packs 12 optical channels into a compact form factor, enabling dense packing of high-speed links within data center shelves and cross-connect cabinets. The MPO input provides a single, easy-to-manage interface while the LC outputs deliver clean, modular connections to patch panels or trunk cables, supporting scalable bandwidth growth from 40G to 100G and beyond.
  • Ultra-low insertion loss for enhanced link budgets: Designed to minimize signal loss, the SFQ Cassette helps maximize the effective reach of each link and reduce the need for additional amplification or regeneration. This translates to better performance under load, lower power costs, and improved reliability across your fiber network, especially in environments with tight budget margins.
  • Universal polarity for flexible deployments: The SFQ Cassette employs universal polarity, allowing straightforward integration across different chassis and system architectures without the need for polarity rearrangements. This flexibility simplifies inventory management, reduces installation time, and enables seamless upgrades or reconfigurations as your data center topology evolves.
  • Six aqua LC adapters with integral shutters: The six LC adapters are color-coded aqua and feature integral shutters to guard the ferrule tips from dust and moisture. This protective design helps maintain cleanliness during fieldwork and routine maintenance, lowering the risk of contamination that can degrade signal quality and increase insertion loss over time.
  • Durable black cover and reliable MPO interface: The cassette’s black cover and black MPO connector provide a robust, industry-standard interface that holds up under rigorous DC rack conditions. The design supports quick field swaps and minimizes downtime, ensuring your network remains resilient during maintenance windows or reconfigurations.

Technical Details of Panduit SFQ SFQ Cassette

  • Fiber Type: OM4
  • Configuration: MPO (12-fiber) to LC
  • Number of Fibers: 12
  • Polarity: Universal
  • Adapters: 6 aqua LC adapters with integral shutters
  • Cover/Connector: Black cover; Black MPO connector
  • Insertion Loss: Ultra low
  • Application: QuickNet SFQ Fiber Cassette for high-density data center interconnects

how to install Panduit SFQ SFQ Cassette

  • Step 1 – Prepare the workspace: Power down equipment if required by your site procedures, and ensure the rack, tray, and cassette slot are clean and free from debris. Ground yourself to prevent static discharge, and verify that you have the correct QSFP/SFP modules or transceivers ready for the SFQ system.
  • Step 2 – Inspect connectors and polarity: Examine the MPO input and LC outputs for any signs of damage or contamination. Verify universal polarity compatibility with your chassis to ensure plug-and-play operation, and have a cleaning kit on hand for any precautionary maintenance.
  • Step 3 – Seat the MPO connector: Align the 12-fiber MPO input with the cassette inlet. Gently push until the connector seats securely, ensuring there is no undue force that could bend pins or misalign the ferrules. Confirm that the connector latch engages as designed.
  • Step 4 – Connect LC trunks or patch cords: Route the six aqua LC fiber adapters to the corresponding LC trunks or patch panels, making sure each trunk is seated fully and the integral shutters remain closed when unmasked. Maintain proper bend radius and avoid sharp twists to preserve signal integrity across the links.
  • Step 5 – Verify and test: Reconnect any power or communications as required, power on equipment, and perform link and loss tests with appropriate fiber test equipment. Check that the measured insertion loss aligns with expectations for ultra-low IL designs and monitor for any signs of contamination or misalignment that would require re-cleaning or reseating.

Frequently asked questions

  • Q: What is the Panduit SFQ Cassette best used for? A: It is a 12-fiber OM4 MPO-to-LC cassette designed for high-density data center interconnects, delivering reliable, low-loss connections in QuickNet SFQ systems. It supports scalable bandwidth and simplifies building robust fiber fabrics for modern networks.
  • Q: How many fibers does the SFQ cassette support? A: The cassette supports 12 fibers in total via the MPO input and LC outputs, enabling dense aggregation of high-speed links in a single module.
  • Q: What does universal polarity mean for this cassette? A: Universal polarity means the cassette can be deployed in any polarity configuration without requiring polarity remapping, providing flexibility across different chassis and deployment scenarios.
  • Q: Do the LC adapters have shutters? A: Yes, the six aqua LC adapters include integral shutters to protect the ferrule tips from dust and contaminants when not mated, helping to preserve connection quality over time.
  • Q: How do I maintain low insertion loss with this cassette? A: Maintain clean connectors, handle components with care, and follow proper cleaning and seating procedures during installation. The SFQ cassette is engineered for ultra-low insertion loss, which contributes to stable performance in high-density deployments.
