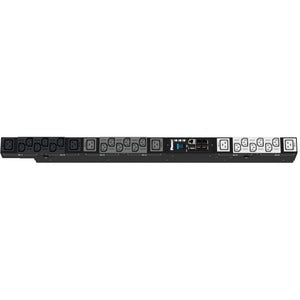

Panduit SmartZone MI 24-Outlets PDU

Elevate energy visibility and power reliability in demanding IT environments with the Panduit SmartZone MI 24-Outlets PDU. This monitored, 24-outlet power distribution unit is engineered for data centers, server rooms, and high-density racks where uptime and efficient power use are paramount. Featuring a precise configuration of outlets—18 IEC 60320 C13 and 6 IEC 60320 C19—all arranged in a compact 0U vertical footprint, it fits seamlessly into standard 19-inch racks without sacrificing valuable space. With a 230 V AC supply and a network (RJ-45) interface, SmartZone MI delivers real-time energy data, remote management, and circuit protection, enabling IT teams to optimize workloads, predict failures, and extend the life of critical equipment. This PDU is designed to integrate with existing DCIM workflows, providing actionable insights that translate to lower operating costs and improved service continuity.

• Monitored performance with active metering: Gain granular visibility into real-time power draw, voltage, total energy consumption, and per-outlet load. This enables data-driven decisions for workload placement, peak shaving, and proactive capacity planning, ultimately reducing wasted energy and cooling overhead.
• Flexible and extensive outlet configuration: Supports a wide range of devices with 18 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, accommodating servers, storage, switches, routers, and other critical IT gear. The mix maximizes outlet compatibility while preserving organized cable management across your rack.
• Space-saving 0U vertical design: The vertical, 0U form factor minimizes rack footprint while maintaining easy access to outlets and ports. This makes it ideal for dense data centers, telecom rooms, and edge deployments where rack space is at a premium but reliability cannot be compromised.
• Remote networked management with security-ready connectivity: An integrated RJ-45 Ethernet port enables remote monitoring, alerting, and data export to DCIM or monitoring platforms. You can configure thresholds, receive alerts for overcurrent or abnormal voltages, and streamline power management across multiple PDUs from a single interface.
• Enhanced reliability and protection for critical loads: Beyond distribution, the SmartZone MI provides robust circuit protection and controlled power delivery to minimize downtime, improve equipment longevity, and support uptime SLAs in mission-critical environments. Real-time insight helps you quickly identify drifting sensors or degraded circuits before a failure occurs.

Technical Details of Panduit SmartZone MI 24-Outlets PDU

• Outlet configuration: 18 x IEC 60320 C13, 6 x IEC 60320 C19
• Input voltage: 230 V AC
• Mounting style: 0U vertical rack-mountable
• Networking: RJ-45 Ethernet for remote monitoring and data export
• Monitoring: Monitored PDU with active energy metering
• Usage: Ideal for data centers, IT rooms, and high-density racks needing visibility and control

How to install Panduit SmartZone MI 24-Outlets PDU

• Prepare the rack: verify the mounting rails are clean, level, and capable of supporting the PDU’s weight. Clear space for cable management and ensure there is adequate ventilation around the unit.
• Mount the PDU: align the vertical 0U body with the rack rails and secure it using the appropriate screws through the mounting holes. Double-check that the PDU sits firmly and is level for proper outlet access and cord routing.
• Connect mains power: attach the PDU to the building’s 230 V AC power supply using the correct power cord. Ensure the circuit can handle the anticipated load and follow all electrical safety practices during connection.
• Establish network connectivity: connect the RJ-45 Ethernet port to your management network or DCIM system. Confirm link activity and ensure the PDU can be reached from your monitoring environment.
• Configure management settings: power on the PDU and access its management interface. Assign a static IP or enable DHCP, set a descriptive device name, configure alert thresholds for overcurrent or voltage deviations, and enable data export to your monitoring platform.
• Load and validate: connect IT devices to the 24 outlets (18 C13, 6 C19). Verify real-time readings in the management interface, confirm alerting works as configured, and validate that each outlet reports accurately for effective per-outlet management.

Frequently asked questions

• Q: What are the primary benefits of using the Panduit SmartZone MI 24-Outlets PDU?

  A: The PDU provides real-time energy metering, remote monitoring, per-outlet visibility, and proactive protection for critical IT loads, helping you optimize power usage, reduce downtime, and extend equipment life.

• Q: How many outlets does it have and what outlet types are included?

  A: It includes 24 outlets in total: 18 IEC 60320 C13 and 6 IEC 60320 C19, suitable for a broad range of servers, storage devices, and network equipment.

• Q: How is the unit managed and monitored?

  A: The PDU ships with an Ethernet (RJ-45) interface for remote monitoring. It can be integrated with DCIM tools and monitoring platforms to provide real-time metrics, alerts, and data export for analysis and reporting.

• Q: What installation considerations should I keep in mind?

  A: Plan for adequate rack space, ensure proper cabling for organized management, verify mains capacity on the circuit, and configure network settings and alert thresholds to align with your IT governance and uptime priorities.

• Q: Is this unit suitable for edge deployments or only data centers?

  A: While it is ideal for data centers and IT rooms, its compact 0U vertical design and robust monitoring capabilities also make it suitable for edge deployments where space is tight but power visibility is crucial.
