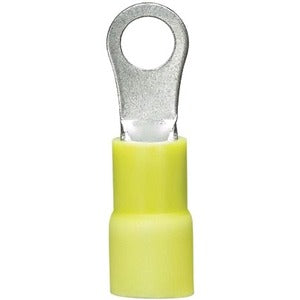

Panduit Terminal Connector — 500 Pack Tin-Plated Ring Terminals, Yellow

This Panduit Terminal Connector pack delivers a dependable, corrosion-resistant solution for electrical connections across automotive, industrial, and general wiring projects. With 500 tin-plated ring terminals in a bright yellow color, this bundle is designed to simplify inventory management while providing reliable performance in demanding environments. Panduit is known for quality electrical components, and this terminal connector exemplifies their commitment to secure, long-lasting connections and fast, efficient installations.

• Corrosion-resistant tin plating: Each terminal is tin-plated to inhibit corrosion, extending service life in moisture-rich, salty, or harsh environments. The protective plating helps prevent oxidation at the crimped joint, supporting consistent electrical conductivity over time.
• Ring terminal design for secure connections: The classic ring-terminal configuration provides a robust, reusable contact point that can be bolted or screwed to a stud or terminal block, delivering reliable retention even under vibration or movement.
• High-visibility yellow for quick identification: The distinctive yellow color-coding makes it easy to identify the correct terminal in complex harnesses and bundles, speeding assembly and reducing the chance of mismatched connections.
• Economical bulk pack (500 pieces): Perfect for shops, service centers, and stocking programs, this bulk pack offers cost-effective procurement while keeping an ample supply of ring terminals on hand for routine maintenance and large projects.
• Versatile for multiple applications: Suitable for automotive wiring, panel building, and general electrical installations, these terminals work with a wide range of wire sizes and are compatible with common crimping tools for a secure, professional finish.

Technical Details of Panduit Terminal Connector

• Pack quantity: 500
• Terminal type: Ring terminal
• Plating: Tin
• Color: Yellow

How to Install Panduit Terminal Connector

Installing Panduit tin-plated ring terminals is straightforward with the right crimping tool and a clean, prepared wire end. Follow these steps to ensure a secure, lasting connection:

• Prepare the wire by stripping insulation to the length specified for the terminal size you are using, ensuring a clean, square cut without frayed strands.
• Inspect the stripped conductor for any nicks or damaged strands. If needed, trim and re-stripe to obtain a fresh, undamaged contact area.
• Insert the stripped wire into the terminal barrel until the conductor rests fully against the back of the ring cavity, with no exposed conductor outside the terminal.
• Crimp the terminal with a compatible crimping tool designed for ring terminals and the wire gauge in use. Apply even pressure to create a secure compression that holds the wire firmly without crushing insulation.
• Inspect the crimp to confirm a tight bite with a clean, uniform crimp profile. Verify that the ring part sits square and that there is no unnecessary gap between the conductor and the terminal barrel.
• If required, apply additional protective measures such as heat shrink tubing or protective sleeves to seal the connection from moisture and contaminants, especially in automotive or outdoor environments.

Frequently asked questions

• What is included in the 500-pack Panduit Terminal Connectors? The 500-pack comprises tin-plated yellow ring terminals designed for secure crimp connections in a bulk supply, suitable for a range of electrical applications.
• Are these terminals corrosion-resistant? Yes. The terminals are tin-plated to inhibit corrosion, helping maintain reliable electrical performance in humid or challenging environments.
• What applications are best suited for Panduit Ring Terminals? They are ideal for automotive wiring, electrical panels, equipment enclosures, and general wiring harnesses where a secure ring-terminal connection is required.
• Do I need a special crimping tool? Use a compatible crimping tool that suits the terminal size and wire gauge you are using. Proper crimping ensures a reliable, vibration-resistant connection.
• Can I reuse these terminals? Ring terminals are typically designed for a single, secure crimp on installation. Reuse is not recommended as the crimp may not hold reliably upon re-crimping or removal.
