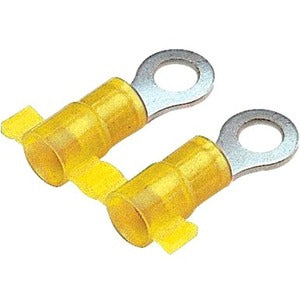

Panduit Terminal Connector – Tin-Plated Ring Terminal, Yellow Insulation, 2000 Pack

Discover the reliability and efficiency of the Panduit Terminal Connector, a bulk-pack solution engineered for demanding electrical installations. This 2000-pack delivers tin-plated ring terminals with bright yellow insulation, designed to deliver durable, corrosion-resistant connections across automotive, industrial, and electrical panel applications. The tin-plated finish inhibits oxidation at the crimp joint, helping maintain low contact resistance and long service life even in vibration-heavy or humid environments. The yellow insulation not only adds a safety-coded visual cue for quick identification but also provides clean, professional wiring that remains easy to inspect during maintenance. Whether you’re outfitting manufacturing lines, service fleets, or DIY projects with professional-grade components, this Panduit terminal connector set offers the quality, consistency, and bulk value you need to keep projects moving on schedule.

• Tin-plated finish for superior corrosion resistance and extended service life in challenging environments, including moisture, temperature cycling, and vibration.
• Yellow insulated body for immediate size or wire-gauge identification and enhanced safety during installation and inspections.
• Ring terminal design with a robust crimp barrel that promotes secure, low-resistance electrical connections when paired with a proper crimping tool.
• Bulk quantity of 2000 terminals per pack provides reliable supply for large-scale builds, ongoing maintenance, and high-volume manufacturing without frequent reordering.
• Versatile for a wide range of wiring applications, including automotive harnesses, control panels, power distribution, and general electrical installations requiring dependable terminations.

Technial Details of Panduit Terminal Connector

• Type: Ring terminal connector
• Finish/Plating: Tin-plated to inhibit corrosion and improve durability
• Insulation color: Yellow
• Pack quantity: 2000 terminals per pack
• Termination style: Crimp ring terminal designed for secure mechanical and electrical connection

How to Install Panduit Terminal Connector

• 1. Verify compatibility: Ensure the wire gauge matches the terminal size and that the ring terminal is appropriate for the stud or screw you plan to fasten it to.
• 2. Prepare the wire: Strip the insulation to the recommended length for the terminal barrel, taking care to avoid nicking or fraying the conductor strands.
• 3. Insert the conductor: Push the stripped wire fully into the barrel of the ring terminal until seated firmly and the conductor strands are visible within the barrel and not protruding.
• 4. Crimp securely: Use a properly rated crimping tool to form a tight, uniform crimp around the conductor and barrel. Apply the recommended force until the crimp is fully formed and inspect for uniformity and a solid seat.
• 5. Inspect and test: Check that the ring terminal sits flush against the connection surface and that there is no loose strands. If possible, perform a continuity test to confirm a solid electrical path and visually verify insulation integrity.

Frequently asked questions

• Q: What is the Panduit Terminal Connector used for?
  A: It is used to create secure ring-terminal connections on electrical wiring, commonly in automotive, industrial panels, and electrical harnesses, where reliable crimped terminations are required for safety and performance.
• Q: Is the terminal tin-plated?
  A: Yes. The terminal features tin plating to inhibit corrosion, reduce oxidation at the contact point, and improve durability in demanding environments.
• Q: How many terminals are included in the pack?
  A: The pack contains 2000 individual ring terminals, providing a bulk supply for large projects and repeated maintenance tasks.
• Q: What does the yellow insulation indicate?
  A: The yellow insulation is a color-coding feature that aids quick visual identification, enhances safety during installation, and helps with wiring organization and future maintenance checks.
