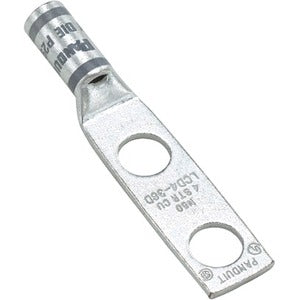

Panduit Terminal Connector – Tin-Plated, 50 Pack

Overview: The Panduit Terminal Connector in a convenient 50-pack delivers dependable, professional-grade terminations for electrical panels, control boxes, and wiring harnesses. Designed for reliability in industrial and commercial applications, this tin-plated terminal delivers stable conductivity and corrosion resistance across a wide temperature range. Built with Panduit’s standard of quality, these terminals are engineered to fit seamlessly into standard wiring schemes, providing a compact and durable solution for quick terminations, maintenance, and ongoing projects. Whether you’re stocking a maintenance cart or outfitting a new panel, these connectors offer consistent performance, ease of use, and long-term value for your electrical installations.

• Bulk 50-terminal pack: A large, ready-to-use supply for ongoing projects, service calls, and maintenance inventories, helping you minimize downtime and reorder frequency.
• Single-terminal design: Each unit is a standalone terminal, enabling flexible use across multiple wiring applications and simplifying inventory management.
• Tin plating for corrosion resistance: The tin-plated finish provides enhanced durability and consistent conductivity, helping resist environmental corrosion and ensuring reliable connections over time.
• Trusted Panduit quality: Panduit is known for robust electrical components built to exacting standards, delivering dependable performance in panels, enclosures, and control systems.
• Compact and versatile: The small footprint makes these terminals suitable for tight spaces in control panels, junction boxes, and harness assemblies, while remaining compatible with standard conductor sizes used in typical electrical installations.

Technical Details of Panduit Terminal Connector

• Pack Size: 50 terminals per pack
• Terminals: 1 x terminal per piece (single-terminal connector)
• Finish: Tin plating for enhanced corrosion resistance and improved conductivity
• Product Type: Terminal connector
• Brand: Panduit

How to install Panduit Terminal Connector

• Prepare the conductor: Verify the wire gauge and strip insulation to the length recommended by your connector specifications, ensuring the conductor is clean and Free of oxidation.
• Insert the wire: Insert the stripped conductor into the terminal cavity until it seats firmly and cannot be pulled out without applying a release mechanism (if present).
• Secure the termination: Use the appropriate crimping or tightening method specified by the terminal design and your tool set to create a tight, secure connection.
• Inspect the connection: Visually verify a full seating of the conductor, no copper exposure beyond the terminal edge, and a solid, uniform crimp or crimpless hold.
• Install in assembly: Place the completed terminal in the panel or harness, route cables neatly, and recheck clearances to prevent chafing or shorting.

Frequently asked questions

• Q: What is the Panduit Terminal Connector used for?

  A: It is designed to terminate wires securely in electrical panels, enclosures, and wiring harnesses, providing a reliable connection point within control systems and industrial installations.

• Q: Is the terminal tin-plated?

  A: Yes. The terminals feature tin plating, which helps improve corrosion resistance and maintain consistent electrical conductivity over time.

• Q: How many terminals are included in the pack?

  A: Each pack contains 50 terminals, making it ideal for bulk projects and ongoing maintenance work.

• Q: What applications are best suited for this terminal?

  A: It is well-suited for industrial and commercial electrical wiring, control panels, instrument enclosures, and general-purpose terminal connections where reliable, metal-to-wire terminations are required.

• Q: How can I ensure compatibility with my wires?

  A: Check the product specifications for conductor size ranges and confirm compatibility with your wire gauge and insulation type. When in doubt, consult the datasheet or reach out to Panduit support for guidance.
