Description

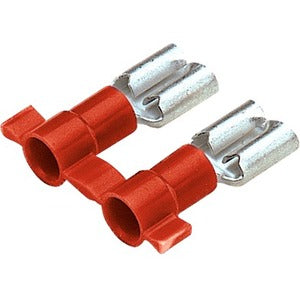

Experience a dependable, vibration-resistant electrical connection with the Panduit Terminal Connector. This female disconnect is crafted from brass and tin-plated for durability and corrosion resistance, while the red vinyl barrel insulation provides visibility and protective coverage. Designed for automotive, industrial, and electronics harnesses, it delivers reliable performance in demanding environments where vibration, movement, and harsh conditions can challenge lesser terminals. The combination of premium materials and precise geometry ensures a secure, long-lasting connection that performs reliably across the life of the circuit.
With a precise tab geometry and a compact footprint, the Panduit terminal delivers a secure, efficient connection that minimizes contact resistance and supports stable current flow under vibration. Its robust construction stands up to wear and environmental exposure, while the red vinyl insulation enhances visibility during assembly and maintenance, reducing the risk of miswiring in complex harness networks. This terminal is optimized for repeated mating and unmating cycles, making it ideal for automotive harnesses, industrial control panels, and electronics assemblies where dependable connections matter most.
This terminal is built to integrate seamlessly into existing harness systems. The RL3K part number comes in pk3000 packaging, providing scalable sourcing for both small projects and large-scale manufacturing. The standardized design ensures compatibility with common crimping tooling, blade terminals, and harness layouts, helping technicians achieve consistent performance across assemblies and reducing maintenance downtime in busy production environments.
- Premium construction for enduring reliability: Brass with a tin-plated finish resists corrosion and wear while delivering consistent electrical performance.
- Vibration-resistant design: Engineered to stay securely engaged in assemblies subject to movement, chatter, or vibration, helping prevent intermittent connections.
- Precise electrical interface and wire compatibility: Tab size 0.187/0.205 x 0.02 inches (4.8/5.2 x 0.5 mm); supports 22-18 AWG (0.5-1.0 mm²) wires for broad harness use.
- Compact, space-saving footprint: Length 0.77 inches (19.6 mm) and width 0.25 inches (6.4 mm) fit neatly into tight harnesses and control panels without compromising performance.
- Insulation, color-coding, and safety: Red vinyl barrel insulation protects the conductive barrel, reduces shorts, and aids quick identification and manual assembly checks in busy electrical systems; packaged in pk3000 for scalable sourcing.
Technical Details of Panduit Terminal Connector
- Material: Brass, tin-plated
- Type: Vibration-resistant female disconnect
- Insulation: Barrel insulated in red vinyl housing
- Tab size: 0.187/0.205 x 0.02 inches (4.8/5.2 x 0.5 mm)
- Wire range: 22-18 AWG (0.5-1.0 mm²)
- Length: 0.77 inches (19.6 mm)
- Width: 0.25 inches (6.4 mm)
- Color/Insulation: Red vinyl barrel
- Packaging: PK3000
- Part Number: RL3K
How to install Panduit Terminal Connector
- Prepare the wire: Use 22-18 AWG conductors; strip insulation to expose enough copper for a solid crimp, following your tool’s recommendations for conductor length.
- Select the proper crimping tool and die for a vibration-resistant female disconnect with the specified tab geometry to ensure a reliable crimp.
- Insert the stripped wire into the red vinyl insulated barrel until fully seated; confirm the conductor is fully engaged and the insulation is aligned with the barrel’s shoulder.
- Crimp with the recommended die set, applying firm, uniform pressure to create a clean, distortion-free crimp that preserves conductor integrity and minimizes contact resistance.
- Mate with a compatible blade terminal: ensure a secure connection with a positive engagement and verify there is no play or looseness when the assembly is tested or vibrated.
- Route and secure the harness: organize and anchor wires to minimize movement, abrasion, and shorting risk in busy environments; after installation, perform a continuity check to confirm proper electrical performance.
Frequently asked questions
- Q: What wire sizes does this terminal support? A: 22-18 AWG (0.5-1.0 mm²).
- Q: What is the tab size of the terminal? A: 0.187/0.205 x 0.02 inches (4.8/5.2 x 0.5 mm).
- Q: What is the insulation color and its purpose? A: Red vinyl barrel insulation for visibility, protection against shorts, and color-coding within harness networks.
- Q: Is this terminal suitable for automotive applications? A: Yes, it is designed for automotive, industrial, and electronics harnesses where reliability matters.
- Q: How many terminals are in a pk3000 package? A: 3000 terminals per package (pk3000).
- Q: What is the part number and compatibility? A: Part Number RL3K; designed to be compatible with standard crimp tooling and common blade terminals in typical harness systems.
