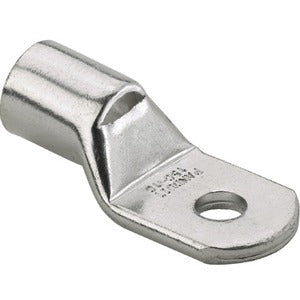

Panduit Terminal Connector – Tin-Plated, 10-Pack for Reliable Electrical Connections

Discover dependable, corrosion-resistant terminations with the Panduit Terminal Connector. Engineered for durability and crafted to meet the demands of professional electrical work, this 10-pack delivers consistent performance across a range of applications. Each terminal is tin-plated to inhibit corrosion, helping maintain strong electrical connections in challenging environments—from workshop projects to field installations. Panduit is a trusted name in data and electrical infrastructure, and these terminal connectors carry that reputation into every crimp and connection you make. Whether you’re wiring control panels, automotive harnesses, or industrial machinery, these terminals are designed to provide secure, reliable terminations that you can count on over time. The compact 10-pack format makes it easy to stock up and keep a ready supply on hand, ensuring you’re never stuck waiting for a replacement in the middle of a project.

• Key feature: Tin-plated terminal connectors designed to inhibit corrosion and extend service life, ideal for long-term reliability in harsh environments.
• Pack size: 10 terminals per pack, providing a compact, easy-to-store quantity for ongoing projects and fieldwork.
• Brand you can trust: Panduit, a globally recognized name in electrical and data connectivity, known for quality and consistency.
• Product type: Terminal connector designed for secure, quick-term termination in electrical assemblies.
• Usage versatility: Suitable for a variety of standard electrical applications where corrosion resistance and dependable crimps are required; each unit includes 1 x terminal for straightforward usage in assemblies.

Technical Details of Panduit Terminal Connector

• Packaging: 10 terminals per pack
• Type: Terminal connector
• Finish: Tin-plated to inhibit corrosion
• Material notes: Tin plating provides corrosion resistance and reliable electrical contact over time
• Brand: Panduit

How to Install Panduit Terminal Connector

Installing a Panduit Terminal Connector is straightforward when you follow standard crimping practices and select the appropriate tool for the terminal type and wire gauge. Below is a general, step-by-step approach that applies to most tin-plated terminal connectors in a 10-pack like this one. Always refer to the specific product datasheet for exact wire size compatibility and crimp specifications to ensure a proper, code-compliant termination.

• Verify compatibility: Confirm that the terminal size matches the conductor gauge you’re terminating. Using a crimp tool designed for the terminal type is essential for a reliable connection.
• Prepare the conductor: Cut the wire to the desired length and strip insulation to the recommended length for the terminal. Avoid nicking or damaging the conductor strands during stripping.
• Insert the conductor: Insert the stripped end of the wire fully into the terminal cavity. Ensure that the copper strands are fully engaged and visible at the entry point if required by the terminal design.
• Crimp securely: Use a crimping tool that matches the terminal’s crimp profile. Apply steady, uniform pressure to achieve a solid crimp connection. Avoid over-crimping or under-crimping, which can compromise conductivity and mechanical strength.
• Inspect and test: Visually inspect the crimp to confirm a proper, uniform profile. Perform a pull test or continuity check to verify a secure, low-resistance termination. Store unused terminals in their original packaging to prevent contamination.

Frequently Asked Questions

• What is the Panduit Terminal Connector? A tin-plated terminal connector from Panduit, sold in a 10-pack, designed to provide reliable, corrosion-resistant electrical terminations.
• Why is tin plating important? Tin plating helps inhibit corrosion at the contact surface, improving long-term conductivity and reducing the risk of failure in challenging environments.
• How many terminals are in a pack? Each pack contains 10 terminals, making it convenient to stock up for multiple installations.
• What does 1 x Terminal mean? It indicates that each item in the pack includes one terminal unit; the 10-pack provides ten individual terminals for use in separate connections.
• Are Panduit terminals compatible with standard wires? The terminals are designed for common electrical terminations; however, compatibility with specific wire gauges and insulation types depends on the exact terminal design and should be confirmed with the product datasheet for wire size recommendations and crimp specifications.
