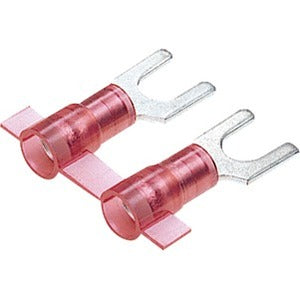

Panduit Terminal Connector – Fork Terminal with Nylon Insulation, Funnel Entry, and Tin-Plated Contact

Discover a high-performance Panduit terminal connector engineered for reliable electrical connections across automotive, industrial, and panel wiring applications. This fork terminal features durable nylon insulation, a convenient funnel entry for quick wire insertion, and a robust metal insulation grip sleeve. Designed for 22-18 AWG wires and a #10 stud size, it delivers a secure, corrosion-resistant connection that stands up to vibration, temperature changes, and harsh environments. If you’re building or repairing wiring harnesses, control panels, or equipment circuits, this terminal connector offers superior conductivity, ease of use, and long-lasting performance that professionals trust.

• Versatile 22-18 AWG wire range with #10 stud compatibility: This fork terminal is crafted to accommodate a wide range of conductor sizes, enabling you to pair it with common automotive, control panel, and industrial wiring harnesses. The precise sizing ensures a tight, low-resistance crimp and a secure mechanical seat, so the connection remains strong even in applications with vibration or frequent movement. Ideal for quick-disconnect points, power distribution lines, and instrumentation circuits where dependable performance matters.
• Nylon insulation with funnel entry and metal insulation grip sleeve: The nylon insulation provides excellent dielectric strength, abrasion resistance, and environmental protection. The funnel entry simplifies wire insertion, reducing the risk of misalignment during crimping or terminal seating. The metal insulation grip sleeve delivers a firm, uniform grip on the wire insulation, preserving insulation integrity and ensuring a clean, repeatable crimp every time for consistent electrical contact and safety.
• Tin-plated contact for corrosion resistance and longevity: Tin plating on the connector enhances corrosion resistance, improves solderability, and extends service life in challenging environments. This feature is particularly valuable for applications exposed to moisture, humidity, or outdoor elements, helping maintain conductivity and reducing maintenance or replacement costs over time.
• Secure, durable mechanical design for industrial and automotive use: The combination of a rugged fork terminal body, insulated grip sleeve, and precise crimp geometry provides a dependable mechanical and electrical connection. Whether used in control panels, automotive harnesses, or equipment assemblies, this terminal is engineered to withstand vibration, temperature fluctuations, and ongoing electrical demand while maintaining a stable, low-resistance path.
• Brand reliability and compatibility with Panduit ecosystem: Panduit is a trusted name in electrical connectivity, offering components designed to work together for consistent performance across assemblies. This terminal connector complements other Panduit terminals, lugs, and accessories, enabling you to build neat, standardized wiring solutions that are easy to install, inspect, and service in the field.

Technical Details of Panduit Terminal Connector

• Wire Range: 22-18 AWG
• Stud Size: #10
• Insulation Type: Nylon
• Entry Type: Funnel entry
• Grip Sleeve: Metal insulation grip sleeve
• Contact Finish: Tin-plated
• Connector Type: Fork Terminal
• Corrosion Resistance: Enhanced by tin plating

How to Install Panduit Terminal Connector

• Prepare your wiring: Verify the conductor size (22-18 AWG) and inspect the wire for insulation integrity. Trim any damaged insulation and straighten the conductor to ensure a clean, even insertion.
• Strip insulation to the recommended length: Use a wire stripper to remove insulation only from the portion that will be crimped, exposing the conductor for a secure connection. Do not nick the conductor strands during stripping.
• Insert into funnel entry: Align the prepared wire with the funnel entry of the fork terminal and push straight in until the conductor seats fully inside the terminal. The funnel entry design helps guide the wire and reduces the chance of misalignment during crimping.
• Crimp with the proper tool: Use a crimping tool compatible with nylon-insulated terminals. Apply steady pressure to create a secure crimp that binds the conductor to the terminal body without crushing insulation or fraying strands. Ensure the insulation grip sleeve captures the insulation cleanly for an insulative seal.
• Attach to the stud and inspect: Connect the tin-plated fork terminal to the #10 stud as required by your electrical design. Check for a firm seating, no exposed conductor, and a solid mechanical fit. Confirm continuity with a multimeter and verify there are no loose connections or stray strands.

Frequently asked questions

• Q: What wire sizes does this Panduit terminal support? A: It supports 22-18 AWG conductors, providing compatibility with a wide range of common wiring harnesses and control circuits.
• Q: What is the stud size for this terminal? A: The terminal is designed for a #10 stud, enabling reliable mounting to panels, brackets, or equipment terminals.
• Q: What insulation material is used? A: The terminal uses nylon insulation, offering good dielectric strength and abrasion resistance while protecting the conductor and reducing the risk of short circuits.
• Q: How does the funnel entry help? A: The funnel entry guides the wire into the terminal, making insertion quicker and reducing the chance of misalignment or damaged conductors during crimping.
• Q: Why is tin plating important? A: Tin plating inhibits corrosion, improves solderability, and enhances long-term conductivity in environments that may expose terminals to moisture or chemicals.
• Q: Is this terminal suitable for automotive or industrial applications? A: Yes. Its rugged construction, corrosion-resistant finish, and compatibility with standard 22-18 AWG wiring make it suitable for automotive, industrial, and control-panel wiring tasks.
